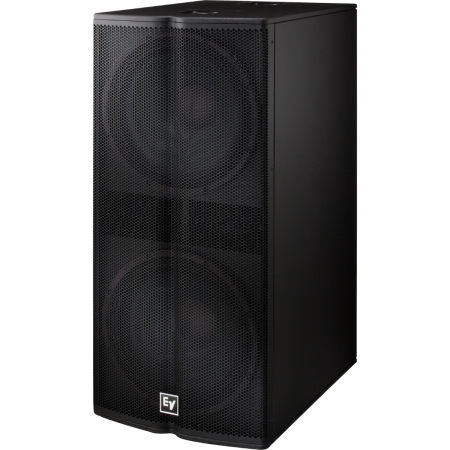

Electro-Voice TX2181

Dual 18-Inch Passive Subwoofer

The Electro-Voice TX2181 is a high-output dual 18-inch passive subwoofer designed to provide powerful low-frequency reinforcement for professional PA systems. Featuring two EVS-18S high-excursion woofers, 1000W continuous power handling, 4000W peak handling, and up to 138dB calculated maximum SPL, it is built for live sound, mobile production, venues, and other applications requiring substantial bass output.

Electro-Voice TX2181 Competitive Differences

• Dual EVS-18S 18-inch high-excursion woofers provide high-output low-frequency reinforcement
• 1000W continuous and 4000W peak power handling supports demanding professional sound applications
• 103dB sensitivity and 138dB calculated maximum SPL deliver efficient, high-output performance
• Low-distortion port design helps maintain clean bass response at high output levels
• 40 Hz to 1.5 kHz frequency range provides flexible integration with professional loudspeaker systems
• Rugged braced plywood and MDF enclosure with EVCoat finish is designed for professional use

Electro-Voice TX2181 Description

The Electro-Voice TX2181 is designed as a high-power low-frequency extension for professional sound reinforcement systems, including systems built around the TX2152. Its two 18-inch EVS-18S transducers deliver the cone area and excursion required for strong bass reproduction in live music, DJ, club, venue, and production applications.

The TX2181 provides a frequency response of 50 Hz to 160 Hz at -3dB and an extended frequency range of 40 Hz to 1.5 kHz at -10dB. Electro-Voice recommends a low-pass frequency between 80 Hz and 120 Hz, allowing the subwoofer to integrate effectively with compatible full-range loudspeakers when used with appropriate system processing.

With 103dB axial sensitivity, 1000W continuous power handling, and 4000W peak handling, the TX2181 can produce up to 138dB calculated maximum SPL. Its low-distortion port design and high-excursion drivers are engineered to maintain powerful, controlled low-frequency output under demanding conditions.

The enclosure combines plywood and MDF construction with internal bracing and a durable black EVCoat finish. A 16-gauge steel grille protects the drivers, while dual Neutrik Speakon NL4 connectors simplify connection to professional amplification systems. The TX2181 is a passive subwoofer and should be operated with a suitable processor and dedicated amplifier channel.

TX2181 Features

• Dual 18-inch passive subwoofer
• Two EVS-18S high-excursion 18-inch drivers
• 1000W continuous power handling
• 4000W peak power handling
• 103dB sensitivity at 1W/1m
• 138dB calculated maximum SPL
• Low-distortion port design
• 50 Hz to 160 Hz frequency response at -3dB
• 40 Hz to 1.5 kHz frequency range at -10dB
• Recommended 80 Hz to 120 Hz low-pass frequency
• 4-ohm nominal impedance
• Dual Neutrik Speakon NL4 connectors
• Braced plywood and MDF enclosure
• Black EVCoat finish
• 16-gauge steel grille with black powder-coat finish
• Rotatable grille logo
• Designed for use with system processing and a dedicated amplifier channel

TX2181 Specifications

• System Type: Dual 18 in passive subwoofer
• Frequency Response (-3dB): 50 Hz - 160 Hz
• Frequency Range (-10dB): 40 Hz - 1.5 kHz
• Recommended Low-Pass Frequency: 80 Hz - 120 Hz
• Axial Sensitivity: 103dB (1W/1m)
• Maximum Calculated SPL: 138dB
• Horizontal Coverage: Omnidirectional
• Vertical Coverage: Omnidirectional
• Power Handling: 1000W continuous, 4000W peak
• LF Transducers: 2x EVS-18S 18 in (457 mm) drivers
• Nominal Impedance: 4 Ohms
• Minimum Impedance: 2.9 Ohms
• Connectors: 2x Neutrik Speakon NL4
• Enclosure Material: Plywood and MDF with EVCoat
• Grille: 16-gauge steel, black powder-coated, with rotatable logo
• Dimensions: 45.4 H x 20 W x 27.2 D in (1154 x 508 x 691 mm)
• Weight: 123.5 lb (56.1 kg)
• Shipping Weight: 139 lb (63.1 kg)
