Electro-Voice ZXA1 Sub

Electro-Voice ZXA1-SUB (EV ZXA1SUB)

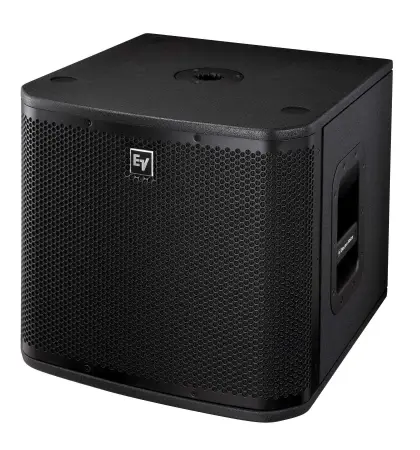

12-inch Powered Subwoofer - EV ZXA1 Sub

FYI - These are Stackable! If one pair isn't enough for you, stack a pair on each side to give you one of the most punchy, powerful, and accurate bass response you will ever hear!

Extending the ElectroVoice ZXA1's size-defying performance and sleek styling into the low-end realm, the EV ZXA1-Sub packs 700-W of self-powered punch into a low-profile wood enclosure. Match ZXA1 with ZXA1-Sub and hear just how big a small rig can sound, whether you want to add a tight thump to a DJ set or give the highs and mids some breathing room in a live performance. Order the EV ZXA1 subwoofer today!

• Integrated 700-W Class-D amplifier
• EVS-12S 12-inch woofer
• 126 dB maximum SPL
• Dual XLR stereo inputs and outputs
• Pole mount for full-range systems
• 9-ply/15-mm wood enclosure, internally braced,
  with textured paint
• 46 pounds, with integral handle for easy carrying

More Punch, Less Weight!
The ZXA1 and ZXA1-Sub from Electro-Voice offer the
best performance to weight ratio in portable sound —
massive power with a minimal footprint.

Product Highlights
9-Ply Wood Cabinet
12" Woofer
700W Class-D Amplifier
Stereo XLR I/O
100Hz High-Pass Filter
35mm Pole Socket
Integrated Handle

Type Active, front-firing
Cabinet 15mm 9-ply wood with internal bracing and black textured paint
Woofer 12" (305 mm) EVS-12S woofer
Coverage Omnidirectional
Frequency Response 44 to 116 Hz
Amplifier 700 W, Class-D
SPL 126 dB max

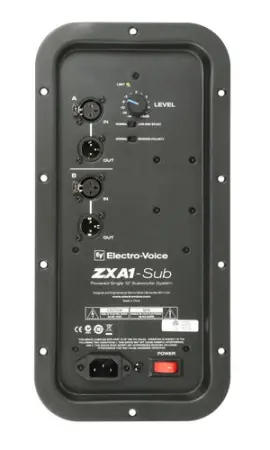

Connectors 2 x XLR inputs
2 x XLR outputs
1 x AC power input
High-Pass Filter 100 Hz, selectable
Power Requirements 90-132 VAC, 1.0 A, 50/60 Hz (1/8 power)
Dimensions (HxWxD) Not specified by manufacturer
Weight 46 pounds (20.9 kg)
