Electro-Voice TX1152

Electro-Voice TX 1152 (EV Tour X 1152)

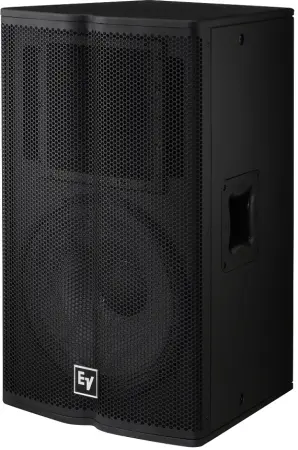

ElectroVoice TX1152 TourX 2-Way Loudspeaker (500 Watts, 1x15 in.)

Breakthrough SMX woofers achieve incredibly low levels of woofer distortion without sacrificing sensitivity.

The ElectroVoice TX1152 fits the bill when the low frequency extension of a 15-inch woofer is required, along with outstanding pattern control from the rotate-able, larger 60 x 40 degree horn. Utilizing the incredibly low distortion SMX2150 15-inch woofer, the TX1152 boasts specs normally associated with loudspeakers priced well over twice as much. The aesthetically unique Backbone grille not only looks great, but also provides greater strength and damage resistance than simple grille block designs. Proprietary ergonomically correct handles and angled input panels, integrated pole mount and (6) 3/8-inch threaded suspension inserts make the TX1152 easy to transport and employ in a variety of applications.

Tour X
ElectroVoice engineering ensures the World's biggest tours and events sound their best. The experience we've gained from 80 years spent shaping and influencing the professional sound reinforcement business makes its way into every loudspeaker we manufacture, including the new Tour X.

Tour X embodies the same ElectroVoice engineering excellence and aesthetic design found in its world class tour systems. Its form is seamlessly integrated into practical, functional elements that make a bold statement about its multi-application purpose and breakthrough performance.

A host of innovative features and patent pending designs make Tour X the most exciting loudspeaker series available today:
- Breakthrough SMX woofers achieve incredibly low levels of woofer distortion without sacrificing sensitivity
- Aesthetically unique, patent pending Backbone grille design for superior strength and damage resistance
- Steep slope analog crossovers with elliptical filters that provide up to 36dB per octave slopes
- All new proprietary EV designed ergonomic handles and angled input panels
Technical Info
Frequency Response (-3dB): 55 - 20000 Hz

Frequency Response (-10dB): 40 - 20000 Hz

Recommended High-Pass Frequency: 40 Hz

Sensitivity 1W/1m: 100 dB

Max. SPL / 1m (calc): 133 dB

Coverage (nominal -6dB) H degree: 60 degrees

Coverage (nominal -6dB) V degree: 40 degrees

Rotatable Horn: Yes

System Power Handling (continuous/program/peak): 500/1000/2000 Watts

LF Transducer: SMX2151

HF Transducer: DH3

Crossover Frequency: 1650 Hz

Nominal Impedance (Passive): 8 Ohms

Minimum Impedance: 5.6 Ohms

Enclosure Material: Plywood and MDF with EVCOAT

Suspension: (6) 3/8-inch threaded inserts

Color: Black

Flying: Yes

Input Connections: Parallel Neutrik(R) NL4

Internal Crossover: Yes

Speaker Type: Fullrange

Weight Net: 27.8 kg ( 61.29 lbs )

Dimensions (HxWxD): 776 x 446 x 446 mm (30.55 x 17.56 x 17.56 in.)
