Eliminator Dotz Tpar Sys Plus

Eliminator Lighting Dotz TPar Sys Plus | COB Technology, Portable Stage Wash

The Eliminator Lighting Dotz TPar Sys Plus is a versatile and portable stage lighting wash system perfect for smaller live stages, nightclubs, and events. This all-in-one system includes four adjustable LED pars, a lighting stand, a foot controller, an RF remote control, and convenient transport bags, making it easy to set up and operate wherever you need vibrant lighting effects.

Key Features:

• COB Technology for powerful, smooth RGB color mixing without shadows
• Ideal for stage lighting, bands, nightclubs, and mobile entertainers
• Emits less heat compared to conventional stage lighting
• RF remote control with up to 25-meter range
• Refresh rate: 3.6KHz

Specifications:

System Includes:

• 4x COB LED Par Wash Fixtures

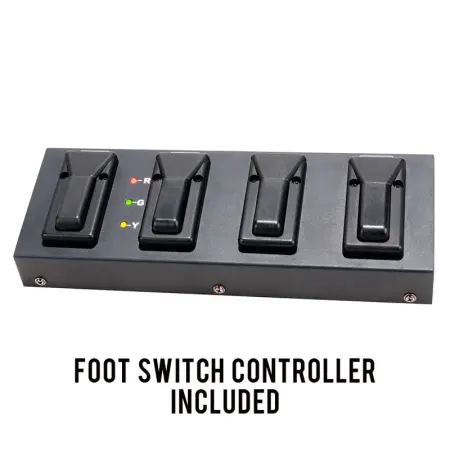

• 1x Foot Controller
• 1x Lighting Stand

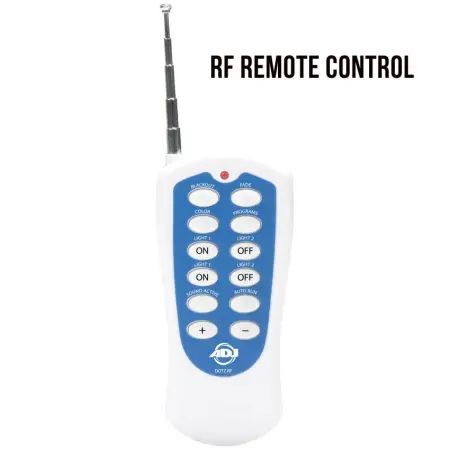

• 1x RF Remote Control
• 1x Stand Bag

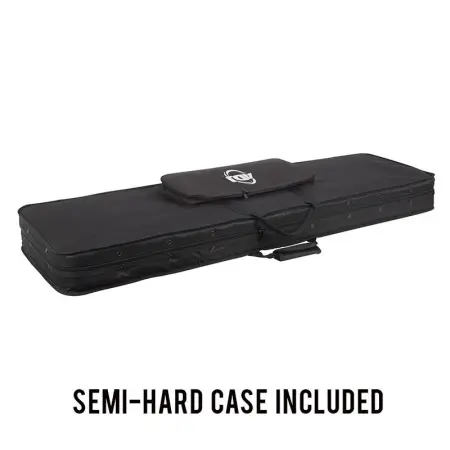

• 1x Soft case for lighting system

Source:

• Light Source: Each fixture has 1x 30-Watt TRI Color COB LEDs
• LUX @ 3M: 1345
• LED life span: Approximately 50,000 hours
• Beam angle: 90-degree

Control:

• Digital DMX Display with 4-button menu
• 4 Operational modes: Sound Active, Auto Run, Built-In Programs, DMX-512
• Stand Alone or Primary/Secondary Configuration
• Pixel Flip option changes pixel orientation
• 14 Built-in Programs
• 5 DMX Channel modes: 3, 5, 9, 12, 18 channels
• Strobe & Pulse LED Effect
• Electronic Dimming: 0-100%
• 5 selectable Dim Curves
• Foot Controller features Mode, Black Out, and Program Change

Connections:

• 3-Pin DMX In/Out
• IEC In and IEC out to daisy chain power
• 2x power plugs on rear for additional fixtures (120V = Edison, 230V = Shuko)
• 5-pin DMX In for foot controller connection

Electrical:

• Multi-voltage operation: AC 100V-240V 50/60Hz
• Power Draw: 144W Max (entire system)

Dimensions & Weight:

• Dimensions (LxWxH): 39.5” x 12.75”x 3.25” / 1000 x 320 x 82mm
• Weight: 35 lbs. / 16 kg (Fixture Bar, Stand & Controller)
• Maximum stand height: 9 feet

What’s Included:

• Includes 25-degree beam angle lens kit
• Hardware to mount two lighting fixtures on top of the light bar
• 5-pin DMX cable to connect the foot controller to the light bar
• Power Cord

Approvals / Ratings:

• CE Certified

Eliminator Lighting Dotz Tpar Sys+ (Eliminator Dotz Tpar Sys Plus Package)
