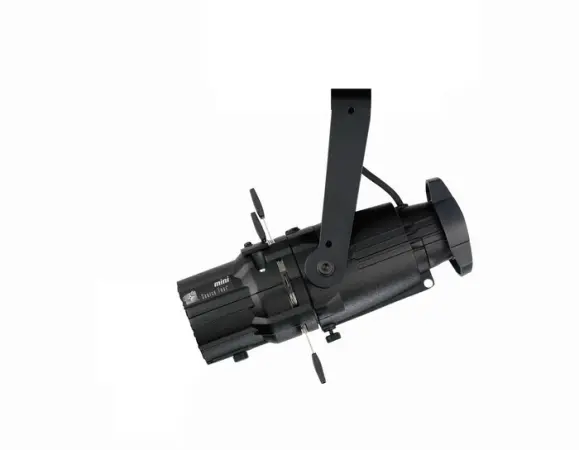

Compact LED Theatrical Lighting Fixture for Tight Spaces
ETC 4ML3080120P delivers professional-grade lighting in a compact, lightweight form factor. At just 9 inches long and 2.6 pounds, this mini LED profile fixture is ideal for museums, galleries, retail stores, restaurants, and small stages where space is limited. With exceptional optics, sharp pattern projection, and even light distribution, it maintains the quality of larger Source Four models in a much smaller package.
ETC 4ML3080120P Competitive Differences
- Compact 9" fixture length – one-third the size of a standard Source Four
- 12W LED engine with 35,000-hour lifespan
- Available in multiple finishes: black, white, silver, or custom
- Rotating barrel with ±175° range and 3-plane shutter assembly
- No internal fan – completely silent operation
- Pattern projection capabilities (E-size patterns)
- Dual accessory slots with included 70mm gel media frame
- Track, canopy, and portable mounting options
- Includes steel yoke and C-clamp for easy mounting
ETC 4ML3080120P Description
The
ETC 4ML3080120P Source Four Mini LED 3000K brings high-performance optics and design into small-scale lighting applications. With field angles of 19°, 26°, 36°, and 50° (lens tubes sold separately), it offers versatile beam control for precise lighting effects. This version ships without a lens tube, allowing users to customize it based on their specific needs.
Designed with the same engineering excellence as ETC’s full-sized fixtures, the Source Four Mini delivers sharp image projection and a bright, even field. It features a rugged die-cast aluminum body, integrated LED driver housed in a color-matched case, and a built-in insulated rear handle for easy positioning. The fixture is powered via standard Edison plug and supports both 100–120V and 230–240V AC inputs.
Thanks to its IP20 rating and 0°–104°F (0°–40°C) operating range, the 4ML3080120P is suited for indoor applications in climate-controlled environments. Its compact size and silent performance make it ideal for display lighting, architectural installations, and intimate performance spaces where noise and bulk are concerns.
4ML3080120P Features
- 12W Cree XLamp® MT-G2 EasyWhite® LED
- 35,000-hour rated life (L70)
- Available color temperature: 3000K
- 80+ CRI with red-shift available
- Field angle compatibility: 19°, 26°, 36°, 50° (lens sold separately)
- Pattern projection with E-size gobo compatibility
- ±175° rotating barrel with three-plane shutter assembly
- Insulated rear handle for safe repositioning
- Dual front accessory slots with included 70mm gel media frame
- Color-matched integrated LED driver
- Silent, fanless design
- Rugged die-cast aluminum construction
- Yoke-mounted driver and included C-clamp
- Available finishes: black, white, silver, or custom
4ML3080120P Specifications
- LED Type: Cree XLamp® MT-G2 EasyWhite®
- Color Temperature: 3000K
- CRI: 80+
- Lumen Output: 492 max (36° @ 2700K)
- Lumens per Watt: 37
- Power Consumption: 12W typical / 14W max
- Voltage Range: 100–120V / 230–240V, 50/60 Hz
- Power Cord: 75 in (190 cm) with Edison plug
- Ambient Temperature Range: 32°F–104°F (0°C–40°C)
- BTUs: 40.95 Typical / 47.77 Max
- Fan: None (silent operation)
- Pattern Size: E-size (37.5 mm with 25.4 mm image area)
- Front Accessory Slot: Dual, captive with included media frame
- IP Rating: IP20 (indoor use only)
- Construction: Die-cast aluminum (A380 grade)
- Mounting: Portable (yoke with C-clamp)
- Weight: 2.6 lb (1.2 kg)
What’s In The Box
- ETC 4ML3080120P Fixture Body (no lens tube)
- Steel yoke
- C-clamp
- Edison power cable termination
