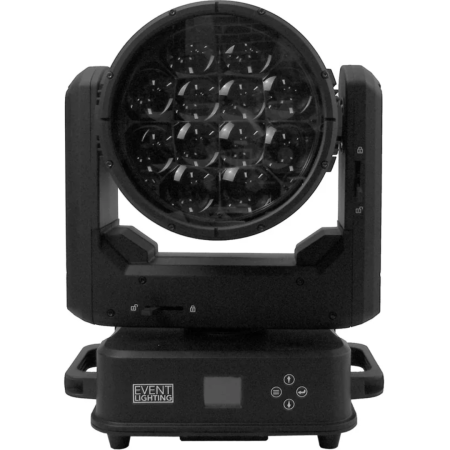

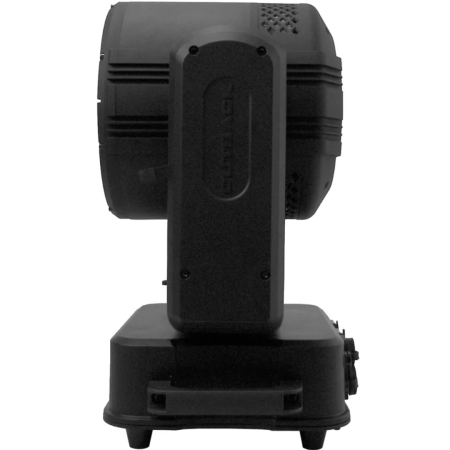

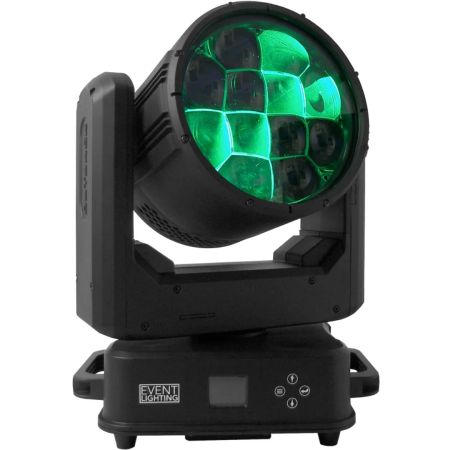

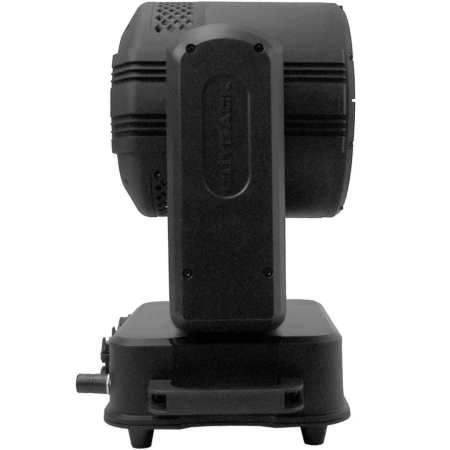

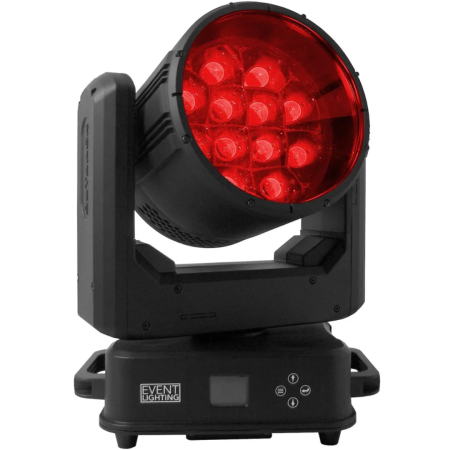

Event Lighting OUTBACK12X40W

480W IP65 Outdoor RGBW LED Zoom Wash with Pixel Control

$2,529.99 Available
$0 Tax $557 Back or Join VIP for upfront discounts.

(more)

Outdoor RGBW LED Zoom Wash with Pixel Control and High Output

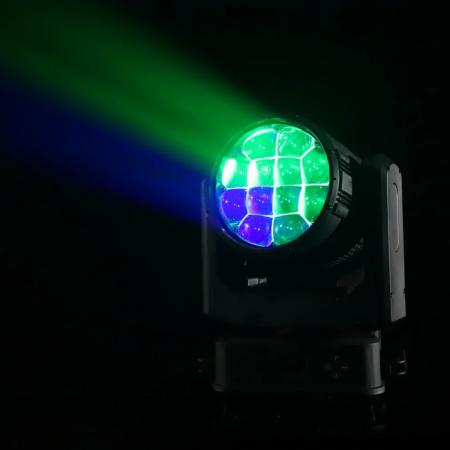

The Event Lighting OUTBACK12X40W is a compact yet powerful outdoor wash light designed for large-scale productions, architectural lighting, and live events. Featuring 12x 40W RGBW LEDs with motorized zoom, pixel control, and IP65 protection, it delivers vibrant colors, smooth washes, and reliable performance even in challenging outdoor environments.

Event Lighting OUTBACK12X40W Competitive Differences

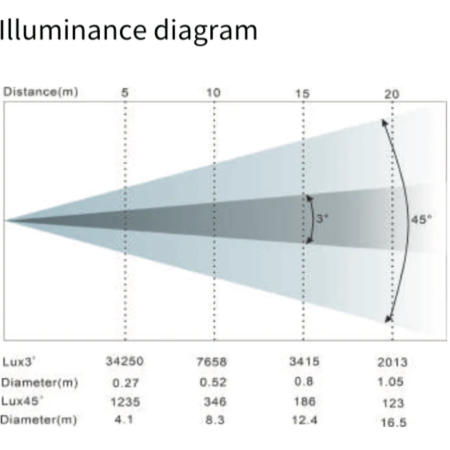

  • 12x 40W RGBW 4-in-1 LEDs with 34,250 lux @ 5m (3° beam)
  • Wide zoom range: 3° narrow beam to 45° wide wash
  • Adjustable CCT from 2,500K to 10,000K
  • Pixel control for advanced visual effects
  • IP65-rated housing for outdoor use
  • Multiple DMX channel modes: 17 / 29 / 61
  • Lightweight at only 11 kg (24.3 lbs.)

Event Lighting OUTBACK12X40W Description

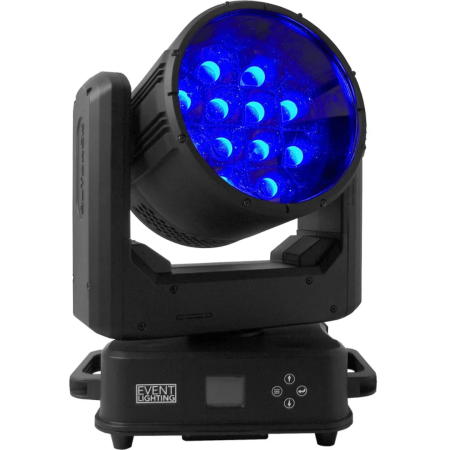

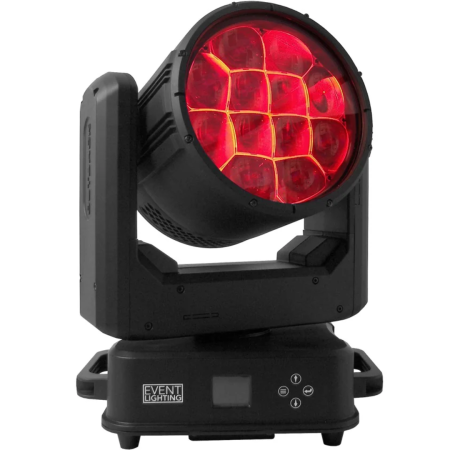

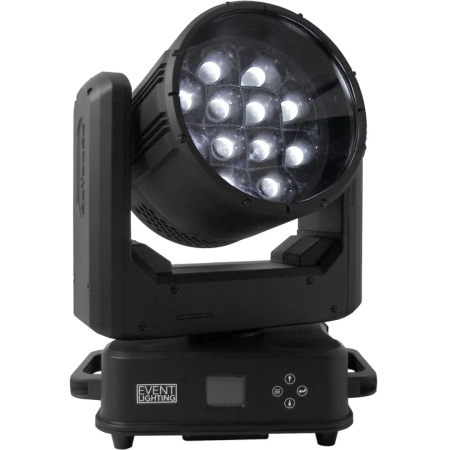

The Event Lighting OUTBACK12X40W combines power, precision, and durability in an IP65-rated outdoor moving head wash fixture. Equipped with twelve 40W RGBW 4-in-1 LEDs, it produces vibrant and consistent colors with outstanding brightness—reaching 34,250 lux at 5m with a 3° beam angle. Its motorized zoom offers extreme flexibility, shifting seamlessly from a tight 3° beam for aerial effects to a wide 45° wash for stage and architectural coverage. The adjustable color temperature range (2,500K–10,000K) makes it suitable for both warm and cool applications, while its 16-bit movement resolution ensures smooth pan and tilt operation. Pixel control capabilities allow lighting designers to program intricate chase sequences and effects, enhancing creative possibilities. With DMX, RDM, multiple channel modes, and a user-friendly TFT control panel, the OUTBACK12X40W integrates easily into professional lighting setups. Built with a rugged ABS and steel housing, automatic high-temperature protection, and True1 in/out connections, it is engineered for reliability in outdoor environments. At just 11 kg, it is lightweight and portable, making it an excellent choice for touring productions, outdoor concerts, and permanent installations.

OUTBACK12X40W Features

  • Light Source: 12x 40W RGBW 4-in-1 LEDs
  • Beam Angle: 3°–25°
  • Zoom Angle: 3°–45° (motorized)
  • Output: 34,250 lux @ 5m (3°)
  • CCT: 2,500K–10,000K
  • CRI: >70
  • LED lifespan: >20,000 hours
  • Pixel control for creative effects
  • 0–100% dimming
  • Strobe: 1–25 Hz
  • Pan: 540° / Tilt: 270° (16-bit resolution)
  • Auto repositioning
  • Control Protocol: DMX512, RDM
  • DMX Channels: 17 / 29 / 61

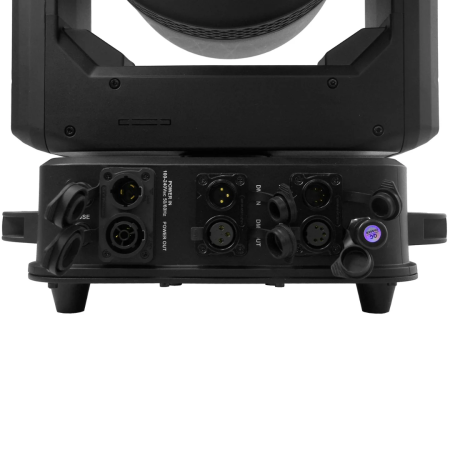

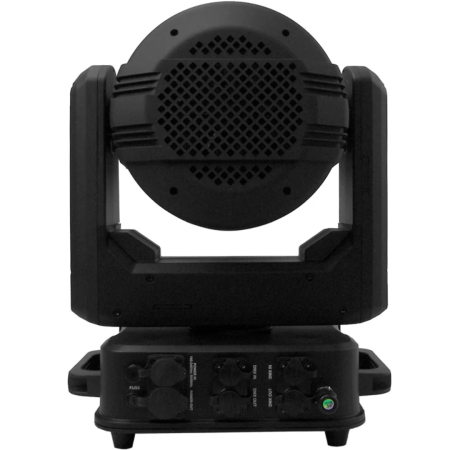

  • 3-pin & 5-pin XLR in/out
  • TFT display control panel
  • Input Voltage: 100–240V AC, 50/60Hz
  • Max Power Consumption: 560W
  • Power Connection: True1 in/out
  • Housing: ABS & steel, matte black finish
  • Automatic high-temperature protection
  • IP65 weatherproof rating

OUTBACK12X40W Specifications

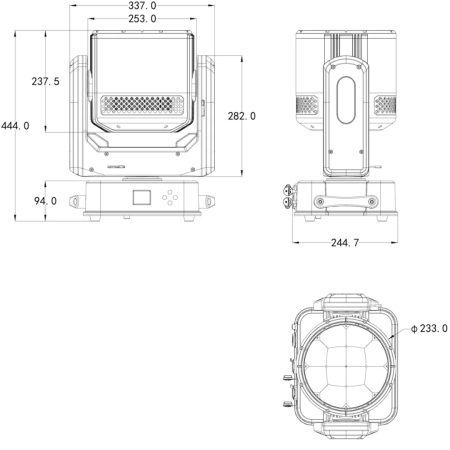

  • Dimensions (LxWxH): 13.3 x 9.4 x 18.7 in. (337 x 240 x 474 mm)
  • Net Weight: 24.3 lbs. (11 kg)

Event Lighting OUTBACK12X40W (Event Lighting OUTBACK-12X40W)

Beam Angle 3°–45° motorized zoom degrees
Frequency Response 1–25 Hz Hz
IP Rating IP65
Lumen Output 34,250 lux @ 5m (3° beam) lux
Power Rating 12x 40W W
Voltage Range 100–240V AC, 50/60Hz V
Wattage 560W max power consumption W

Brand Event Lighting
Name Event Lighting OUTBACK12X40W
Primary Category Outdoor LED Wash Light

Build Material ABS and steel housing
Dimensions 13.3 x 9.4 x 18.7 in. (337 x 240 x 474 mm) mm
Mounting Options True1 in/out connections
Weight 11 kg (24.3 lbs.) kg

Color Mixing RGBW 4-in-1 LEDs
CRI >70
DMX Channel Modes 17 / 29 / 61

Control Interfaces DMX512, RDM, TFT display control panel
Preset Storage Pixel control for advanced visual effects

12x 40W RGBW 4-in-1 LEDs with 34,250 lux @ 5m (3° beam). Wide zoom range: 3° narrow beam to 45° wide wash. Adjustable CCT from 2,500K to 10,000K. Pixel control for advanced visual effects. IP65-rated housing for outdoor use. Multiple DMX channel modes: 17 / 29 / 61. Lightweight at only 11 kg.

Light Source: 12x 40W RGBW 4-in-1 LEDs. Beam Angle: 3°–45° motorized zoom. Output: 34,250 lux @ 5m (3°). CCT: 2,500K–10,000K. CRI: >70. LED lifespan: >20,000 hours. Strobe: 1–25 Hz. Pan: 540° / Tilt: 270° (16-bit resolution). Control Protocol: DMX512, RDM. DMX Channels: 17 / 29 / 61. Input Voltage: 100–240V AC, 50/60Hz. Max Power Consumption: 560W. Housing: ABS & steel, matte black finish. IP65 weatherproof rating. Dimensions: 337 x 240 x 474 mm. Weight: 11 kg.
