Event Lighting PAR5H

LED PAR Wash Light

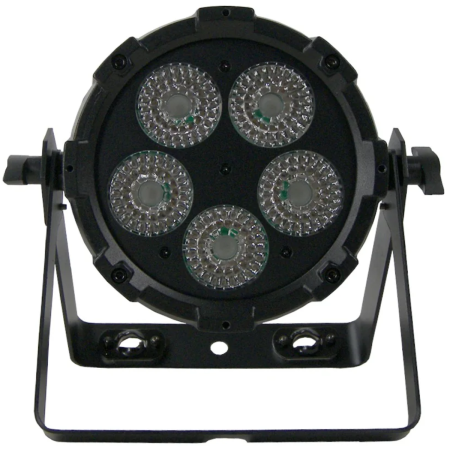

The Event Lighting PAR5H is a professional LED PAR wash light designed for powerful color output and flexible stage lighting applications. Featuring 5 x 12W RGBWA+UV 6-in-1 LEDs, this fixture produces rich, dynamic colors while maintaining efficient power consumption and reliable performance for live events, theaters, DJs, and installations.

With multiple beam angle options and professional connectivity including True1 power input/output and 5-pin DMX connections, the PAR5H integrates easily into modern lighting systems. Its rugged die-cast aluminum housing and fanless cooling design ensure quiet, dependable operation in demanding environments.

Event Lighting PAR5H Competitive Differences

• 5 x 12W RGBWA+UV 6-in-1 LEDs for expanded color mixing and UV effects
• Interchangeable beam angles including 30° standard with optional 40°, 25°, and 15°
• True1 power connections and 5-pin DMX for professional rigging setups
• Fanless cooling system for silent operation in performance environments

Event Lighting PAR5H Description

The Event Lighting PAR5H delivers powerful color wash capabilities in a compact and versatile fixture. Its RGBWA+UV LED configuration allows for a wide spectrum of colors including deeper ambers, brighter whites, and UV-enhanced effects, making it suitable for stage lighting, venue installations, and creative event production.

Users can tailor the fixture’s coverage using interchangeable beam angles. The standard 30° beam provides balanced wash coverage, while optional 40°, 25°, and 15° lenses allow the light to adapt to different stage sizes and lighting designs.

Advanced dimming control with five selectable 16-bit dimming curves ensures smooth fades and precise intensity control. Combined with adjustable strobe effects from 1–30Hz and a strong output of 1,420 lux at 2 meters, the PAR5H offers the flexibility needed for professional lighting programming.

Control options include DMX512 with multiple channel modes, auto run, sound active programs, and master/slave functionality. The integrated 4-button LCD display makes configuration simple, while optional WDMX wireless control provides additional installation flexibility.

Built from durable die-cast aluminum with a matte black finish, the PAR5H is designed for long-term reliability. The included omega bracket with quarter-turn quick locks allows fast and secure rigging for truss mounting or permanent installations.

PAR5H Features

• 5 x 12W RGBWA+UV 6-in-1 LEDs
• Standard 30° beam angle with optional 40°, 25°, and 15° lenses
• 1,420 lux output at 2 meters (full on)
• Five selectable 16-bit dimming curves
• Adjustable strobe effect from 1–30Hz
• Multiple DMX channel modes for flexible control

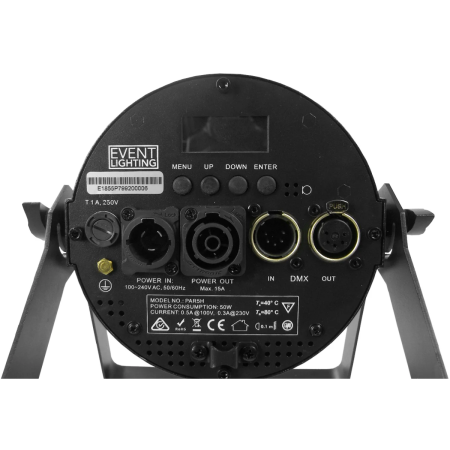

• True1 power input and output connections
• 5-pin XLR DMX input and output
• 4-button LCD control panel
• Fanless cooling for silent operation

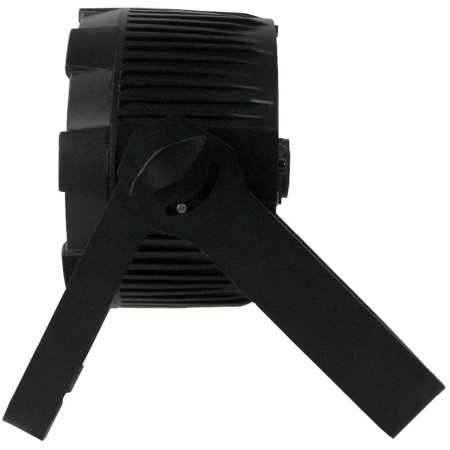

• Omega bracket with quarter-turn quick locks for fast rigging

PAR5H Specifications

• Light Source: 5 x 12W RGBWA+UV 6-in-1 LED
• Beam Angle: 30° (Optional 40°, 25°, 15°)

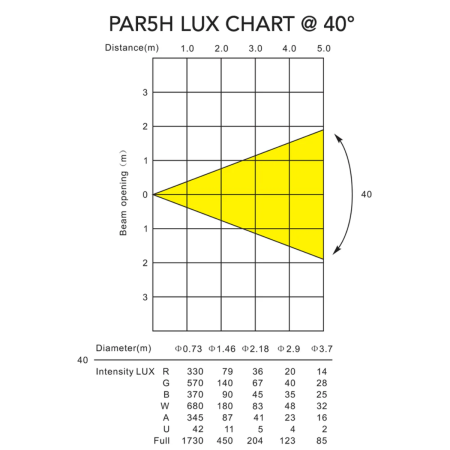

• Output: 1,420 lux @ 2.0 m (full on)
• PWM Frequency: 2,940Hz
• LED Lifespan: 50,000 hours
• Dimming: 5 x 16-bit dimming curves
• Strobe: 1–30Hz
• Input Voltage: 100–240V AC, 50/60Hz
• Power Consumption: 50W
• Power Connection: True1 In/Out
• DMX Protocol: DMX512
• DMX Channel Modes: 1 / 2 / 3 / 4W / 4A / 6 / 8 / 12 / 14
• DMX Interface: 5-pin XLR In/Out
• Display: 4-button LCD control panel
• Housing: Die-cast aluminium with matte black finish
• Cooling: Fanless
• Dimensions: 8.1 x 8.9 x 4.7 in (207 x 227 x 120 mm)
• Weight: 4.2 lb (1.9 kg)

What's In The Box

• Event Lighting PAR5H LED PAR fixture
• Omega mounting bracket with quarter-turn quick locks
• User manual

Event Lighting PAR5H (Event Lighting PAR-5H)
