Delivering optimal audience coverage with the ability to adapt to the requirements of the project at hand, HORIZON VHA represents a step forward in flexible sound reinforcement technology with exceptional sound quality. Crafted in Italy with the no-compromises manufacturing excellence for which FBT is known, the HORIZON VHA series comprises the full range VHA406A, plus two options for low-end extension in the shape of the 12” VHA112SA and 18” VHA118SA.
For low-end extension, meanwhile, the VHA112SA flyable bass-extension module is ideal for small-to-medium sized projects, seamlessly matching the VHA406A in both size and shape yet housing a single 12” B&C long excursion woofer. The bass reflex design incorporates a laminar air flow to minimize turbulence and compression, while the Class-D amplifier module drives the system with 1,200W, and includes on-board DSP with filtering, equalization and limiting.
Features:
Bass-reflex amplified subwoofer
320 High-excursion 320mm (12") Woofer B&C
Frequency response from 45Hz to 120Hz
1200Wrms class D amplifier with switching mode power supply
DSP processor with 8 presets, delay
Control panel with XLR input and link, volume, presets, delay, ground-lift
Neutrik PowerCON TRUE1 IN and LINK power connectors
Cabinet in 12mm (0.5") birch plywood with anti-scratch varnish. Handles with rubber inserts and rubber-coated sides to protect the cabinet from bumps and scratches.
Ideal for reinforcing and extending the low range of the VHA406A line array in the 45Hz - 120Hz range
Specifications:
Code: 41791
Configuration: 1 REFLEX way
Built-in amplifier LF/HF: 1200 W RMS
Built-in amplifier peak LF/HF: 2400 W
Frequency response: 45Hz - 120Hz -6dB
Low Frequency woofer: 1x12 - 3/4 coil inch
Maximum SPL cont/peak: 131.5/135 half-space dB
Dispersion: omnidirectional HxV
Input impedance: 22 Kohm
Crossover Frequency: preset dependant KHz
AC Power requirements: 640 VA
Input connector: XLR with loop
Power cord: 5 m/ft
Net Dimension (WxHxD): 612x360x397 / 24.1x14.2x15.6 mm/inch
Net Weight: 25/55.1 kg/lb
Transport Dimension (WxHxD): 695x440x475 / 27.4x17.3x18.7 mm/inch
Transport Weight: 28/ Kg/lb

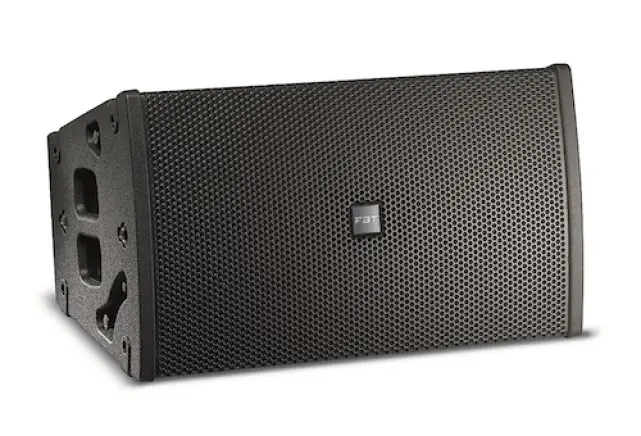

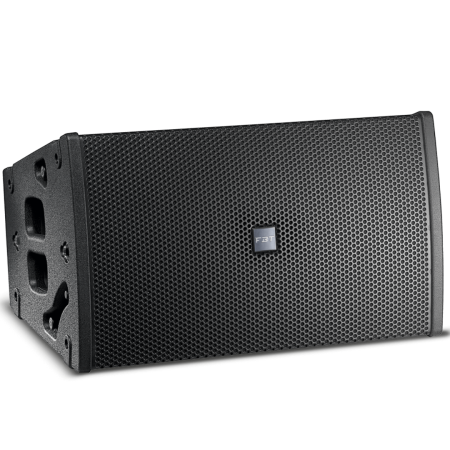

FBT HORIZON VHA112SA
(FBT HORIZON VHA 112SA)
