4-Channel DSP Matrix Amplifier for Installed Sound Systems
The
FBT MDA 4500 is a flexible and powerful 4-channel DSP amplifier designed for multi-zone installations and commercial audio systems. Offering 2000W of total output and support for both Hi-Z and Low-Z configurations, it integrates a full 4x4 matrix, onboard DSP, and a web-based control interface for complete system management without requiring external software.
FBT MDA 4500 Competitive Differences
- 4-channel class-D amplifier with integrated DSP and 4x4 routing matrix
- 2000W total power output (Lo-Z and Hi-Z compatible)
- Flexible Hi-Z 70V/100V and Lo-Z 2.7Ω/4Ω/8Ω support
- Built-in WiFi and Ethernet for browser-based remote control
- Advanced protection circuitry: short circuit, DC, under-voltage, thermal, overload
- High signal-to-noise ratio (>106dB) and low THD (<0.05%) for clean audio

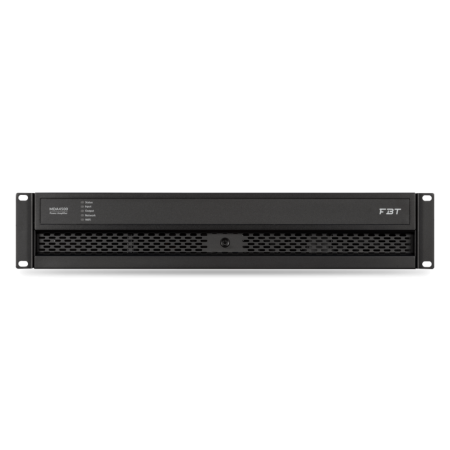

- Compact 2U rackmount design with dynamically controlled cooling
FBT MDA 4500 Description
The
FBT MDA 4500 is part of the MDA4000 Series, designed to meet the needs of small to mid-sized audio installations with high flexibility and advanced control features. Capable of delivering up to 2000W of power across 4 channels, this amplifier handles both low-impedance and high-impedance speaker loads, making it ideal for distributed systems and multi-zone applications.
With onboard DSP, a full 4x4 matrix, and an intuitive browser-based interface, users can manage routing, tuning, and monitoring directly from a smartphone, tablet, or PC—no dedicated app required. The MDA 4500 includes both wireless access point and wired LAN connectivity, offering installers remote configuration capabilities and simplified troubleshooting.
Audio performance is optimized with ultra-low distortion, flat frequency response, and an excellent signal-to-noise ratio. Designed with reliability in mind, it features comprehensive protection circuits and dynamically controlled forced-air cooling for continuous operation in demanding environments.
MDA 4500 Features
- Class-D PWM amplifier with ultra-low distortion
- 4x4 matrix with onboard DSP and custom FBT speaker libraries
- Supports 4 x Lo-Z or 2 x Hi-Z outputs
- Integrated WiFi access point and wired Ethernet for control
- Browser-based configuration—no app download required

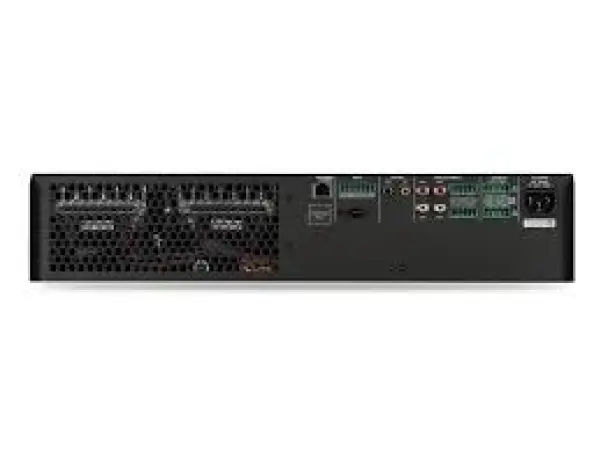

- Multiple analog and digital inputs with programmable control
- Advanced protection: short circuit, DC, thermal, under-voltage, overload
- Dynamically controlled forced-air cooling
- Universal mains operation (100V–240V, 50/60Hz)
MDA 4500 Specifications
- Output Power (Lo-Z single channels): 2x 500W @ 2.7Ω / 4Ω, 2x 250W @ 8Ω
- Output Power (Lo-Z all channels): 4x 500W @ 2.7Ω / 4Ω, 4x 250W @ 8Ω (BTL mode: 2x 1000W)
- Output Power (Hi-Z): 2x 1000W @ 70V / 100V
- Output Voltage: 5Vp / 170Vpp unloaded (Bridged: 170Vp / 340Vpp)
- Frequency Response: 20Hz–20kHz ±0.25dB
- S/N Ratio: >106dB (A-weighted, 8Ω)
- THD+N: < 0.05% (8Ω, 20Hz–20kHz)
- Power Consumption: 700W (Operating), <0.5W (Standby)
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Operating Voltage: 100V–240V, 50Hz–60Hz
- Cooling: Dynamically controlled forced-air
- Dimensions (W x H x D): 17.32" x 3.46" x 12.6" (440 x 88 x 320 mm)
- Weight: 17.4 lbs (7.9 kg)
