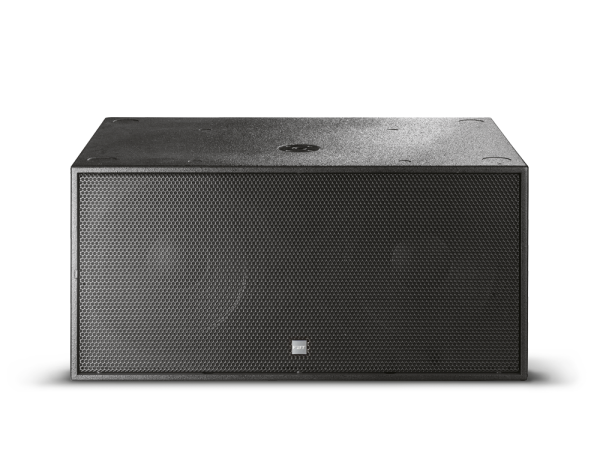

Processed Bass Reflex Active Subwoofer - 2x18" - 4000Wrms - INFINITO Network - Non Dante
The MUSE 218 SN is both Ground-breaking and Earth-shattering. Offering 4000w of subwoofer power, it is the perfect partner for the New MUSE 210 LN. Network control is powered by the incredible Infinito software with the option on DANTE (not included).
PRODUCT DESCRIPTION
MUSE 218SN is a direct radiation ground subwoofer, has two B&C 460mm long excursion speakers with 100mm voice coil and 4000W class D amplification, capable of 148.5dB SPL. The bass-reflex cabinet offers substantial energy up to 30Hz and is ideal for extending and reinforcing the low frequencies of the MUSE 210LN line array in ground-stack configuration.
It has presets to create various configurations with cardioid directivity, where some subwoofers face rearwards from the audience to acoustically cancel the sound pressure behind the cluster, obtaining a reduction of the SPL on the back by over 15dB.
The enclosure, optimised with BEM-type acoustic simulations to reduce resonance and turbulence of the ducts, is built with 18mm birch plywood with six handles and scratch-resistant paint. Reinforced front mesh with protective fabric and provision for optional four swivel-mount 4 (100mm) casters in the rear panel.
The summit of the entire project is the new 4000W amplification module with built-in TCP / IP network interface. Based on AES70 standard (OCA Alliance), it communicates with FBTs INFINITO management suite remote control software.
INFINITO is a real revolution in the FBT world that enhance the user experience in a new level of performance and simplicity! Its a software platform totally developed in house by FBT R&D team that offers real time monitoring of the internal sensors and status of connected devices, fast IN / OUT Vu-meters, controls of all the parameters, group management, warnings readout.
The MUSE 218SN is equipped with intelligent forced ventilation and OLED display with encoder for parameter setting. A highbrightness blue front LED allows remote identification of the device also in daylight.
KEY FEATURES
Ground stack direct load subwoofer
Very large area reflex port to ensure no power compression and very low port turbulence
Double 18’’ (460mm) B&C very high excursion woofer with 4’’ (100mm) voice coil
Frequency Response from 30Hz @-6dB
Class D amplifier delivering 4000W RMS with switch mode power supply
Network interface TCP/IP – OCA70 compatible
EtherCon RJ45 input and output for daisy-chain
OLED DISPLAY and ENCODER with PUSH for easy onboard control
DANTE audio streaming with 24bit at 48-96KHz on TCP/IP network
0.7’’ (18mm) birch plywood enclosure, scratch resistant black paint, 6 handles and heavy duty metal grille with synthetic protection cloth
M20 top mount stand socket • Optional 4 swivel-mount 4’’ (100mm) casters
Low frequency extension cabinet for the MUSE 210LND line array for ground stacked configurations
FBT MUSE218SA
(FBT Muse 218 SA SND SN)
