Outdoor Line Array Speaker for Powerful, IP55 Sound at 1,000 Watts
The

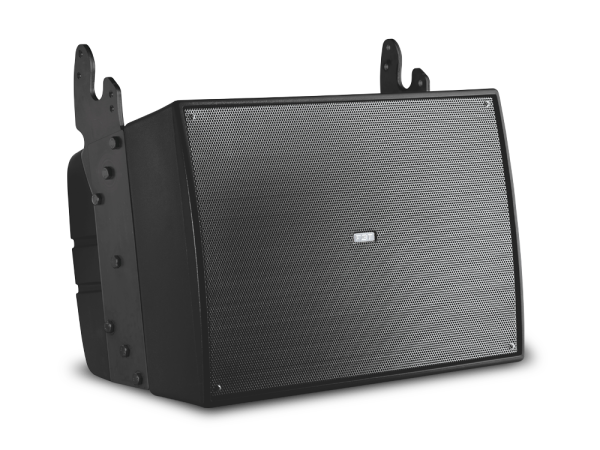

FBT SHADOW 142L is a high-performance weatherproof speaker system designed for professional audio applications, both indoors and outdoors. Featuring a horn-loaded design for smooth frequency response and high efficiency, it delivers exceptional music reproduction and clear, intelligible speech. Its durable, UV-protected enclosure and IP55 weather resistance make it perfect for stadiums, arenas, convention centers, and other installations requiring long-throw, full-range sound.
FBT SHADOW 142L Competitive Differences
- 14" woofer with a 3" coil for deep, impactful low frequencies.
- High-frequency section with 2 x 1.4” drivers and a 2.5” coil for clear, wide-dispersion sound.
- Durable molded polyethylene enclosure with UV protection for outdoor reliability.
- Water-stop grill featuring three layers of protection, IP55 weather resistance.
- 100° x 15° coverage pattern for broad, even sound distribution.
- Adjustable angle options: 7.5° or 15° for precise installation.
FBT SHADOW 142L Description
The

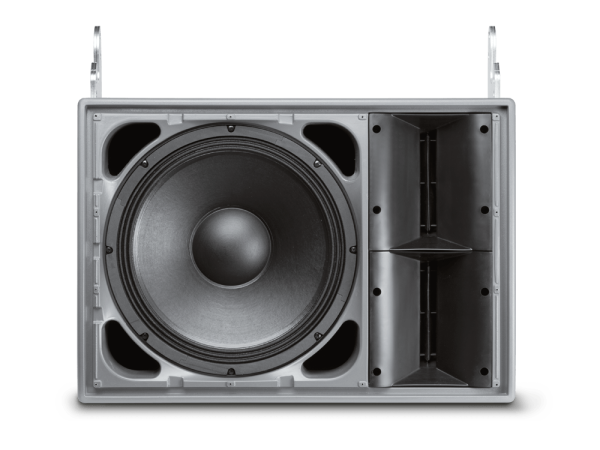

FBT SHADOW 142L is engineered for demanding professional audio applications, offering superior sound clarity and durability. Its line array configuration ensures long-throw sound coverage, making it ideal for large venues such as arenas, stadiums, and convention centers. The system features a robust 14” woofer with a 3” coil for impactful bass and a constant directivity horn loaded with two 1.4” drivers for smooth, wide dispersion.
Constructed with a sturdy polyethylene enclosure, it offers full UV protection and an IP55 weatherproof rating, ensuring reliable performance in various environments. The SHADOW 142L's adjustable angle and versatile mounting options make it a flexible solution for a wide range of professional audio installations.
SHADOW 142L Features
- Two-way horn-loaded speaker system for high efficiency.
- 14” woofer with a 3” coil for robust low-frequency response.
- High-frequency section with 2 x 1.4” drivers and 2.5” coil for clear, high-output sound.
- 100° x 15° horizontal and vertical coverage for even sound distribution.
- Adjustable angle options: 7.5° or 15° for flexible placement.
- Weather-resistant IP55-rated enclosure with water-stop grill and UV protection.
- Durable molded polyethylene construction.
SHADOW 142L Specifications
- Configuration: 2-way system.
- Power Handling: 1000W RMS, 2000W peak.
- Frequency Response: 60 Hz – 20 kHz (-6 dB).
- Maximum SPL: 126.5 dB continuous, 137 dB peak.
- Nominal Impedance: 8 ohms.
- Dispersion: 100° x 15° (HxV).
- Inputs: 2 x Amphenol LTW 4-pole connectors.
- Dimensions (WxHxD): 24.41" x 16.92" x 16.33" (615 x 430 x 415 mm).
- Weight: 83.7 lbs (38 kg).
- Shipping Dimensions (WxHxD): 28.14" x 20.86" x 20.27" (715 x 530 x 515 mm).
- Shipping Weight: 88.2 lbs (40 kg).
What's In The Box
- FBT SHADOW 142L Speaker System.
- Installation and operation manual.
FBT USA Shadow 142-L
(FBT 2-way all-weather line array)
