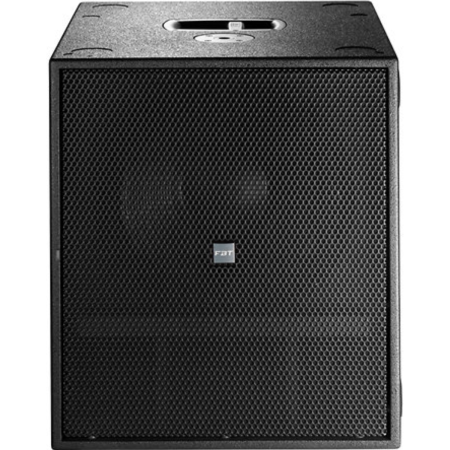

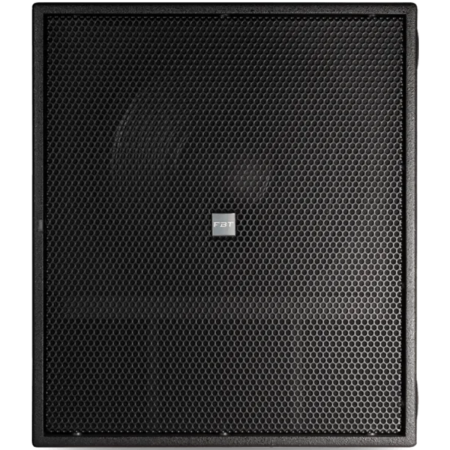

FBT VHA 118 SND

Powered PA Subwoofer

FBT VHA 118 SND is a processed bass-reflex active subwoofer engineered to deliver deep, controlled low-frequency performance for professional live sound systems. Built around a high-excursion 18-inch woofer and a powerful 2500W RMS Class-D amplifier, it provides impactful bass response down to 30Hz and integrates seamlessly with Horizon VHA systems.

FBT VHA 118 SND Competitive Differences

• 18-inch high-excursion woofer with 4-inch voice coil for powerful low-frequency output
• 2500W RMS Class-D amplifier with DSP processing and six selectable presets
• Integrated Dante digital audio networking with 24-bit 48–96kHz streaming
• TCP/IP AES70 network interface with remote control via INFINITO System Management Suite
• Heavy-duty 18mm birch plywood enclosure with integrated handles and caster-ready design

FBT VHA 118 SND Description

The FBT VHA 118 SND is designed to deliver extended and powerful low-frequency reinforcement for professional sound reinforcement systems. At its core is a high-excursion 18-inch woofer with a 4-inch voice coil, engineered to produce deep bass response reaching down to 30Hz while maintaining clarity and accuracy at high output levels.

A built-in 2500W RMS Class-D amplifier powers the system and works with integrated DSP processing to optimize performance in various configurations. Six selectable presets adjust EQ, filtering, and cardioid settings, allowing the subwoofer to be tuned for different system setups and acoustic environments.

For advanced system integration, the VHA 118 SND includes a TCP/IP network interface based on the AES70 standard and supports remote management through the INFINITO System Management Suite. It also features Dante digital audio networking, enabling 24-bit audio streaming at 48–96kHz from compatible Dante devices for efficient signal distribution across professional audio networks.

The cabinet is built from durable 18mm birch plywood and finished with a scratch-resistant black coating for long-term reliability in touring and installed environments. A powder-coated steel grille with internal acoustic fabric protects the transducer while maintaining acoustic transparency, and the system is equipped with intelligent forced ventilation to ensure consistent amplifier performance.

VHA 118 SND Features

• Active bass-reflex subwoofer design
• 18-inch high-excursion woofer with 4-inch voice coil
• 2500W RMS Class-D amplifier with switching power supply
• Six DSP presets including cardioid configurations
• Dante audio networking with 24-bit 48–96kHz digital streaming
• TCP/IP network interface with AES70 compatibility
• Remote control via INFINITO System Management Suite
• OLED display with encoder for onboard control
• XLR input and output connectors
• High-brightness blue front LED for remote identification
• Intelligent forced ventilation cooling system
• 18mm birch plywood cabinet with scratch-resistant finish
• Powder-coated steel grille with protective acoustic fabric

VHA 118 SND Specifications

• Configuration: Active Bass-Reflex Subwoofer
• Amplifier Power: 2500W RMS
• Amplifier Peak Power: 5000W
• Frequency Response: 30Hz (preset dependent)
• Low Frequency Woofer: 18-inch with 4-inch coil
• Maximum SPL (Cont/Peak): 137 / 143 dB half-space
• Dispersion: Omnidirectional
• Input Impedance: 22 kOhm
• Input Connector: XLR In / Out
• AC Power Requirements: 650W
• Power Cord Length: 16.4 ft (5 m)
• Dimensions: 24 x 28 x 28.3 in (611 x 711 x 720 mm)
• Net Weight: 134.9 lb (61.2 kg)
• Transport Dimensions: 31.8 x 35.4 x 27.9 in (810 x 900 x 710 mm)
• Transport Weight: 166.4 lb (75.5 kg)

FBT VHA 118 SND (FBT VHA-118-SND)
