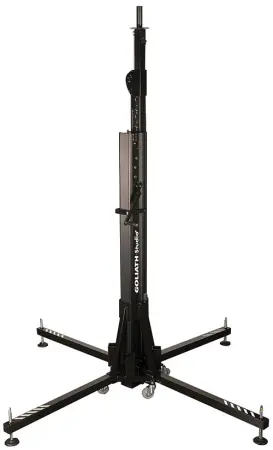

Global Truss DT-PRO5200

16.4ft Heavy-Duty Smart Crank Stand

The Global Truss DT-PRO5200 is a heavy-duty smart crank stand designed for professional stage lighting, truss support, and live event production applications. Featuring a maximum working height of 16.4 feet (5 meters) and a 440 lb (200 kg) load capacity, this stand uses a direct-drive rack-and-pinion lifting system for controlled elevation without traditional winch cables. Its aluminum construction, four steel outriggers with adjustable feet, and integrated transport wheels provide a practical lifting solution for event production companies, lighting technicians, and professional staging applications.

Global Truss DT-PRO5200 Competitive Differences

• 440 lb Load Capacity: Supports loads up to 440 lbs (200 kg) for compatible professional lighting and truss configurations.
• 16.4ft Maximum Height: Extends to a working height of 16.4 feet (5 meters) for elevated staging and lighting applications.
• Direct-Drive Rack-and-Pinion System: Eliminates traditional lifting cables while raising the telescoping sections evenly and simultaneously.
• Automatic Elevation Safety System: Incorporates a safety mechanism designed for controlled lifting and positioning without a separate manual locking procedure.
• Four Adjustable Steel Outriggers: Features an approximately 6.56ft (2m) deployed footprint with adjustable feet for stable positioning on suitable surfaces.
• Three Telescoping Sections: Provides controlled vertical extension for a variety of professional production applications.
• Integrated Transport Wheels: Built-in wheels and a removable crank handle simplify movement, setup, and storage.
• Built-In Bubble Level: Helps users check stand alignment during setup.

Global Truss DT-PRO5200 Description

The Global Truss DT-PRO5200 is designed for demanding stage and event production environments requiring elevated support for professional lighting and compatible truss equipment. With a maximum lifting capacity of 440 lbs (200 kg) and an extended height of 16.4 feet (5 meters), this smart crank stand provides a versatile solution for concerts, corporate events, theatrical productions, exhibitions, and mobile entertainment systems.

Unlike conventional cable-driven crank stands, the DT-PRO5200 uses a direct-drive rack-and-pinion elevation system. This mechanism raises the three telescoping sections evenly and simultaneously, providing controlled height adjustment while eliminating the traditional lifting cable. An integrated automatic safety system supports secure positioning during operation, while the removable crank handle provides convenient manual control.

The stand combines an aluminum telescoping structure with four steel outriggers equipped with adjustable feet. When deployed, the outriggers create an approximately 6.56-foot (2-meter) footprint, providing a wide support base for compatible equipment. A built-in bubble level helps technicians verify vertical alignment during installation, an important consideration for safe and consistent load distribution.

For transportation and storage, the Global Truss DT-PRO5200 features built-in transport wheels, removable outriggers, and a compact folded configuration. Its 6.08-foot (1,855mm) listed folded height makes it easier to plan storage and transportation requirements between events. A 35mm male adapter provides a mounting interface for compatible accessories and equipment.

Ideal for professional lighting companies, truss installers, touring productions, and event rental operations, the DT-PRO5200 combines substantial lifting capacity with a mechanically driven elevation system. All lifting operations should follow the manufacturer's instructions, approved load configurations, and applicable rigging safety requirements.

DT-PRO5200 Features

• Heavy-duty smart crank stand for professional staging and lighting applications
• Maximum load capacity of 440 lbs (200 kg)
• Minimum operating load of 22 lbs (10 kg)
• Maximum working height of 16.4 feet (5 meters)
• Direct-drive rack-and-pinion elevation mechanism
• Cable-free lifting design eliminates traditional winch cables
• Three telescoping modules for controlled height adjustment
• Simultaneous elevation of telescoping sections
• Automatic elevation safety system
• Four steel outriggers with adjustable feet
• Approximately 6.56ft (2m) deployed footprint
• Aluminum telescoping construction
• Built-in bubble level for alignment checks
• Removable crank handle
• Integrated transport wheels for easier movement
• 35mm male output adapter for compatible mounting accessories
• Designed for professional truss and stage lighting support
• Suitable for concerts, live productions, theaters, and corporate events
• Compact folded configuration for transportation and storage

DT-PRO5200 Specifications

• Product Type: Smart Crank Stand
• Model: DT-PRO5200
• Manufacturer SKU: DTCS0040
• Maximum Load Capacity: 440 lbs (200 kg)
• Minimum Operating Load: 22 lbs (10 kg)
• Maximum Working Height: 16.40 ft (5,000 mm)
• Listed Folded Height: 6.08 ft (1,855 mm)
• Foot Extension Diameter: 6.56 ft (2,000 mm)
• Lifting Mechanism: Direct-Drive Rack and Pinion
• Telescoping Modules: 3
• Base Configuration: 4 Steel Outriggers with Adjustable Feet
• Main Construction Material: Aluminum
• Output Adapter: 35mm Male
• Built-In Bubble Level: Yes
• Removable Crank Handle: Yes
• Transport Wheels: Yes
• Automatic Elevation Safety System: Yes
• Listed Weight: 110 lbs (50 kg)
