Versatile 6-Way Universal Junction Block for Truss Systems
The

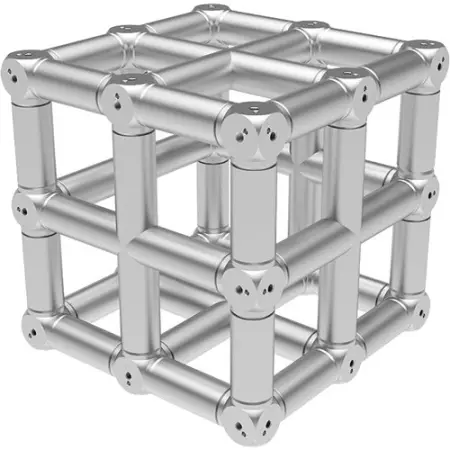

Global Truss DT46-UJB is a high-quality 6-way universal junction block designed to provide maximum versatility for truss structures. With durable construction, precision engineering, and compatibility with a variety of trussing setups, this junction block is ideal for stage, event, and installation applications.
Global Truss DT46-UJB Competitive Differences
- High-strength aluminum construction for durability and reliability
- 6-way connection design for versatile truss configurations
- 2 sides of connection hardware included for easy installation
- Standard 2" (50mm) outer diameter tubing for compatibility
- 1" (25.4mm) diagonal bracing for additional support
- 0.12" (3mm) wall thickness for enhanced strength
- 15 3/4" (400mm) overall width
Global Truss DT46-UJB Description
The
Global Truss DT46-UJB is a universal truss junction block designed to connect multiple truss sections efficiently. With six-way connectivity, it allows for complex truss designs in professional staging, rigging, and event setups. The 2" (50mm) outer diameter tubing ensures compatibility with a wide range of truss systems, while the 1" (25.4mm) diagonal bracing adds extra support. Constructed from high-grade aluminum, this junction block is built to withstand the demands of live productions, trade shows, and installations.
DT46-UJB Features
- 6-way universal junction block for trussing systems
- Durable aluminum construction
- 2" (50mm) outer diameter tubing
- 1" (25.4mm) diagonal bracing for added support
- 0.12" (3mm) wall thickness for enhanced durability
- 15 3/4" (400mm) overall width
- Includes 2 sides of connection hardware
DT46-UJB Specifications
- Overall Width: 15 3/4" (400mm)
- Outer Diameter Tubing: 2" (50mm)
- Diagonal Bracing: 1" (25.4mm)
- Wall Thickness: 0.12" (3mm)
- Material: High-grade aluminum
GLOBAL TRUSS DT46 UJB
(Global Truss DT46 Universal Junction Block)
