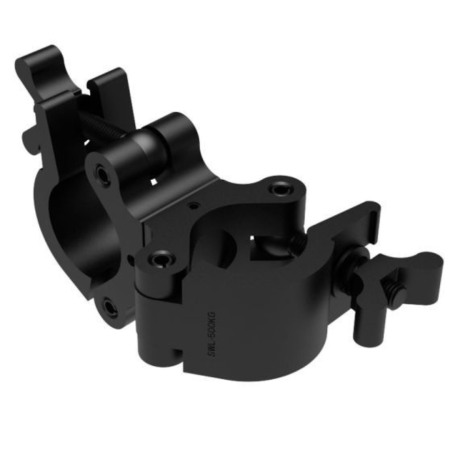

Global Truss PRO SWIVEL CLAMP BLK

Heavy-Duty Dual Swivel Clamp with 360-Degree Rotation

The PROSWIVEL CLAMP BLK is a robust, heavy-duty dual swivel clamp designed for secure and flexible truss mounting. With 360-degree rotation and a locking mechanism that can secure it at 90 degrees, this clamp offers exceptional versatility for professional lighting setups. Constructed with durable materials and finished with a matte black powder coating, the PROSWIVEL CLAMP BLK is ideal for use with F31, F32, F33, F34, and DT44P truss systems. Its high load capacity of up to 1100 lbs (500 kg) ensures reliable performance in demanding environments.

PROSWIVEL CLAMP BLK Competitive Differences

• 360-Degree Rotation: Allows complete flexibility in mounting, and can be locked at 90 degrees for specific applications.
• Heavy-Duty Load Capacity: Supports up to 1100 lbs (500 kg), making it suitable for large and heavy truss installations.
• Matte Black Powder Coating: Provides a sleek finish while enhancing durability and resistance to wear and tear.

PROSWIVEL CLAMP BLK Features

• Compatible with F31, F32, F33, F34, and DT44P truss systems
• Locking roll pin for secure mounting at 90 degrees
• 48mm to 51mm tubing diameter compatibility
• Matte black powder-coated finish for a professional look
• 50mm profile width for optimal stability
• Durable and lightweight design at 2.25 lbs

Specifications

• Minimum Tubing Diameter: 48mm
• Maximum Tubing Diameter: 51mm
• Max. Load Capacity: 500kg / 1100lbs
• Profile Width: 50mm
• Locking Roll Pin Dimensions: 48mm L x 6mm Diameter
• Finish: Matte Black Powder Coating
• Unit Weight: 2.25 lbs
• SKU: CLM0586

Global PROSwivel Calmp Black (Global Truss Swivel Clamp Pro BLK)
