F34 Square Truss Corner
The

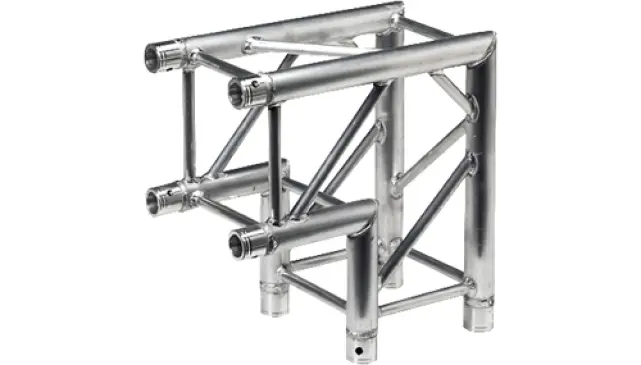

Global Truss SQ-4121 is a 2-way 90-degree corner designed for the F34 truss system. This structural component allows precise right-angle connections in lighting grids, frame designs, and modular truss structures while maintaining strength and reliability.
Global Truss SQ-4121 Competitive Differences
- Forms clean 90-degree corners in two directions
- Compatible with standard F34 square truss components
Global Truss SQ-4121 Description
The
Global Truss SQ-4121 is a professional-grade 2-way 90° corner that allows truss structures to bend cleanly at right angles in both vertical and horizontal planes. Designed to work seamlessly with the F34 square truss system, it's ideal for creating lighting grids, trade show booths, or stage backdrops.
Constructed with 2-inch (50mm) outer diameter tubing and 3/4-inch (20mm) diagonal bracing, this corner piece ensures high structural integrity. The 2mm wall thickness provides the durability needed for mobile and fixed installations alike, while its 14 lb weight keeps it manageable during setup.
This unit's compact footprint—measuring 19.68" x 19.68" x 11.41"—makes it a flexible addition to truss layouts that require precise angles without excessive space usage.
Model Features
- 2-way 90-degree corner for F34 truss configurations
- Made from durable aluminum with precision welds
- Ideal for structural frames, lighting grids, and displays
- Diagonal bracing ensures long-term stability
Model Specifications
- Truss Type: F34 Square Truss
- Corner Type: 2-Way 90°
- Outer Diameter Tubing: 2 in (50 mm)
- Diagonal Bracing: 3/4 in (20 mm)
- Wall Thickness: 0.08 in (2 mm)
- Overall Width: 11 7/16 in (290 mm)
- Dimensions (L x W x H): 19.68 x 19.68 x 11.41 in
- Unit Weight: 14 lbs (6.36 kg)
