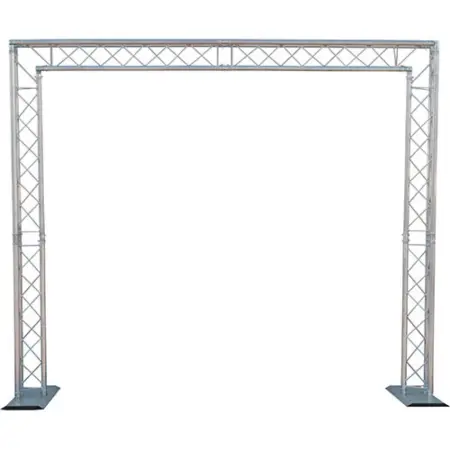

Portable Goal Post Truss System for Stage, DJ, and Event Setups
The
Global Truss F230131 is a compact and durable goal post truss system, ideal for DJs, stage lighting setups, and trade show displays. Designed for quick setup and portability, this system offers a strong and stable frame with professional appearance, supporting up to 400lbs of evenly distributed load.
Global Truss F230131 Competitive Differences
- 8.25ft wide x 7.81ft high exterior frame – perfect for standard backdrops and signage
- Lightweight yet strong aluminum construction with only 70lbs total weight
- 400lb load capacity evenly distributed – supports lighting, banners, and effects
- Expandable design – width and height can be increased using additional F23 trussing
- Quick and easy to assemble – ideal for mobile DJs and production crews
Global Truss F230131 Description
The
F230131 is part of the F23 series from Global Truss, known for its reliable, compact truss solutions. This 8ft x 8ft goal post truss system is engineered for portability without sacrificing strength. Built with 220mm (8 5/8") outer diameter aluminum trussing and 35mm (1-3/8") main chords, it’s an excellent solution for mounting lighting and visual elements in a compact footprint.
With an exterior width of 8.25 feet and height of 7.81 feet, it provides generous clearance for performers and gear, while the 6.96ft interior width and 7.10ft height give ample space for banners, lighting bars, or LED walls. The system is fully expandable using additional F23 components, allowing you to customize your rig as needed.
F230131 Features
- Portable goal post style truss system
- Durable aluminum construction
- Compact F23 trussing – 220mm (8 5/8") outer diameter
- Main chords: 35mm (1-3/8") OD with 1/3" bracing
- Expandable using compatible F23 truss components
- Ideal for mobile DJs, stage use, exhibits, and event production
F230131 Specifications
- Exterior Dimensions: 8.25ft W x 7.81ft H
- Interior Dimensions: 6.96ft W x 7.10ft H
- Base Dimensions: 10.5" W x 46.25" L x 0.75" H
- Truss Outer Diameter: 220mm (8 5/8")
- Main Chords: 35mm (1-3/8") OD x 1/3" Bracing
- Load Capacity: 400lbs (evenly distributed)
- Unit Weight: 70lbs
Global Truss Sys
(Global Truss 8ft Truss System F23)
