Gravity Stands GPADSET1

Pipe and Drape Adapter and Crossbar Set

The Gravity Stands GPADSET1 converts a standard speaker or lighting stand with a 35mm pole into an adjustable pipe and drape system. Its snap-in adapter and tiltable telescopic crossbar enable fast, flexible setup for room dividers, backdrops, walkway boundaries, stage areas, and exhibition spaces without requiring a ladder or additional assistance.

Gravity Stands GPADSET1 Competitive Differences

• Works with commonly used speaker and lighting stands featuring 35mm poles
• Snap-in crossbar attachment includes an unlocking mechanism for fast and secure assembly
• Four mounting positions allow up to four telescopic crossbars to connect to one adapter
• Telescopic crossbar adjusts from 1.9 to 3.5 meters for customizable system widths
• Tilting joints at both ends simplify solo installation without a ladder
• Integrated hook-and-loop strip supports attachment of an optional Molton curtain

Gravity Stands GPADSET1 Description

The Gravity Stands GPADSET1 provides a practical way to build a pipe and drape system using an existing speaker or lighting stand. The set combines the GPADA four-way adapter with the GPADT telescopic crossbar, allowing event professionals to create partitions, suspended backdrops, temporary walls, and defined walkways with minimal setup time.

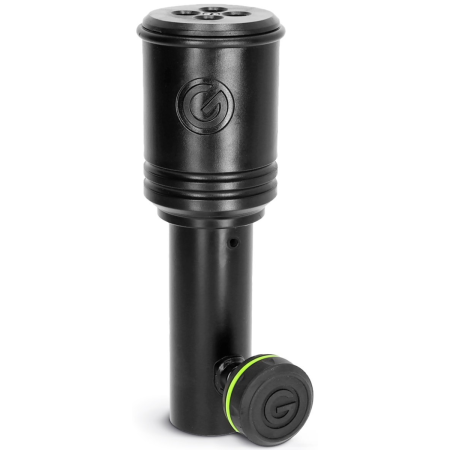

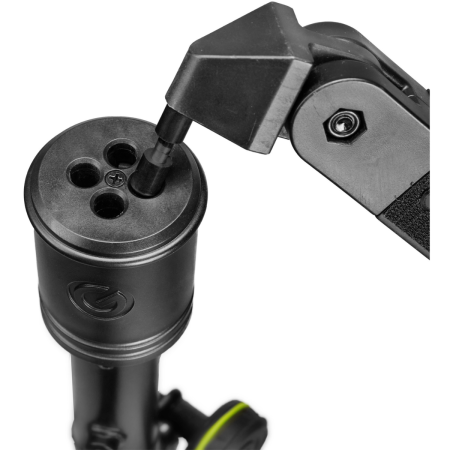

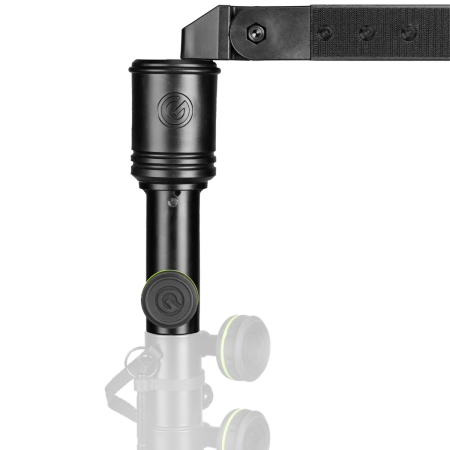

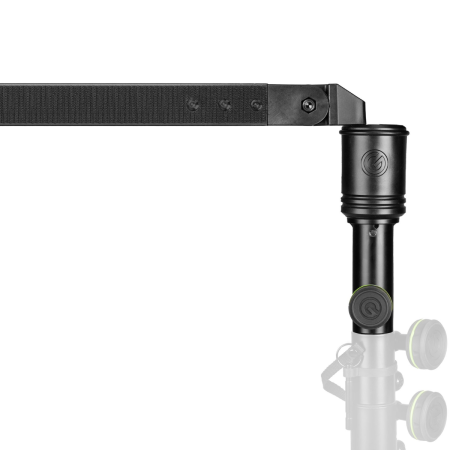

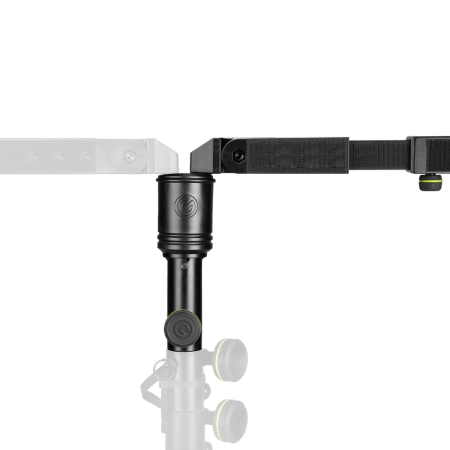

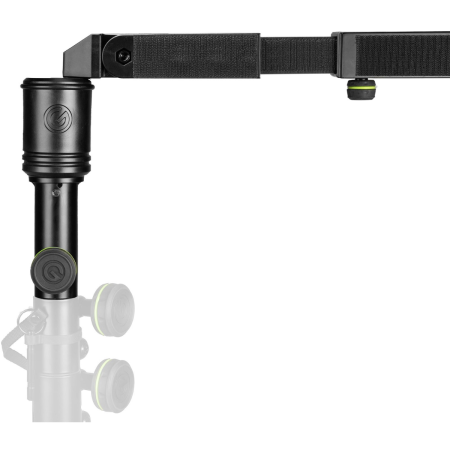

The GPADA adapter is constructed from steel and plastic and is designed for stands with 35mm poles. Four mounting holes on top of the adapter allow as many as four compatible telescopic crossbars to be attached, supporting straight runs, corners, and multi-directional layouts. Its snap-in locking system secures the crossbar mounting bolts and includes a release mechanism for convenient disassembly.

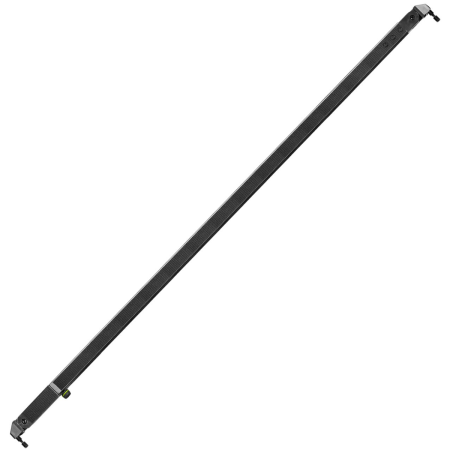

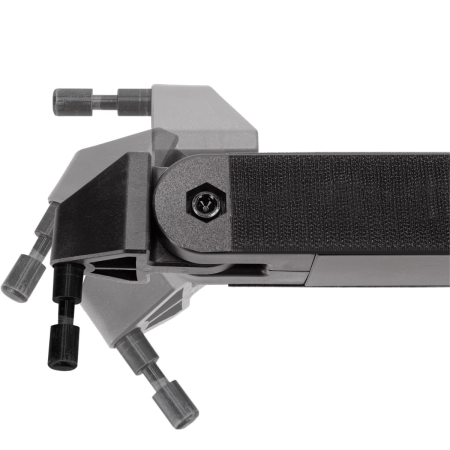

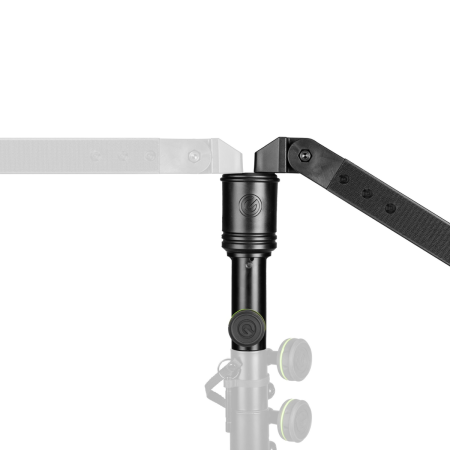

The powder-coated aluminum GPADT crossbar adjusts from 1.9 to 3.5 meters, providing flexible spacing between stands. Tilting joints at both ends make it easier for one person to connect the crossbar from ground level and raise the complete assembly without using a ladder.

A hook-and-loop strip runs across the crossbar for attaching an optional Molton curtain. The curtain is not included, allowing the GPADSET1 to serve as a modular foundation for customized event, theater, trade-show, and production layouts.

GPADSET1 Features

• Pipe and drape adapter and telescopic crossbar set
• Compatible with standard stands featuring 35mm poles
• Four-way adapter supports up to four telescopic crossbars
• Snap-in crossbar locking system with release mechanism
• Adjustable crossbar length from 1.9 to 3.5 meters
• Tilting joints at both ends of the crossbar
• Supports solo assembly without a ladder
• Integrated hook-and-loop strip for an optional Molton curtain
• Steel and plastic adapter construction
• Powder-coated aluminum crossbar construction
• Black finish
• Curtain not included

GPADSET1 Specifications

• Product Type: Stand and tripod accessory
• System Type: Pipe and drape
• Compatible Stand Pole Diameter: 35mm
• Adapter Internal Diameter: 36mm
• Maximum Crossbars per Adapter: 4
• Crossbar Adjustment Range: 74.8–137.8 in (1900–3500 mm)
• Crossbar Maximum Load: 44.1 lb (20 kg)
• Adapter Material: Steel and plastic
• Crossbar Material: Aluminum
• Crossbar Coating: Powder coated
• Crossbar Tiltable: Yes
• Color: Black
• Adapter Weight: 1.38 lb (0.625 kg)
• Crossbar Weight: 8.05 lb (3.65 kg)
• Total Set Weight: 10.14 lb (4.6 kg)

What's In The Box

• Gravity GPADA four-way pipe and drape adapter
• Gravity GPADT horizontal telescopic crossbar
