High End FQ-100

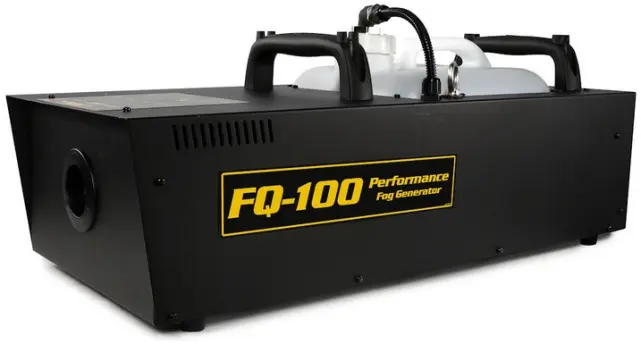

High End FQ-100 Fog Generator (High-End FQ100)

The FQ-100 performance fog generator is designed to meet the rigorous demands of the nightclub, theatrical and touring industries. This updated version of the industry standard F-100 fog generator produces any atmosphere – from dense fog to fine mist. The legendary Atmospheres® Fog Generating fluid is specially formulated to provide a dense, safe, water-based fog of a fine particulate size.  In addition to low noise levels ideal for theatrical and studio work, the FQ-100 also includes an internal LCD digital menu system providing the ability to set the volume control, timer control, and DMX functions as desired.  The FQ-100 performance fog generator continues the tradition and benchmark set by the original F-100.


Features
Large 9.5 liter ( 2.5 gallon) removable fluid reservoir for extended use
Atmospheres® scientifically formulated fluid provides optimum particulate size for lighting applications

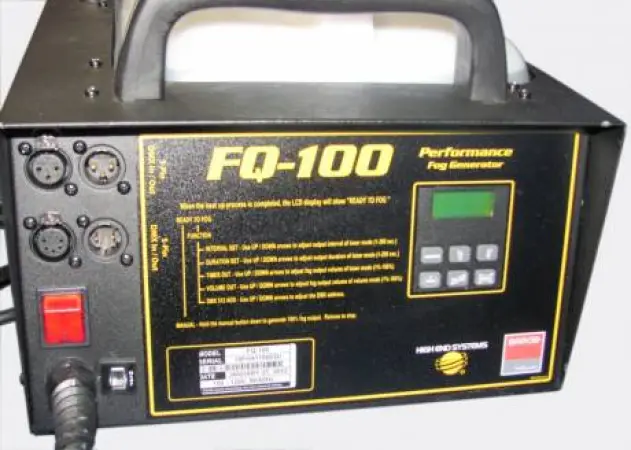

LCD Menu
Timer with interval, duration, and volume; set DMX; continuous fogging, Manual ON/OFF
3-pin and 5-pin XLR DMX in/out connectors
Fluid level sight gauge
User replaceable fluid filter
Output
20,000 cu.ft (566m3) per minute maximum output
10 min / 1 liter  fluid consumption rate
11 minutes warm-up time
optoelectronic liquid sensor with auto shutoff
Construction
Low-maintenance, corrosion-resistant vaporizing chamber
Dual carrying handles
Safety cable mounting point
Options
100-120 VAC 50/60 Hz or 200-240 VAC 50/60 Hz
Fluid Types
HQ
Stage

High End FQ100 (High End FQ 100)
