High End PLAYBACK WING 4

$6,956.00 Available
$0 Tax Join VIP for upfront sitewide discounts.

High End PLAYBACK WING 4

PLAYBACK WING

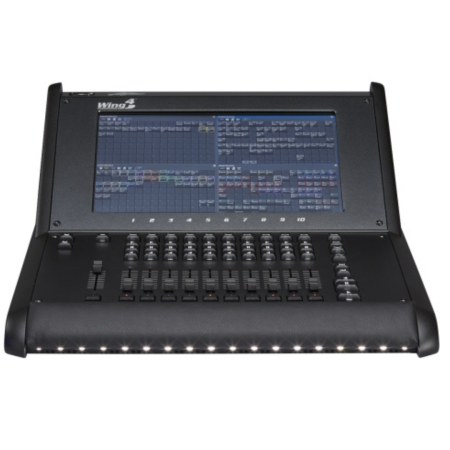

Flying pigs deserve flying faders! The Playback Wing 4 provides ten additional faders plus one Grand Master, all motorized. The Hog 4, Full Boar 4, Road Hog 4 and Hog 4 PC software all benefit from the additional playback hardware the Playback Wing 4 offers.

It uses the same high quality controls as found in the Hog 4 range of consoles, ensuring responsive and reliable operation. One Hog LED desk light is supplied, fully dimmable and software controllable. A 15.6-inch touchscreen is integrated in the wing allowing you to expand your console using one integrated unit.

FEATURES
USB connection to Rack Hog 4, Hog 4 PC, or any Hog 4 family console
Internal 15.6-inch 10-point touchscreen
10 motorized playback faders
Motorized Grand Master
Master Choose column and paging buttons
Super Widget Expansion slot provides four DMX outputs from Hog 4 PC
Integrated dimmable white lap work light
One dimmable white/blue desk light included
USB 2.0 ports: 2 rear
Dust cover included
Custom road case available
Compliance: ETL, CETL, CE

ELECTRICAL
Mains power: 100-250VAC, 50/60Hz, max 100W
Mains connector:  IEC320 C13
Fuse: 1x 5x20mm 5AT fuse

WEIGHTS AND DIMENSIONS
Width: 512mm / 20.2"
Depth: 610mm / 24.0"
Height: 244mm / 9.6"
Weight: 12.5kg / 27.6lb

Highend PlaybackWing (High End PlaybackWing4)

Research with AI

Brand High End
Name High End PLAYBACK WING 4

Case Included Dust cover included
Depth 610mm mm
Flight Case Compatible Custom road case available
Height 244mm mm
Included Accessories One Hog LED desk light, dust cover
Weight 12.5kg kg
Width 512mm mm

CE Certified Yes
ETL Listed Yes
Warranty Length Not specified years

Connectivity Protocols USB 2.0, Super Widget Expansion slot with four DMX outputs
Power Consumption max 100W W
Voltage Range 100-250VAC VAC

Control Interfaces 10 motorized playback faders, motorized Grand Master, Master Choose column and paging buttons, 15.6-inch 10-point touchscreen
Onboard DSP Not specified

Why to Invest?

Expand your Hog 4 console with additional motorized playback faders and a Grand Master for enhanced control. The integrated touchscreen and high-quality controls ensure responsive and reliable operation, while included lighting and connectivity options improve usability and flexibility.

How it Works?

Connect the Playback Wing 4 to your Hog 4 family console or Hog 4 PC via USB. Use the motorized faders and touchscreen to control playback functions, with additional DMX outputs available through the Super Widget Expansion slot. The integrated lighting is software controllable for optimal workspace illumination.

What's Unique?

The Playback Wing 4 combines motorized faders, a large integrated touchscreen, and dedicated lighting in a single expansion unit designed specifically for Hog 4 consoles, enhancing control and workflow in a compact, high-quality package.

Key Features

10 motorized playback faders, motorized Grand Master, integrated 15.6-inch touchscreen, Master Choose column and paging buttons, USB 2.0 connectivity, Super Widget Expansion slot with four DMX outputs, dimmable white lap work light, included dimmable white/blue desk light, dust cover included, custom road case available.

Specifications

Power: 100-250VAC, 50/60Hz, max 100W; Dimensions: 512mm (W) x 610mm (D) x 244mm (H); Weight: 12.5kg; Mains connector: IEC320 C13; Fuse: 1x 5x20mm 5AT fuse.
