High End Super Widget

Four Universe USB to DMX Interface for Hog 4 Consoles or Hog 4 PC

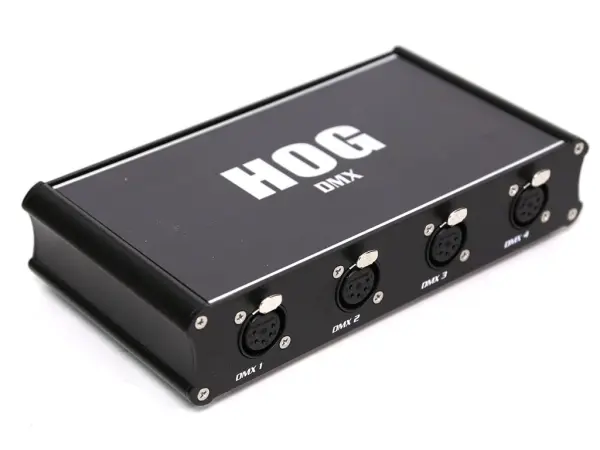

The USB DMX Super Widget from High End Systems comes from their selection of USB Widgets and is enclosed in a sleek, black metal casing. The USB DMX Super Widget provides four universes of DMX 512 output from Hog 4 OS consoles and any Hog 4 PC. Up to two DMX Super Widgets may be connected at once via a USB Hub to provide 8 full universes of DMX 512 to the Hog 4, Full Boar 4 and Hog 4 PC. Only one DMX Super Widget can be connected to the Road Hog 4.

This configuration provides an excellent solution for backup and playback only applications. By adding Nano Hog 4, Playback Wing 4 and Master Wing 4, users can configure powerful control solutions that precisely suit their needs and budgets. For Hog 4 PC users, attaching the DMX Super Widget also unlocks 4 universes of DMX over Art-Net and E1.3.1 (sACN).

High End Systems DMX Super Widget Features:
USB connection to Hog 4, Full Boar 4, Road Hog 4 and Hog 4 PC computers
4 x XLR 5-pin DMX 512 outputs
Up to two units can be connected to a console or DMX Processor (except to Road Hog 4, where only one can be connected)
USB connection to any Hog 4 console as well as Hog 4 PC
Rugged, stackable aluminum housing
Four DMX 512 outputs on 5-pin XLR connectors
Supports up to 2048 output channels
One USB input connector
Up to two USB DMX Widgets can be connected via USB Hub
Kensington security slot
External PSU included
Storage Temperature 0°-140°F (20°-60°C)
Compliance: ETL, CETL, CE
High End Systems DMX Super Widget Specifications:
2048 channels total output capacity
Status LEDs for power and data in/out
4 x XLR 5pol DMX, 1 x USB-B
Precision machined Aluminium panel with wear-resistant and printed legends
Rugged, sleek black metal package that can be stacked
Kensington Security Slot
External power supply included
Compatible with Hog 4, Full Boar 4, Road Hog 4, Hog 4PC, Wholehog 3, Road Hog Full Boar, Hog iPC and Hog 3PC
Dimensions (WxDxH): 7.8" x 4.2" x 1.8" (198 x 106 x 45mm)
Weight: 1.1 lbs (0.5kg)

High End Systems Super-Widget (High End SUPERWiget)
