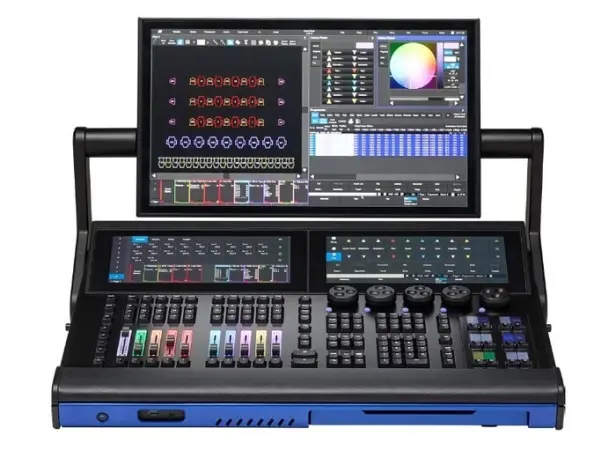

High End Tour Hog

Advanced Tour-Grade Lighting Control Console

The High End Tour Hog combines a compact, integrated design with powerful, production-ready features—perfect for live events, touring rigs, or high-pressure lighting environments.

High End Tour Hog Competitive Differences

• Compact all-in-one design featuring a 24-inch articulating multi-touch screen plus dual 12.5-inch dashboard displays for streamlined control layout.
• Road-tested interface with RGB-backlit keys, motorized faders, five premium encoders with assignable wheel buttons, user-definable keys, and large full-color function displays.
• Extensive connectivity including Neutrik powerCON TRUE1 power input & thru, EtherCON (HogNet and FixtureNet), opticalCON Duo, USB-A and USB-C ports, DMX outputs, MIDI I/O, SMPTE, desk lighting, Wi-Fi and Bluetooth antennas.
• Robust system capacity—supports 64 universes via local DMX, sACN, Art-Net; easily expands using HPU units.
• Built for live and tour environments: locking drawer with backlit alpha keyboard, customizable layout views, powerful programming tools, and rapid playback control with motorized masters.

High End Tour Hog Description

Built to excel in dynamic production scenarios, the High End Tour Hog consolidates essential lighting-control tools into a compact, rugged console optimized for mobility and workflow efficiency. Its 24-inch articulating touchscreen, sleek RGB controls, and dashboard displays offer intuitive access to programming and playback tools, while extensive connectivity ensures seamless integration with modern lighting setups.

The Tour Hog delivers powerful universes, flexible control, and customizable user interfaces—all designed to empower lighting technicians and designers to perform fast, accurate programming and live playback, even under the most demanding conditions.

Tour Hog Features

• RGB-backlit keys
• Motorized faders
• Five premium encoders with assignable wheel buttons
• User and function keys
• Dual dashboard multi-touch displays
• 24-inch articulating high-resolution multi-touch screen
• Built-in backlit alpha keyboard in locking drawer
• Neutrik powerCON TRUE1 power input & thru
• EtherCON (Ethernet) and opticalCON Duo connectors
• USB-A (×4) and USB-C (×2) ports
• Wi-Fi and Bluetooth antennas
• Four DMX outputs (5-pin XLR)
• SMPTE input (3-pin XLR)
• MIDI In/Thru/Out
• Desk light (3-pin XLR)

Tour Hog Specifications

• System capacity: 64 universes
• Display: Built-in articulating 23.8-inch multi-touch display; dual 12.5-inch dashboard displays; six full-color function key displays
• External Displays: Supports up to two external DisplayPort monitors (min. 1280×1024), optional touch or multi-touch
• Interface Controls: User-configurable views, palettes, lists, programmer window, plot/output/fixture schedule/patch windows, three color schemes
• Programming Tools: Command keypad, programmer dashboard, lists with softkeys, intensity palettes, fanning, grouping, Hog Color System, effect engine, pixelmapping, undo/redo, record/update/merge, macros
• Playback: Playback dashboard, 10 pageable motorized RGB-backlit master playbacks, full master stack (GM, Restart, Assert, Pig, etc.), unlimited fader pages, virtual masters, scenes, batch controllers, macros, Tour Wing expansion
• Connectivity & Accessories: Gig Hog programming wing, HPU hybrid processing unit, ETCnomad, Response network gateways/interfaces
• Power Requirements: 100–250 VAC, 50/60 Hz, max 80 W; Neutrik powerCON TRUE1; 7.5 A breaker; ETL/CETL/CE compliant; acoustical rating unspecified

High End Systems TOUR HOG (High End 6111A1001)
