Scalable Passive Column Speaker for Modular PA Systems
The

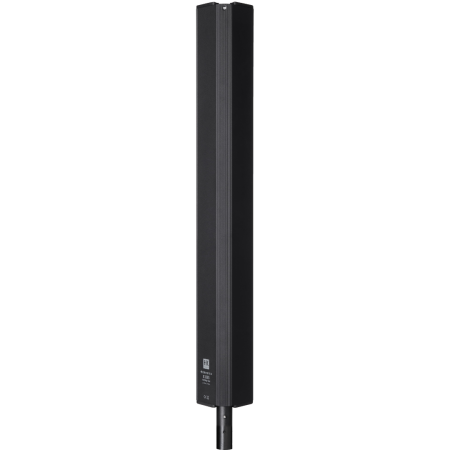

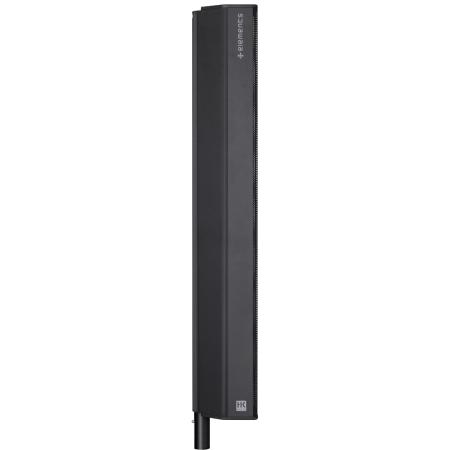

HK Audio ELEMENTS E835 is a high-performance passive mid/high column speaker designed for scalable line array setups. Featuring eight 3.5" full-range drivers in a rugged aluminum enclosure, the E835 delivers precise horizontal dispersion and clean sound reproduction. Its 300-watt RMS power handling, combined with HK’s E-Connect system, makes it ideal for musicians, DJs, and venues seeking a modular and expandable sound solution.
HK Audio ELEMENTS E835 Competitive Differences
- 8 x 3.5" full-range drivers for powerful mid/high frequency reproduction
- 300W RMS power handling at 8 ohms for expanded setups
- Wide 70° horizontal dispersion for clear audience coverage
- Compatible with E 435 mid/high units for flexible array stacking
- Integrated E-Connect link system for clean signal and power routing
- Durable and lightweight aluminum cabinet design (only 9.9 lbs)
HK Audio ELEMENTS E835 Description
The

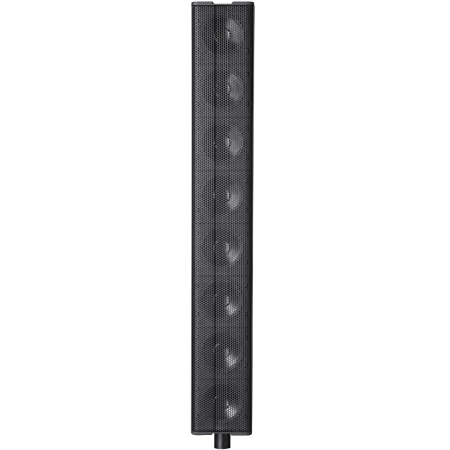

ELEMENTS E835 from HK Audio is engineered for professional users who demand flexibility, portability, and uncompromising audio performance. It is the ideal solution when building modular PA systems with extended throw and wider coverage. Housing eight 3.5" high-efficiency cone drivers in a vertical array, the E835 delivers impressive clarity across its 140 Hz to 20 kHz frequency range.
Thanks to its 70° horizontal dispersion and line source design, the E835 minimizes unwanted reflections and provides highly focused sound projection. Whether you're using a single E835 or stacking multiple units, the system's scalable architecture guarantees consistent sonic results. The aluminum enclosure with steel grille ensures durability while maintaining a sleek, modern aesthetic.

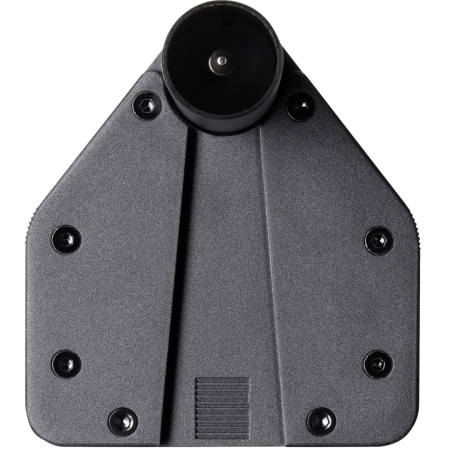

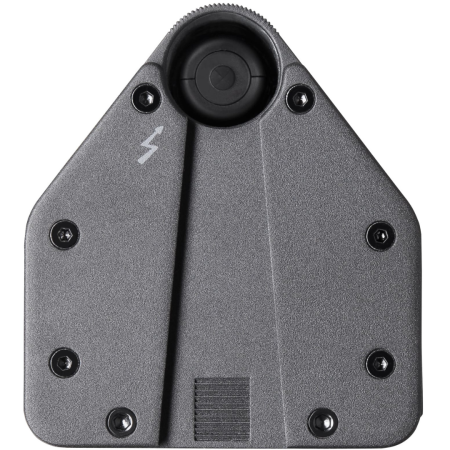

E-Connect terminals on both the input and output simplify signal and power distribution, especially when used with other ELEMENTS components such as the E 435 or HK Audio subs. From portable event rigs to installed sound solutions, the E835 is built to grow with your performance needs.
E835 Features
- Passive broadband column loudspeaker
- 8 x 3.5" full-range cone speakers
- 300W RMS power handling at 8 Ohms
- 100 dB sensitivity (1W/1m)
- Frequency response: 140 Hz – 20 kHz (-10 dB)
- 70° horizontal dispersion
- Durable aluminum cabinet with integrated steel grille
- Compatible with E 435 for flexible configuration
- Lightweight design – just 4.5 kg (9.9 lbs)
E835 Specifications
- Type: Passive broadband column loudspeaker
- Power Handling (RMS): 300 W
- Impedance: 8 Ohms
- Sensitivity (1W/1m): 100 dB
- Max SPL: Data not specified, peak-level performance varies by amplifier
- Frequency Range (-10 dB): 140 Hz – 20 kHz
- Dispersion: 70° horizontal
- Input/Output: 1 x E-Connect In, 1 x E-Connect Out
- Cabinet Material: Aluminum
- Grille: Steel with anticorrosive coating and acoustic foam backing
- Dimensions (W x H x D): 4.33" x 29.33" x 4.72" (11 x 74.5 x 12 cm)
- Weight: 9.9 lbs (4.5 kg)
HK Audio ELEMENTS E835
(HK Audio ELEM-E835-U)
