Turnkey LED Video Wall System with Panels, Processor & Software
The
American DJ EVS3-4X2 is a complete 8-panel LED video wall system that delivers stunning visuals in a 4x2 configuration (approx. 80” x 40”). Designed for touring, rental, or temporary installations, it includes all core components needed to deploy a high-resolution, professional-grade display—video panels, processor, cables, rigging bars, and video control software. Just add your own computer, and you’re ready to go.
American DJ EVS3-4X2 Competitive Differences
- Includes 8x EVS3 LED panels with 3.91mm pixel pitch and 65,536 pixels per sq. meter
- All required data and power cabling included for plug-and-play setup
- VX400 NovaStar video processor delivers seamless playback and live control
- MediaMaster Express software included for real-time video playback and mapping
- Front and rear serviceable panels for easy maintenance and fast replacements
- Corner protectors and lightweight design for touring and transport
American DJ EVS3-4X2 Description
The EVS3-4X2 system offers an ideal LED wall solution for medium-sized production environments like concerts, houses of worship, corporate events, or trade shows. The system uses
EVS3 video panels with a crisp 3.91mm pixel pitch and 128x128 resolution per panel to ensure bright, high-resolution content display in any indoor environment. Each panel features 3-in-1 RGB SMD2121 LEDs for color accuracy and even illumination across the entire wall.
This package includes all necessary data and power cables, a NovaStar VX400 video processor, and MediaMaster Express software for video playback and media control. With the included rigging bars, you can hang the system vertically or stack it safely from the ground. The modular design allows for quick setup and teardown, while the rear/front serviceable panels ensure minimal downtime during maintenance.
This LED wall is engineered for temporary use only, perfect for mobile production crews and rental companies that need reliable, vivid displays that go up fast and break down even faster.
EVS3-4X2 Features
- Complete 4x2 LED video wall system (approx. 6.6 ft. x 3.3 ft.)
- High-resolution EVS3 panels with 3.91mm pixel pitch
- 128x128 pixel resolution per panel
- Front and rear serviceable design with corner protectors
- NovaStar VX400 video processor for robust control
- MediaMaster Express video software included
- Power and data cables included for complete connectivity
- Versatile rigging bars for flying or ground stacking
EVS3-4X2 Specifications
- Panels: 8x EVS3 (3.91mm SMD2121, 128x128 resolution)
- Panel Dimensions: 19.68" x 19.68" x 2.96" (500 x 500 x 75mm)
- Total Wall Size: Approx. 80" x 40" (6.6 ft. x 3.3 ft.)
- Brightness: 800 NITS
- Viewing Angle: 160° (H) / 140° (V)
- Contrast Ratio: 5000:1
- Refresh Rate: 3840Hz
- Processing: 14-bit
- Power Consumption: Max 120W / Avg 48W per panel
- Weight per Panel: 16.5 lbs
- IP Rating: IP20 (Front & Rear)
- Serviceability: Front & Rear Module Access

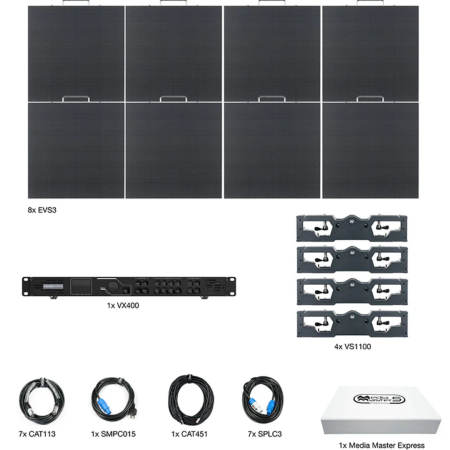

EVS3-4X2 Package Contents
- 8x EVS3 Video Panels
- 7x CAT6PRO3 – 3 ft. Cabinet-to-Cabinet Data Cables
- 1x CAT6S25FC – 25 ft. Processor-to-Cabinet Data Cable
- 7x SPLC3 – 3 ft. Power Link Cables
- 1x SMPC15 – 15 ft. Power to Edison Cable
- 1x NovaStar VX400 Video Processor
- 4x VSRB1 – Single Panel Rigging / Ground Stack Bars
- 1x MediaMaster Express Video Software License
Note: Computer not included. System is intended for temporary indoor use only and should not be permanently installed.
ADJ EVS3-4X2
(American DJ EVS3 4X2)
