Modular LED Video Panel with Flexible Curvature for Immersive Displays
The

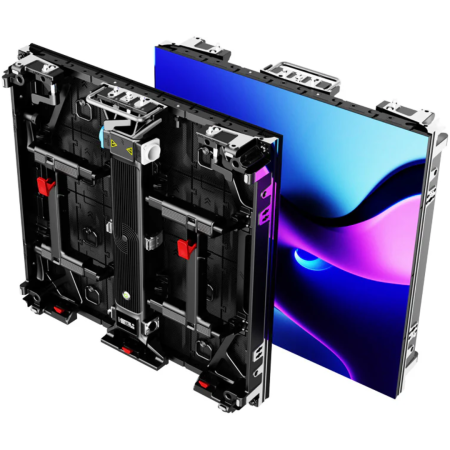

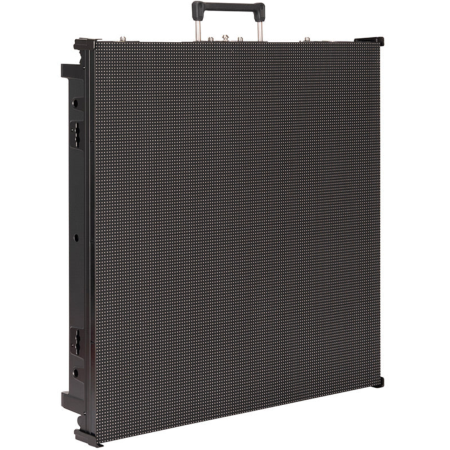

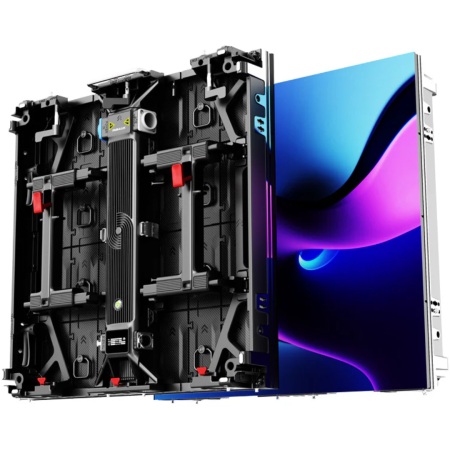

American DJ EVS3 FLEX45 is a 500mm x 500mm LED video panel designed for dynamic indoor video wall installations. Featuring a 3.91mm pixel pitch and 3-in-1 RGB SMD2121 Kinglight Copper LEDs, this high-resolution panel flexes up to 45° in convex or concave directions—enabling seamless curves and immersive environments.
American DJ EVS3 FLEX45 Competitive Differences

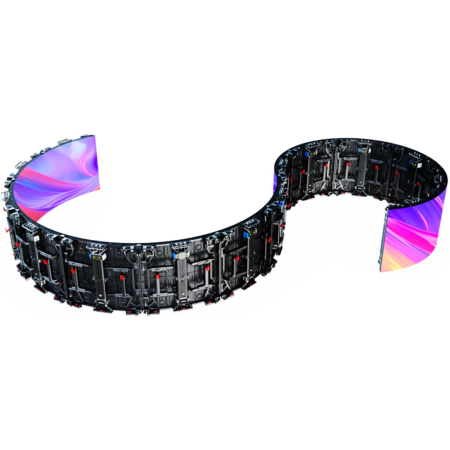

- Capable of ±45° curvature for cylindrical and wave-style video wall designs
- 128x128 panel resolution with high-density 65536 pixels per square meter
- Memory on Module (MOM) for calibration data retention and seamless reassembly

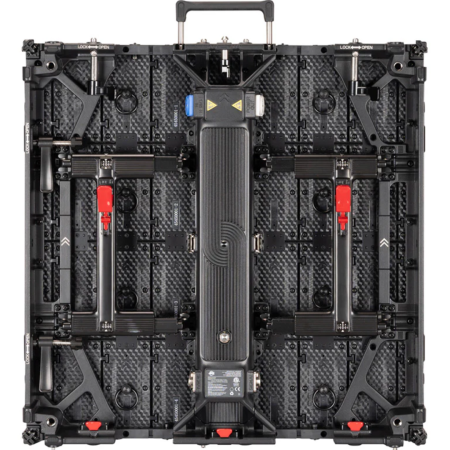

- Rear-serviceable with retractable transport handle and corner protectors
- Flexible configuration: use as curved or flat panel in the same setup
- Vivid 800 NITS brightness with wide 160°/140° viewing angle
- 3840Hz refresh rate for flicker-free visuals
American DJ EVS3 FLEX45 Description
The EVS3 FLEX45 is built for rental, touring, and temporary installations where visual creativity and modular flexibility are essential. With four replaceable modules per panel and Kinglight Copper 3-in-1 SMD2121 LEDs, this system delivers crisp, detailed imagery with a 128x128 resolution per panel.

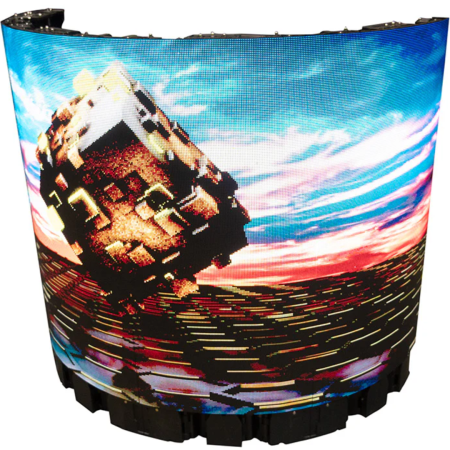

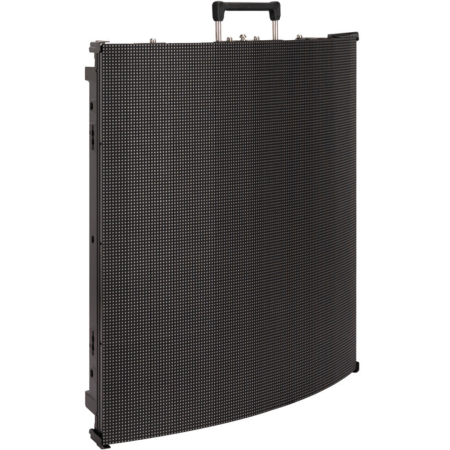

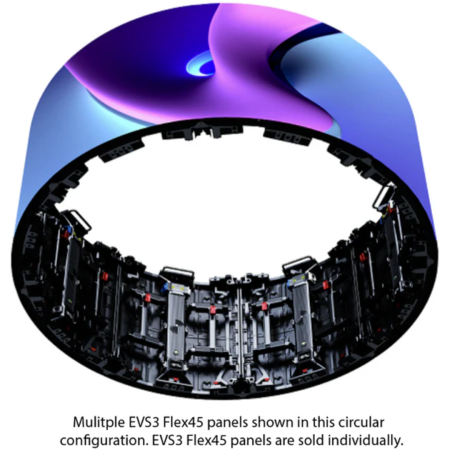

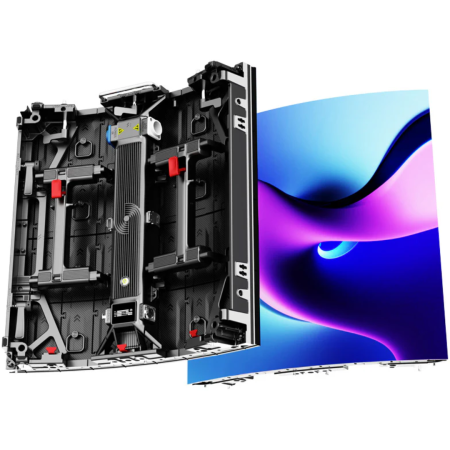

The unique mechanical design allows the panel to curve 45° in either direction, enabling cylindrical displays, wave walls, and other artistic configurations without visible seams. Its lightweight 15.6 lb (7.06 kg) frame and compact 19.68” square form factor allow for fast setup and transport, and up to 8 panels fit into the EVSF45FC flight case.
This panel integrates
Memory on Module (MOM) technology to store color calibration and brightness data in each module—ensuring consistent output even after module swaps. It’s also rear-serviceable and features corner protection for professional-grade reliability. Compatible with NovaStar video processors and a wide range of video inputs, it’s a versatile solution for LED video wall design.
EVS3 FLEX45 Features
- 3.91mm pixel pitch with 3-in-1 SMD2121 Kinglight Copper LEDs

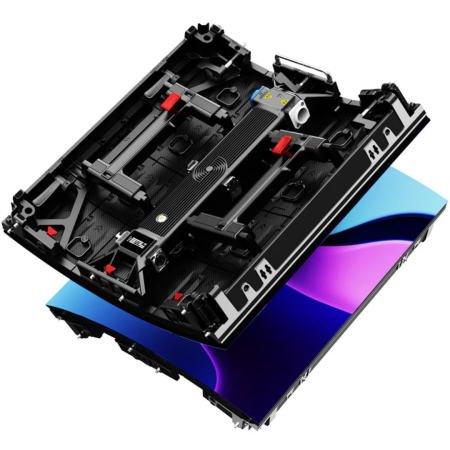

- ±45° flexible curvature for creative designs
- 128x128 pixel resolution per panel
- Memory on Module (MOM) for automatic calibration retention
- Rear-serviceable with 4 replaceable modules

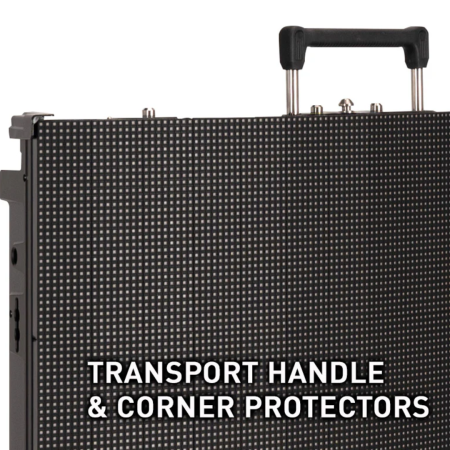

- Retractable handle and corner protectors for easy transport
- 800 NITS brightness and 5000:1 contrast ratio
- NovaStar Synchronous control system with DVI input
- Supports Composite, VGA, HDMI, HD-SDI, and more
EVS3 FLEX45 Specifications
- Pixel Pitch: 3.91mm (0.15")
- LED Type: 3-in-1 SMD2121 Kinglight Copper
- Drive IC: ICN2153AP
- Panel Resolution: 128x128 pixels
- Module Resolution: 128x32 pixels (4 per panel)
- Panel Size: 19.68" x 19.68" x 2.96" (500 x 500 x 75 mm)
- Weight: 15.6 lbs (7.06 kg)
- Brightness: 800 NITS
- View Angle: 160° horizontal / 140° vertical
- Gray Scale: ≥14-bit
- Display Color: 256
- Contrast Ratio: 5000:1
- Refresh Rate: 3840Hz
- Brightness Adjustment: 0–100% in 100 steps
- Power: 100–240V AC, 50–60Hz
- Max Power Consumption: 120W per panel
- Average Power Consumption: 48W per panel
- Control Mode: NovaStar with DVI input
- Scan Mode: 1/16
- Frame Frequency: 50–75Hz
- Input Support: Composite, S-Video, Component, VGA, DVI, HDMI, HD-SDI
- Control Distance: Ethernet <120m / Fiber Optic >120m
- Operating Temp: -4°F to 104°F (-20°C to +40°C)
- Storage Temp: -40°F to 176°F (-40°C to +80°C)
- Humidity: 10–90% (non-condensing)
- IP Rating: IP20 (front and rear)
- Certifications: cETLus (pending)
What's In The Box
- (1) EVS3 FLEX45 LED video panel
- Integrated retractable handle and corner protectors
- Power and data connectors (as applicable)
Optional Accessories
- EVSF45FC: Flight Case (fits 8 panels)
- FLEX45RB: Rigging Bar (hang up to 20 panels vertically)
- NovaStar VX4S, MCTRL-300, Nova Pro HD: Video Processors
- Arkaos MediaMaster, GrandVJ 2.0: Video Playback Software
- Power/Data Cables: Power Lock and Data Lock link cables
Note: This product is designed for temporary use only and is not intended for permanent installations.
ADJ EVS3 FLEX45
(American DJ EVS3-FLEX45)
