Multi-Effect LED Light

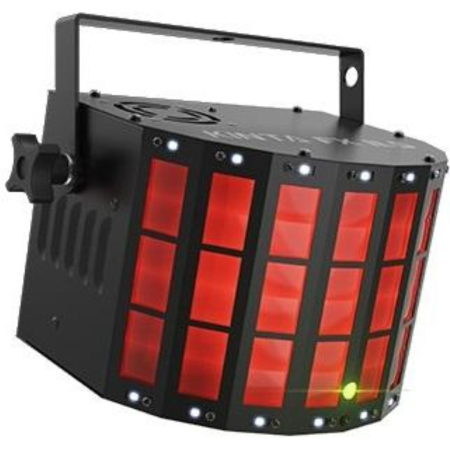

Chauvet DJ Kinta FX ILS is an all-in-one compact lighting fixture that delivers an impressive variety of effects in a single unit. Combining razor-sharp Kinta-style beams, vibrant laser patterns, and high-impact SMD strobe chases, it’s the perfect centerpiece for DJs, mobile entertainers, and small venues looking to create high-energy shows without the hassle of multiple fixtures.
Chauvet DJ Kinta FX ILS Competitive Differences
- 3-in-1 effect: Kinta, laser, and SMD strobe in one compact unit
- ILS and D-Fi USB compatibility for wireless, coordinated light shows
Chauvet DJ Kinta FX ILS Description
The
Chauvet DJ Kinta FX ILS blends three exciting effects—colorful Kinta beams, red and green lasers, and powerful white strobe LEDs—into a single fixture designed to energize any space. Thanks to its compatibility with ILS (Integrated Lighting System), it easily syncs with other ILS-enabled lights for fully coordinated shows, while D-Fi USB compatibility allows for wireless DMX or master/slave operation (D-Fi USB sold separately).
Its wide 118° coverage angle projects countless multicolor beams from its RGBW LED engine, while hundreds of red and green laser dots add dynamic movement and visual interest across dance floors and walls. The strobe effect, powered by 16 SMD LEDs, delivers high-intensity flashes and chase patterns to match any beat.
Control is flexible and easy via DMX (2 or 9 channels), IRC-6 remote (optional), Master/Slave, or onboard digital display. Designed for plug-and-play operation or as part of a larger system, this fixture is a smart choice for mobile rigs or fixed installs that want big effects in a small footprint.
Model Features
- All-in-one fixture with Kinta, laser, and strobe effects
- D-Fi USB compatibility for wireless control
- ILS compatibility for synchronized light shows
- Projects razor-sharp, multicolor beams
- Red and green lasers cast hundreds of moving dots
- 16 SMD LEDs produce bright strobe effects and chases
- Control via DMX, Master/Slave, IRC-6, or digital display
- Power linking saves time during setup
Model Specifications
- DMX Channels: 2 or 9
- Light Sources:
- Kinta: 4x 7.5W LEDs (RGBW)
- Strobe: 16x SMD LEDs (white, 5W)
- Laser: 100mW Red (650nm), 30mW Green (520nm)
- Strobe Rate: 0–20 Hz
- Coverage Angle: 118°
- Power and Current: 25W, 0.5A @ 120V | 24W, 0.2A @ 230V
- Power Linking: 17 units @ 120V | 33 units @ 230V
- Input Voltage: 100–240V AC, 50/60Hz (auto-ranging)
- DMX Connectors: 3-pin XLR
- Dimensions: 7.4 x 10.3 x 7.4 in (187 x 261 x 187 mm)
- Weight: 3.8 lb (1.7 kg)
- Approvals: CE, FDA, RoHS, UKCA
- Laser Classification: EN/IEC 60825-1:2014
What's In The Box
- Kinta FX ILS fixture
- Power cord
- Warranty card
- User manual
Chauvet KintaFXILS
(Chauvet DJ Kinta ILS)
