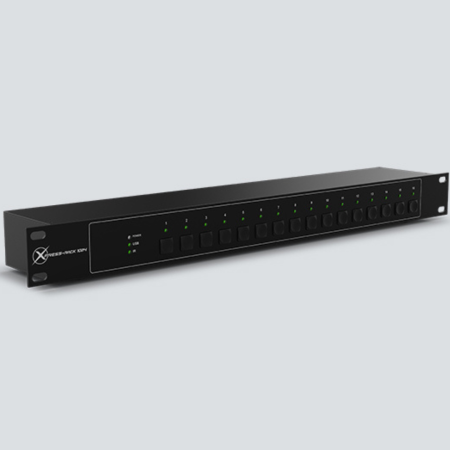

Xpress-Rack 1024 is a rackmount DMX interface for ShowXpress™ software. The unit controls 2 DMX universes and unlocks an additional ArtNet universe (3 universes total). Easily store and play back 16 shows without a computer using onboard buttons or included remote. Trigger up to 8 scenes remotely using the Phoenix contacts. Xpress-Rack 1024 features a built-in clock and calendar which triggers scenes automatically. Xpress-Rack 1024 is hot-swappable and automatically re-connects within seconds. Compatible with Windows® and Mac OS X systems. Connect multiple interfaces to control additional universes. Both outputs are electrically and optically isolated.
Highlights
Rackmount DMX interface for ShowXpress™ software V9.2.23
Controls 2 DMX universes and unlocks 1 additional ArtNet universe (3 universes total)
Easily store and play back 16 shows without a computer using on onboard buttons or included remote
Trigger up to 8 scenes remotely using the Phoenix contacts
Built-in clock and calendar triggers scenes automatically
Hot-swappable and automatically re-connects within seconds
Compatible with Windows® and Mac OS X systems
Connect multiple interfaces to control additional universes
Both outputs are electrically and optically isolated
Specifications
DMX Channels: 1024 + 512 via ArtNet
DMX Connectors: 3-pin XLR
Rackmount: 1U
Input Voltage: 5 V
USBWeight: 2.8 lbs (1.3 kg)
Dimensions: 19 x 3 x 1.75 in (483 x 76 x 44 mm)
Approvals: CE
DMX Refresh Rate: 40 Hz
