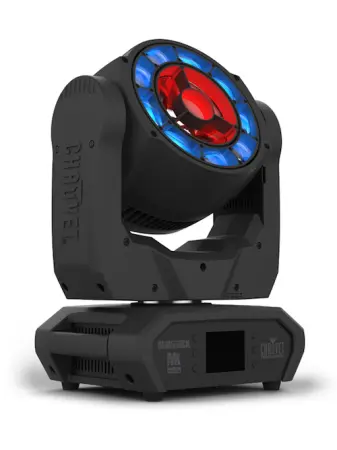

Maverick MK Pyxis empowers your creativity by giving you an endless array of incredible eye-candy looks with its epic beam and wash effects, wide zoom range, continuous 360° pan and tilt movement and awesome aerial and pixel-mapping effects. This revolutionary and compact moving head features a ring of nine 15 W RGBW LEDs with a zoom range of 7° to 45° and built in color macros and gobos, as well as a punchy 60 W RGBW LED serving as a center pixel with a 3° beam angle. Choose from DMX, sACN, Art-Net, or W-DMX for control.
Features:
A full featured RGBW LED wash and beam fixture with 360° continuous pan and tilt movement
A (9) 15 W RGBW LED outer ring of LEDs with a 7°— 45° zoom angle and pixel control for wide and narrow effects
A single 60 W RGBW LED center pixel with a fixed 3° beam angle for dedicated beam color effects
Built in color effects for quick design possibilities
Built in virtual gobo wheel with background colors for impressive atmospheric effects
Quiet operation for a wide range of installation situations
DMX, W-DMX, S ACN, Art-Net, and Kling-Net control for full flexibility
RDM enabled for remote addressing and trouble shooting
Converts TCP/IP to DMX for shorter data cable runs
7°— 45° zoom angle for variable beam sizes
True 1 compatible power input
Battery backup touchscreen display with auto rotate depending on fixture orientation
Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
Specifications:
Optical
Light Source: 9 LEDs outer ring (quad-color RGBW) 15 W,
(1.29 A), 50,000 hours life expectancy
Light Source: 1 LED center pixel (quad-color RGBW) 60 W,
(4.5 A), 50,000 hours life expectancy
Color Temperature (range): 2,800 to 10,000 K
Beam Angle (center pixel and outer ring): 3°
Beam Angle (center pixel): 3°
Beam Angle (outer ring): 5° to 28°
Field Angle (center pixel and outer ring): 6°
Field Angle (center pixel): 5°
Field Angle (outer ring): 7° to 45°
Zoom Angle: 7° to 45°
Illuminance (center pixel / outer ring): 27,560 lux @ 5 m
Illuminance (center pixel): 20,300 lux @ 5 m
Illuminance (outer ring): 7,330 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000
Hz, 15,000 Hz
Dynamic Effects
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: Infinite, 540°, 360°, 180° pan/ Infinite,
270°, 180°, 90° tilt
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Color Temperature Presets: Yes
Move-in-Black: Yes
Dim Modes: 2
Dim Curves: 4
Construction / Physical
Dimensions: 12.20 x 8.85 x 18 in (310 x 225 x 459 mm)
Weight: 31.96 lb (14.5 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer
Connections
Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR, , Amphenol XLR Net RJ45
Connectors in/out
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: Art-Net, sACN, Kling-Net, DMX, W-DMX
DMX Channels Single Mode: 26,66,113,131
DMX Channels Dual Mode – Function: 13,26,33
DMX Channels Dual Mode – Pixel: 30,40,80
Art-Net Channels Single Mode: 26,66,113,131
Art-Net Channels Dual Mode – Function: 13,26,33
Art-Net Channels Dual Mode – Pixel: 30,40,80
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 6 units @ 120 V; 11 units @ 208 V; 12 units @
230 V
Power and Current: 262 W, 2.2 A @ 120 V, 60 Hz
Power and Current: 260 W, 1.2 A @ 208 V, 60 Hz
Power and Current: 223 W, 1.1 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET
IP Rating: IP20, dry location
© 2017 CHAUVET Professional. All rights reserved.
https://www.chauvetprofessional.com/
https://www.chauvetprofessional.eu/
https://www.chauvetprofessional.mx/
What's Included
Maverick PYXIS
Seetronic Powerkon IP65 power cord
Omega bracket with mounting hardware
Optional Accessories
Professional Clamp: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
DMX Cables
IP Rated Seetronic® Powerkon Extensions
