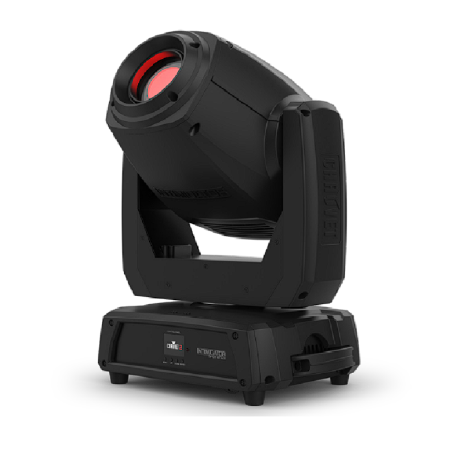

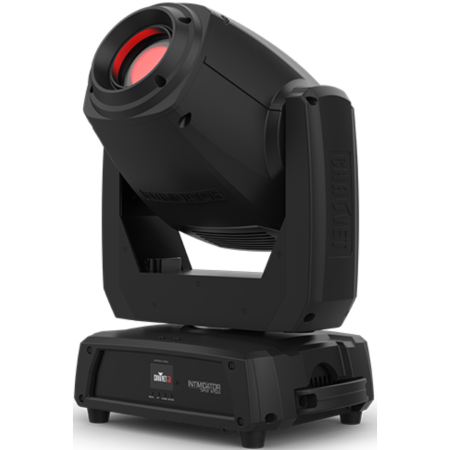

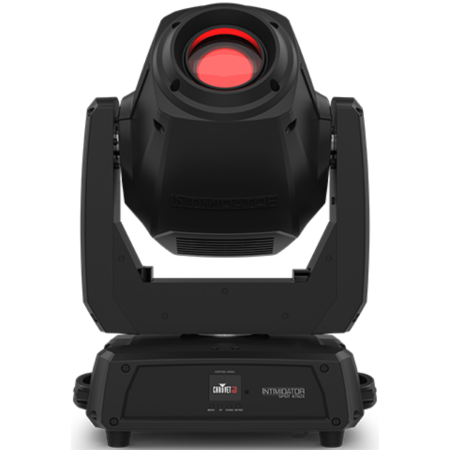

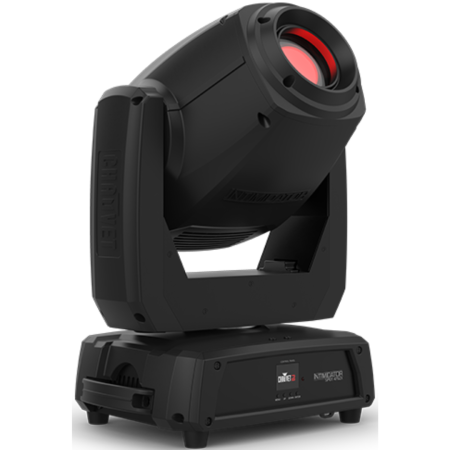

250W LED Moving Head Spotlight
The
Chauvet DJ Intimidator Spot 475ZX is a high-output, feature-rich moving head designed for large events, installations, and professional productions. Its 250W cool white LED engine, motorized zoom and focus, dual rotating prisms, and versatile gobo system make it ideal for impactful aerial effects and detailed gobo projections across various throw distances.
Chauvet DJ Intimidator Spot 475ZX Competitive Differences
- Motorized zoom (13°–28°) and focus for crisp beams at any distance
- Dual rotating prisms (5-facet linear + 6-facet round) for dynamic beam splitting
Chauvet DJ Intimidator Spot 475ZX Description
Chauvet Intimidator Spot 475ZX brings together power, precision, and control in one sleek, compact moving head. The intense 250W LED source produces up to 10,710 lumens, with crisp beam edges and vibrant output across its 13°–28° motorized zoom range.
Its onboard dual rotating prisms allow for stunning beam multiplication effects: a 5-facet linear prism and a 6-facet round prism, both bi-directional and speed-adjustable. Seven rotating, interchangeable gobos (including 1 glass gobo) with indexing and continuous scroll give users creative control for logo projection, texture, and animation.
Totem Mode keeps beams focused downward, ensuring light stays on the dance floor — perfect for mobile DJs and event spaces. With full 540° pan and 270° tilt movement, the fixture delivers wide coverage, and a new “home position” feature makes programming smoother.
Connectivity and control are equally flexible: DMX (3- or 5-pin), built-in RF receiver for RFC/RFC-XL remotes, and a USB-C port for firmware updates. Its powerCON®-compatible in/out connectors simplify cabling for linked setups.
Whether installed in a club or touring rig, the
Intimidator Spot 475ZX is a professional-grade workhorse ready for high-impact lighting.
Model Features
- 250W cool white LED (50,000-hour lifespan)
- Motorized zoom: 13° to 28° beam angle
- Motorized focus for sharp projections
- 7 interchangeable gobos + open (slot-n-lock, indexing)
- Dual rotating prisms (5-facet linear + 6-facet round)
- 7 colors + white, with split color and scroll effects
- Totem Mode keeps beams focused on dance floor
- Full-color LCD for onboard programming
- Built-in RF receiver for RFC/RFC-XL wireless remotes
- USB-C port for easy software updates
- ¼-turn hanging bracket for flexible mounting

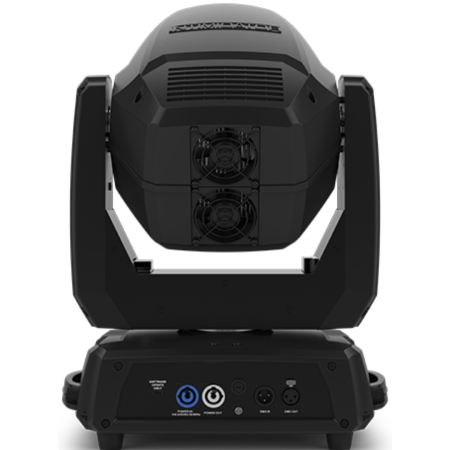

- 3- and 5-pin DMX I/O + powerCON®-compatible power linking
Model Specifications
- DMX Channels: 10 or 16
- Pan: 540° (options: 540°, 360°, 180°)
- Tilt: 270° (options: 270°, 180°, 90°)
- Zoom Angle: 13°–28° (motorized)
- Strobe Rate: 0–20 Hz
- Color Temperature: 5,700K
- Light Output:
- 13°: 90,979 lux @ 2m | 14,557 lux @ 5m
- 28°: 24,565 lux @ 2m | 3,930 lux @ 5m
- Gobo Size: 25.7 mm OD, 21 mm image, 1.3 mm max thickness
- Input Voltage: 100–240V AC, 50/60Hz (auto-ranging)
- Power & Current:
- 378W, 3.4A @ 120V
- 372W, 1.9A @ 230V
- Power Linking: 3 units @ 120V, 7 units @ 230V
- Size: 14.3 x 10 x 21 in (363 x 250 x 531 mm)
- Weight: 36.2 lb (16.5 kg)
- Approvals: CE, UKCA, RoHS, MET
What's In The Box
- Intimidator Spot 475ZX fixture
- Power cord
- ¼-turn hanging bracket
- Quick reference guide
Chauvet DJ PRO Intimidator Spot-475ZX
(Chauvet DJ INTIMSPOT475ZX)
