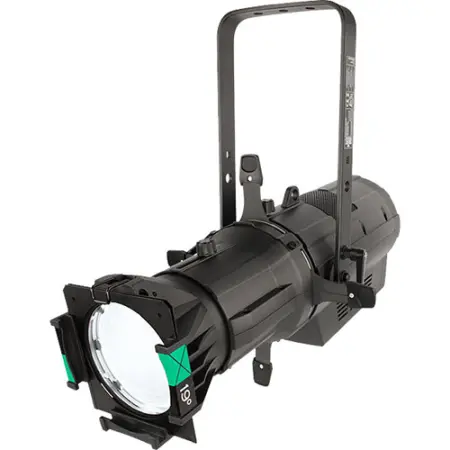

Ovation E-260CW is powered by a single source 230 W LED that exceeds the output of a 750 W tungsten light source. This cool white ERS-style fixture boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection. Control options like selectable PWM, RDM, and selectable dimming curves round out this virtually silent ellipsoidal.
Features:
Cool white ERS style fixture with output exceeding a tungsten 750 W source
Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
Flat, even field of light for superior gobo projection
RDM (Remote Device Management) for added flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Virtually silent operation for use in studio and theatre applications
Works perfectly with industry standard lens tubes and accessories
Specifications:
Light Source 1 x LED
198 W (3.5 A)
50,000 hour life expectancy
Color Temperature 5452K (cool white)
Lens Tube Required
CRI 90
Strobe Rate 0 to 30 Hz
DMX Channels 1, 2, 3, or 6
DMX Connectors 3- and 5-pin XLR (in/out)
IP Rating IP20
Cooling System Fan-assisted convection
Power Linking 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V

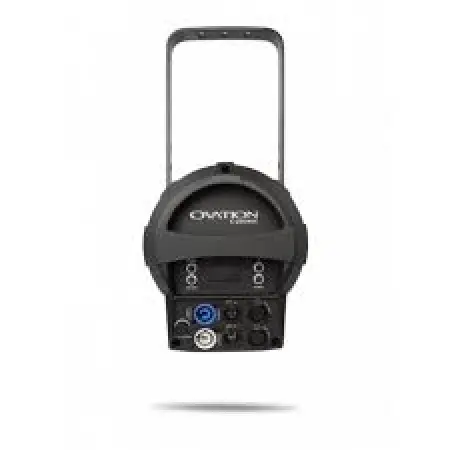

Power Connections Input Connector: Neutrik powerCON A
Output Connector: Neutrik powerCON B
Power Cord Plug: Edison (U.S.)
Input Voltage Auto-ranging 100 to 240 VAC, 50/60 Hz, switching (internal)
Power Consumption 225 W / 1.86 A @ 120 V, 60 Hz
233 W / 1.02 A @ 230 V, 50 Hz
Approvals CE, MET
Cable Length 5' (1.52 m)
Dimensions Fixture Only: 19.49 x 11.22 x 19.17" (495 x 285 x 487 mm)
Weight Fixture Only: 15.4 lb (7 kg)
