Advanced DMX Lighting Console
Crisp EMPOWERER UNI4 is a flagship-level DMX controller designed for professional lighting designers working on concerts, theatrical productions, and large-scale live events. Offering 4096 DMX channels, a massive 15-inch touchscreen, and ultra-flexible connectivity, this console delivers unmatched control and creative freedom for the most demanding lighting applications.
Crisp EMPOWERER UNI4 Competitive Differences
- 4096 DMX Channels with 4 Optical-Isolated Outputs + Art-Net
- 80 Playback Pages with Customizable Faders and Buttons
Crisp EMPOWERER UNI4 Description
The
Crisp EMPOWERER UNI4 is built to be the centerpiece of any high-end lighting rig. With 4096 DMX channels across four optical-isolated outputs and full Art-Net support, this controller is capable of managing massive lighting systems with precision and stability.

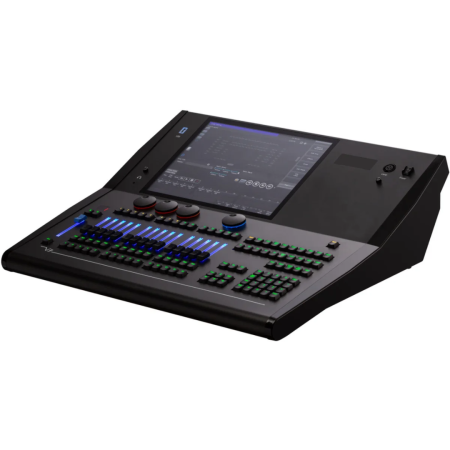

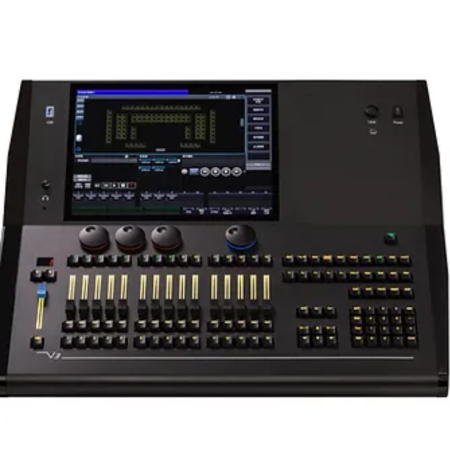

At the heart of the UNI4 is a large 15-inch high-resolution capacitive touchscreen, giving operators intuitive access to scene management, playback control, and fixture configuration. The console features 80 pages of playbacks, each with 15 multifunction faders and playback buttons, enabling seamless execution of complex shows across multiple fixture groups.
Designed for maximum visibility and control in dark environments, the backlit keys and encoders are color-customizable and brightness-adjustable. Each fader and playback button offers visual feedback for multiple operational states, while dedicated flash and pause keys ensure hands-on precision during live performances.

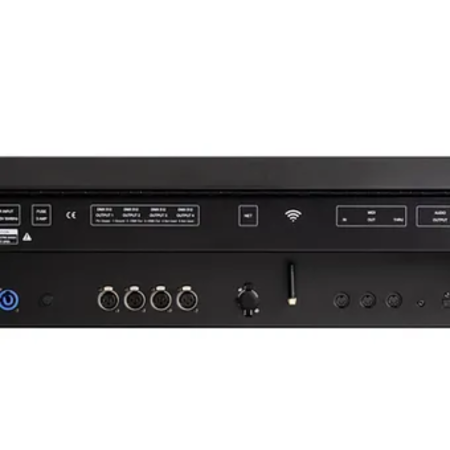

Connectivity is a major strength of the UNI4. It supports MIDI In/Out/Thru with timecode compatibility, built-in WiFi for remote control via app, USB for backup or external device connection, and a full suite of audio interfaces including optical and headphone outputs. Built with touring-grade durability, this controller is ready for rigorous use in the field.
Model Features
- 4096 DMX Channels with 4 Optical-Isolated Outputs + Art-Net
- 15" Capacitive Touchscreen for Scene and Fixture Control
- 80 Playback Pages with 15 Faders and 15 Buttons per Page
- Custom Backlit Faders, Buttons, and Encoders
- MIDI In/Out/Thru with Timecode Sync Support
- Built-In WiFi for App Integration on Mobile/Tablet
- USB 2.0 Port for Backup and Mouse Connection
- Audio Interfaces: 3.5mm Stereo, Optical Audio, Headphone
- Includes Adjustable Working Lamp Output
- Supports D4 Fixture Profile Format for Compatibility
Model Specifications
- DMX Channels: 4096
- DMX Outputs: 4 Optical-Isolated Ports + Art-Net
- Touchscreen: 15-inch High-Resolution Capacitive LCD
- Playback Pages: 80
- Faders: 15 Multifunction Faders per Page
- Playback Buttons: 15 per Page
- Connectivity: MIDI In/Out/Thru, WiFi, USB, Audio Interfaces
- Fixture Profile Format: D4
- Power Supply: AC 100–240V, 50–60Hz
- Dimensions: 26.2 × 22.8 × 8.1 in (665 × 580 × 205 mm)
- Weight: Approx. 33 lb (15 kg)
What's In The Box
- Crisp EMPOWERER UNI4 Console
- Power Cable
- USB Cable
- User Manual
Crisp Empowerer Uni4
(Crisp SPL-KT-IEU4)
