Versatile 12-Inch Powered PA Speaker with DSP and Bluetooth Streaming
The

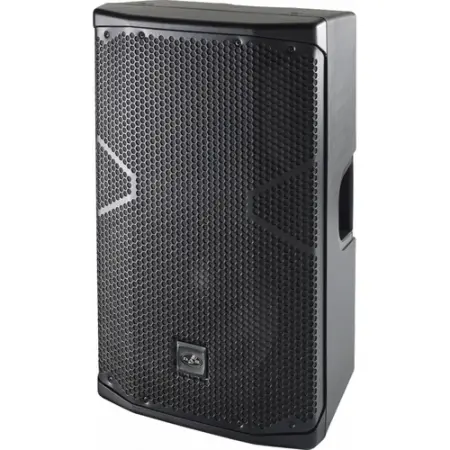

D.A.S. Audio ALTEA-712A is a high-powered 2-way speaker designed for portable and professional sound applications. Equipped with a 1500W peak Class-D amplifier, it provides extended bandwidth, dynamic range, and low distortion. Ideal for live performances, clubs, and A/V setups, this speaker combines high-quality sound with advanced DSP control and wireless audio streaming.
D.A.S. Audio ALTEA-712A Competitive Differences
- 1500W peak Class-D amplifier for robust output and 130 dB peak SPL
- Advanced DSP with user-definable settings via DAScontrolâ„¢ and LCD interface
- Wireless music streaming and remote control via DASlinkâ„¢ app
- Multi-angle polypropylene enclosure for use as a main PA or stage monitor
- High-performance 12F4 woofer for powerful bass and M-28 compression driver for crisp highs
- Five voicing presets and user-defined EQ for tailored sound in any environment
D.A.S. Audio ALTEA-712A Description
The
D.A.S. Audio ALTEA-712A delivers premium sound quality with a 12-inch 12F4 woofer and M-28 FEM-optimized compression driver, providing precise audio across a frequency range of 60 Hz to 20 kHz. Its powerful 1500W peak Class-D amplifier ensures clear, dynamic sound with a maximum SPL of 130 dB, making it suitable for concerts, theaters, and houses of worship.
The integrated
DAScontrol™ interface allows users to adjust voicing presets, EQ modes, input levels, and more, ensuring optimal performance in any setting. The rear-panel LCD screen provides easy navigation of settings, while the DASlink™ app enables remote control and high-definition stereo streaming directly from mobile devices. The ALTEA-712A’s lightweight yet durable polypropylene enclosure is designed for easy portability, and its multi-angle geometry allows for use as a floor monitor or mounted PA. M8 rigging points add versatility for suspended installations.
ALTEA-712A Features
- 12" 12F4 woofer for deep, punchy bass response
- M-28 compression driver with 1" exit for smooth high-frequency reproduction
- 1500W peak Class-D amplifier (750W continuous)
- User-definable 24-bit DSP with presets and LCD interface
- Five voicing presets: Live, Dance, Vocals, Bass Boost, and Custom
- Wireless control and audio streaming via DASlinkâ„¢ app
- Multi-angle polypropylene enclosure for versatile positioning
- Rigging points for flown installations
ALTEA-712A Specifications
- Frequency Range (-10 dB): 60 Hz – 20 kHz
- Coverage: 90° Horizontal, 60° Vertical
- Maximum Peak SPL: 130 dB at 1 m
- Amplifier Power: 1500W Peak (750W Continuous)
- Input Sensitivity: 1.95 V (+8 dBu)
- Input Impedance: 20 kΩ Balanced
- Audio Inputs:
- 2 x Female XLR (Balanced)
- 1 x 3.5 mm Mini Jack (Aux Input)
- 1 x Male XLR (Thru Output)
- Control: DASlinkâ„¢ for streaming, DAScontrolâ„¢ for onboard settings
- Power Requirements: 90-250 VAC, 50/60 Hz
- Power Draw: 3.0 A (115 V) / 1.5 A (230 V)
- Enclosure: Polypropylene, Trapezoidal Design
- Dimensions: 25.8 x 15.0 x 13.8 in (655 x 380 x 350 mm)
- Weight: 38.6 lb (17.5 kg)
- Rigging: M8 Rigging Points
- Shipping Dimensions: 29.1 x 17.7 x 16.3 in (740 x 450 x 415 mm)
- Shipping Weight: 45.2 lb (20.5 kg)
DAS Audio Altea712A
(DAS Altea-712a)
