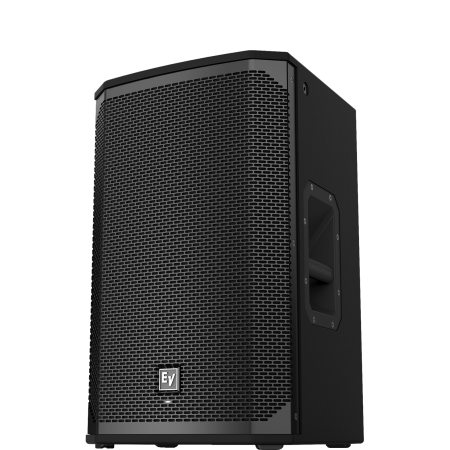

EKX-12P
12-Inch Two-Way Powered Loudspeaker
QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.
High-efficiency 1500 W Class D power amplifier delivers up to 132 dB peak SPL on the EKX-12P via high-sensitivity transducers designed and engineered by EV.
Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage.
Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
Connector Type (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
Coverage (Nominal -6 dB) H 90 °
Coverage (Nominal -6 dB) V 60 °
Crossover Frequency 1.7 k Hz
Enclosure Material 15 mm, plywood with EVCoat
Frequency Response (-10 dB) 50 Hz - 20 kHz Hz Full space measurement using the music DSP preset.
Frequency Response (-3 dB) 60 Hz - 18 kHz Hz Full space measurement using the music DSP preset.
Grill 18 AWG steel with powdercoat
HF Transducer DH-1M 1-inch titanium compression driver
LF Transducer EVS-12M 300 mm (12 in)
Maximum SPL 132 dB dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
Power Consumption 1.8 A Current rating is 1/8 power
Power Rating 1500 W
Shipping Weight 22.9 kg (50.49 lbs)
Suspension (8) M10 threaded mounting points
Height 14RU 607 mm (23.9")
Width 375 mm (14.76")
Depth 356 mm (14.02")
Weight Net 18.8 kg (41.45 lbs)
