Elation FUZE WASH 500

500W RGBMA LED Fresnel with 6° to 53° Zoom and High CRI Output

$4,099.00

Elation FUZE WASH 500 | 500W RGBMA LED Fresnel with 6° to 53° Zoom and High CRI Output

Full Spectrum RGBMA LED Fresnel Wash Light with Zoom and High CRI

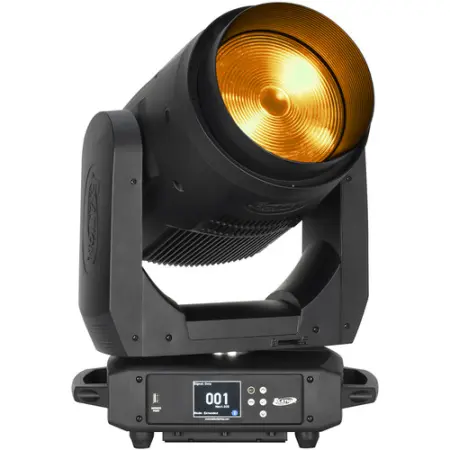

The Elation FUZE WASH 500 is a high-performance automated LED Fresnel wash fixture designed for precision lighting in theaters, broadcast studios, live events, and other professional applications. Powered by a 500W RGBMA LED engine, this fixture delivers up to 17,000 lumens of output, high CRI performance up to 92, and a wide zoom range of 6° to 53°, all in a compact and flexible design.

Elation FUZE WASH 500 Competitive Differences

  • 500W RGBMA (Red, Green, Blue, Mint, Amber) LED engine with full spectrum output
  • High output up to 17,000 lumens at 6,500K
  • High CRI up to 92 for excellent color rendering on camera
  • Wide zoom range from 6° to 53° for versatile wash coverage
  • Virtual color temperature control from 2400K to 8500K
  • Green and magenta shift control for fine-tuned white balance
  • CMY and RGB color mixing emulation plus virtual gel swatch book
  • Optional motorized barn doors and indexable ovalizer lens for precise beam shaping
  • Supports DMX, Art-Net, sACN, RDM and built-in E-FLY wireless control
  • Multiple DMX channel modes with or without barn doors for optimized programming

Elation FUZE WASH 500 Description

The FUZE WASH 500 is a powerful and flexible solution for any professional lighting setup that requires both high output and refined color control. Its 500W full-spectrum RGBMA LED engine is built around a five-color array that includes red, green, blue, mint, and amber LEDs. This configuration enables superior color mixing, rich saturation, and smooth pastels, while also providing a high CRI of up to 92 for excellent skin tone and detail rendering in camera-critical environments. A broad 6° to 53° motorized zoom range allows the FUZE WASH 500 to function as both a narrow beam fixture and a wide area wash. Designers can take advantage of CMY and RGB color emulation, variable color temperature from 2400K to 8500K, and green/magenta shift controls for maximum flexibility. Virtual gel presets speed up programming in theatrical applications, while the optional indexable ovalizer lens and motorized barn doors expand its shaping and directional control. The fixture is fully controllable via multiple protocols, including DMX, Art-Net, sACN, RDM, and Elation's integrated E-FLY wireless DMX. With 16-bit control over pan, tilt, and dimming, and multiple channel modes to accommodate different setups, the FUZE WASH 500 is an ideal choice for both touring and installed applications.

FUZE WASH 500 Features

  • 500W RGBMA LED engine with 6,500K native color temperature
  • 17,000 lumen total fixture output
  • High CRI up to 92
  • Motorized zoom range from 6° to 53°

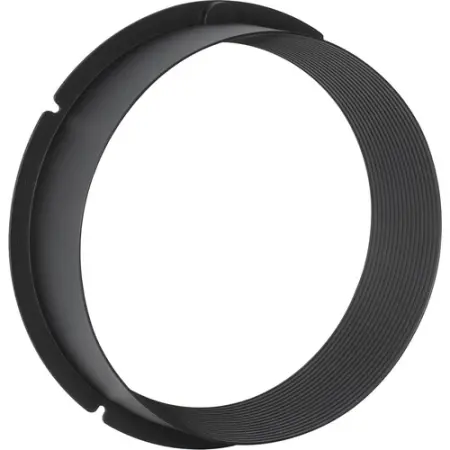

  • Optional indexable ovalizer lens
  • Optional motorized barn door system
  • Variable 16-bit dimming curve modes
  • High-speed electronic shutter and strobe
  • RGBMA color array with CMY and RGB emulation
  • Variable CCT control from 2400K to 8500K
  • Green/magenta shift adjustment
  • Virtual gel swatch book
  • 16-bit pan, tilt, and dimming resolution
  • Multiple DMX channel modes (with and without barn door)
  • DMX adjustable LED frequency
  • Control protocols: DMX, RDM, Art-Net, sACN, and E-FLY wireless
  • Full-color 180° reversible LCD menu with 4-button control panel

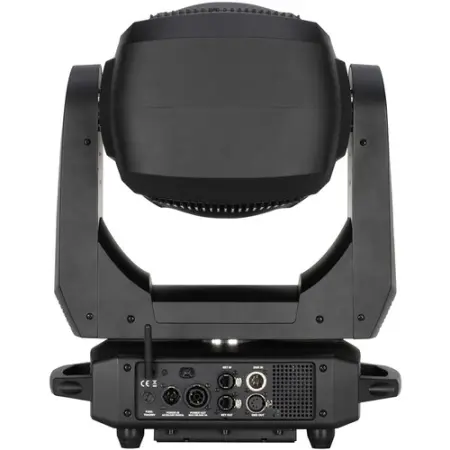

  • Locking 5-pin XLR in/out
  • Locking RJ45 Ethernet in/out
  • Locking IP65 power connector in/out
  • USB port for firmware updates

FUZE WASH 500 Specifications

  • LED Source: 500W RGBMA (Red, Green, Blue, Mint, Amber)
  • LED Life: 30,000 hours average (test lab conditions)
  • Output: Up to 17,000 lumens at 6,500K
  • CRI: Up to 92
  • Zoom Range: 6° to 53° motorized
  • Beam Angle: 6.3° to 53.7°
  • Field Angle: 12.1° to 63.6°
  • Pan and Tilt: 16-bit resolution
  • Control Protocols: DMX, RDM, Art-Net, sACN, E-FLY wireless
  • Power Input: AC 100 to 240V, 50/60Hz
  • Max Power Consumption: 609W
  • Heat Output: 2,151.71 BTU/hr (±10%)
  • Operating Temperature: 14°F to 113°F (–10°C to 45°C)
  • Product Dimensions (without snoot): 13.8 in x 16.1 in x 21.7 in (350 mm x 407.9 mm x 550.5 mm)
  • Product Dimensions (with snoot): 15.3 in x 16.1 in x 21.7 in (389.5 mm x 407.9 mm x 590 mm)
  • Center Spacing: 23.6 in (600 mm)
  • Product Weight: 40.89 lb (18.5 kg)
  • Certifications: CE, cETLus, FCC
  • IP Rating: IP20 (indoor use only)

Elation Lighting FUZE WASH 500 (Elation FUZ567)
