High-Output COB LED House Light with Fanless Cooling and Ring Effect
JMAZ Zona 5L is a premium 350W RGBA+L PAR-style LED house light engineered for high-performance lighting in theaters, churches, event venues, and installations. Equipped with a powerful COB LED, wide 2000K–12000K CCT range, high CRI of ≥90, and a large 55° beam angle, it delivers excellent brightness, color precision, and wide coverage. A 50W RGB SMD ring effect adds dynamic visuals, while the fanless design ensures silent operation for noise-sensitive environments.
JMAZ Zona 5L Competitive Differences
- Ultra-bright 350W RGBA+L COB LED with 50,000-hour average lifespan
- High CRI (≥90) and wide CCT range from 2000K to 12000K
- Integrated 50W RGB SMD LED ring effect (250 x 0.2W)
- Wide 55° beam angle for full-room wash lighting
- Fanless thermal management for silent operation
- Advanced 16-bit dimming with selectable dimming curves
- Three DMX personalities: 8, 18, or 27 channels
- Supports DMX512 (5-pin & hardwire) and RDM protocols
- TRUE1 power input for professional, locking power connection
- Complete package with diffuser, yolk, safety cable, and power/DMX cables
JMAZ Zona 5L Description
The JMAZ Zona 5L is designed for demanding lighting applications that require high brightness, color flexibility, and reliability. With a 350W RGBA+L COB LED engine, it provides powerful output with smooth color blending, making it ideal for architectural washes, stage lighting, and house light applications.

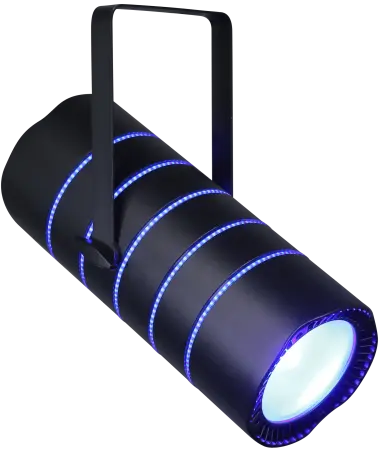

The fixture includes a 50W RGB ring light made up of 250 x 0.2W SMD LEDs, allowing for ambient color effects around the perimeter of the main beam. The Zona 5L supports variable 16-bit dimming with multiple dimming curves and built-in strobe effects, giving lighting designers maximum control.
Fanless cooling ensures the fixture remains completely silent, ideal for quiet environments such as theaters or broadcast studios. Its compatibility with DMX512 and RDM protocols allows for seamless integration into modern lighting control systems. The Zona 5L comes ready to use with all essential mounting and connection accessories included.
Zona 5L Features
- 350W RGBA+L COB LED light engine
- 50W RGB ring effect (250 x 0.2W SMD LEDs)
- CCT range: 2000K – 12000K
- High CRI: ≥ 90
- 55° beam angle
- Fanless cooling system for silent operation
- Electronic dimmer and strobe with variable 16-bit dimming modes
- Three personality modes: 8 / 18 / 27 channels
- DMX512 5-pin and hardwire In/Out
- RDM (Remote Device Management) support
- TRUE1 locking power input
Zona 5L Specifications
- Light Source: 350W COB RGBA+L LED
- Ring Effect: 50W (250 x 0.2W) RGB SMD LEDs
- CTO Range: 2000K – 12000K
- LED Life: 50,000 hours
- Beam Angle: 55°
- CRI: ≥ 90
- Cooling: Fanless
- Dimming: 16-bit electronic dimmer with selectable curves
- Control Modes: 8 / 18 / 27-channel personalities
- Control Protocols: DMX512 (5-pin and hardwire), RDM
- Power Input: TRUE1 In, hardwire
- Certifications: CE, cETL, FCC, RoHS
What's In The Box
- Zona 5L Fixture
- Diffuser
- Hanging Yolk
- TRUE1 Power Cable
- 5-Pin DMX Cable
- 1 x Safety Cable
- User Manual
Jmaz ZONA 5L
(JMAZ Zona5L)
