Fanless LED House Light with Tunable White and RGB Effects

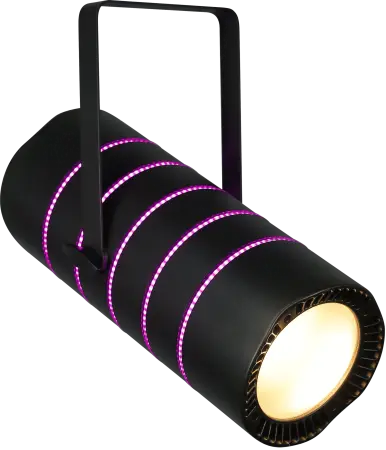

The JMAZ Zona DWL is a powerful and versatile 400W LED house light designed for professional installations requiring superior color accuracy, silent operation, and dynamic visual effects. With a wide tunable white range, CRI ≥ 95, and an integrated RGB SMD ring effect, this fixture excels in theaters, houses of worship, and performance venues.
JMAZ Zona DWL Competitive Differences
- 400W total LED output (200W Warm White + 200W Cool White) with 50,000-hour lifespan
- Built-in 50W RGB ring effect (250 x 0.2W SMD LEDs)
- Wide CTO range from 2000K to 12000K for precise white balance
- High color accuracy with CRI ≥ 95
- Fanless design for completely silent operation
- 55° wide beam angle ideal for house lighting
- Multiple DMX modes (8/18/27 channels) and RDM support
- TRUE1 power input and hardwire DMX connections for secure installations
- Includes diffuser, barn doors, hanging yolk, DMX cable, safety cable, and manual
JMAZ Zona DWL Description
The JMAZ Zona DWL is a high-output house light that offers unmatched flexibility and performance in a compact, rugged design. Featuring a combined 400W LED engine—200W warm white and 200W cool white—it delivers brilliant tunable white lighting with a CTO range from 2000K to 12000K. The fixture also includes a vibrant 50W RGB SMD LED ring effect, enhancing ambiance and visual impact during performances or transitions.
Designed with silent fanless cooling, the Zona DWL is ideal for noise-sensitive environments. It supports smooth 16-bit dimming, multiple dimming curves, and strobe effects, with user-selectable control modes via DMX512 and RDM. Its flexible 55° beam angle ensures even coverage across large areas.
Installation is streamlined with TRUE1 power input, 5-pin DMX In/Out, and included hardware such as a hanging yolk, barn door, and cables. Whether you’re upgrading your venue or integrating into a new lighting system, the Zona DWL delivers premium performance and reliability.
Zona DWL Features
- 400W LED engine (200W Warm White + 200W Cool White)
- RGB Ring Effect: 50W (250 x 0.2W) SMD LEDs
- Wide CTO range: 2000K – 12000K
- CRI ≥ 95 for superior color rendering
- 55° beam angle for broad coverage
- Fanless cooling for silent operation
- 16-bit dimming with variable dimming curves
- Electronic strobe and built-in auto programs
- 3 control modes: 8, 18, or 27-channel DMX
- Supports DMX512 and RDM protocols
- TRUE1 In and hardwire power connection
Zona DWL Specifications
- Light Source: 400W total (200W Warm White + 200W Cool White)
- RGB Ring Effect: 50W (250 x 0.2W SMD LEDs)
- Color Temperature: 2000K – 12000K
- LED Lifespan: 50,000 hours
- CRI: ≥ 95
- Beam Angle: 55°
- Cooling: Passive (fanless)
- Dimming: 16-bit electronic with variable curves
- Control Protocols: DMX512 (5-pin), RDM
- DMX Modes: 8 / 18 / 27 channels
- Power Input: TRUE1 In, hardwire
- Certifications: CE, cETL, FCC, RoHS
What's In The Box
- JMAZ Zona DWL fixture
- Barn door
- Diffuser
- Hanging yolk
- TRUE1 power cable
- 5-pin DMX cable
- Safety cable
- User manual
Jmaz ZONA DWL
(JMAZ ZonaDWL)
