ATMe

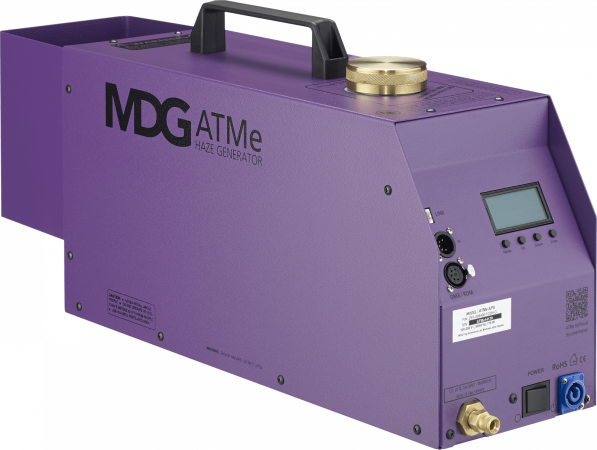

Haze Generator
The finest haze on the market just got better!
The ATMe single high output haze generator is the evolution of the world-famous ATMOSPHEREAPS, the industry's standard for more than two decades.
LONGEST HANGING TIME
Our MDG Neutral fluid is specially created for the longest hanging time.
VARIABLE HAZE OUTPUT
0-100% haze output control from your DMX / RDM device. 100% duty cycle.
APS™ (AUTOMATIC PURGING SYSTEM)
This system purges the heating module after the first heating cycle and after every emission of haze preventing residual build up and clogging.
NUMEROUS CONTROL OPTIONS
4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.
EXTREMELY QUIET OPERATION
Noise emission (at 1m/3.3ft): 45.4 dB in standard mode. The theater mode reduces the fan speed depending on haze output level.
LOWEST FLUID CONSUMPTION ON THE MARKET
At 1.38 bar (20 psi) ATMe uses only 55 ml (1.86 oz) of fluid per hour to give a total running time of 46 hours from its 2.5 L (0.66 US gallon) reservoir.
Fluid consumption
55 ml (1.86 oz) per hour at 1.38 bar (20 psi)
110 ml (3.72 oz) per hour at 2.76 bar (40 psi)
CO2 consumption
0.18 kg (0.4 lb) per hour at 1.38 bar (20 psi)
0.36 kg (0.8 lb) per hour at 2.76 bar (40 psi)
Reservoir capacity
2.5 L (0.66 US gallon)
APS™ (Automatic Purging System)
Standard
Haze colour
Pure white
Particle size
0.5 - 0.7 micron
Total running time
46 hours at 1.38 bar (20 psi) with a full tank
23 hours at 2.76 bar (40 psi) with a full tank
Warm-up time
8 minutes (maximum)
Fluid type
MDG Neutral
Operating voltage
100 - 250 VAC, 50/60 Hz single phase
Power consumption
715 W
Noise emission
45.4 dB (A) at 1 m (3.3 ft)
Length
68.5 cm (27”)
Width
18 cm (7”)
Height
30 cm (12”)
Weight
16.8 kg (37 lb)
Shipping weight
30.5 kg (67 lb) with flight case
Approval
CE certified, CSA and UL approved
