Analog Synth, Filter Bank, and Vocoder for Creative Sound Design
The
Moog Spectravox is a powerful and flexible semi-modular instrument that allows you to dive into sonic exploration. Whether used as a standalone synthesizer, a 10-band vocoder, or an analog filter bank, Spectravox offers endless possibilities for sound sculpting. With its rich analog sound, hands-on control, and extensive patch bay, it integrates seamlessly into any studio or live performance setup, providing everything from lush drones to animated tonal shifts and resonant modulation.
Moog Spectravox Competitive Differences
- 10-band analog vocoder with innovative spectral modulation
- CNC machine precision for a flawless fit
- Customizable signal processing with 36 patch points
- State-variable filters with morphing resonance for dynamic effects
- Inspired by the legendary Moog 907 Fixed Filter Bank
- Eurorack compatible and skiff-friendly
Moog Spectravox Description
The
Moog Spectravox is designed for sound creators who seek unparalleled control over spectral processing. Drawing inspiration from vintage Moog designs, Spectravox reimagines analog vocoding with its 10-band filter bank and a triangle wave LFO for sweeping, resonant modulation. Whether you're processing vocals, instruments, or any other audio source, Spectravox's combination of multiband filtering and real-time modulation creates rich textures and unpredictable sonic movement.
As a standalone synthesizer, Spectravox features a built-in analog oscillator and white-noise generator for deep, warm sound generation. Use the extensive patch bay to shape and manipulate sound or integrate it into your Eurorack system for even greater control. The versatility of Spectravox makes it ideal for adding analog warmth to digital instruments, performing creative spectral shifts, or achieving otherworldly vocoding effects. With its combination XLR and 1/4" input, you can connect various audio sources, transforming them into entirely new sonic landscapes.
Moog Spectravox Features
- 100% Analog Synthesizer, Vocoder, and Filter Bank
- 10-band analog vocoder with spectral processing
- 36 patch points for modular flexibility
- Includes power supply and patch cables
- Eurorack compatible and skiff-friendly
- Carrier/Program functionality for transforming external audio sources
Moog Spectravox Specifications
- Sound Generation: Analog
- Audio I/O:
- 1x Combo XLR-1/4" 3-Pin Balanced or Unbalanced Mono Mic/Line Input
- 1x 1/4" TRS Balanced or Unbalanced Mono Instrument/Headphone Output
- CV/Gate I/O:
- 16x 1/8" / 3.5 mm TS CV Input
- 1x 1/8" / 3.5 mm TS Trigger Input
- 19x 1/8" / 3.5 mm TS CV Output
- Patch Points:
- 17x 1/8" / 3.5 mm TS Input
- 19x 1/8" / 3.5 mm TS Output
- Power: 12V DC Power Adapter (Included), Eurorack compatible
- Eurorack Current Consumption: 450 mA on +12V rail
- Dimensions: 12.8" x 8.2" x 6.6" (32.5 x 20.8 x 16.8 cm)
- Weight: 3.3 lb (1.5 kg)
- Package Weight: 5.185 lb
- Box Dimensions: 14" x 8.6" x 6.5"
What's In The Box
- Moog Spectravox Synthesizer
- Power Supply
- Patch Cables
- Poster and Patch Overlays

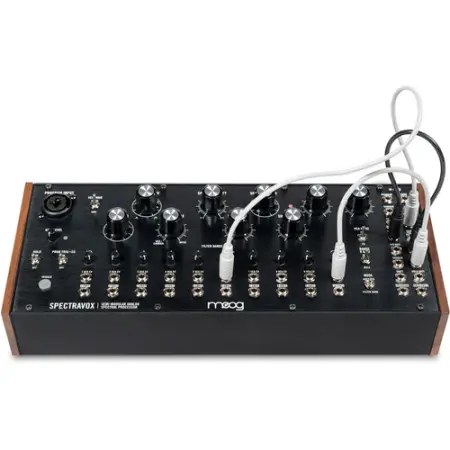

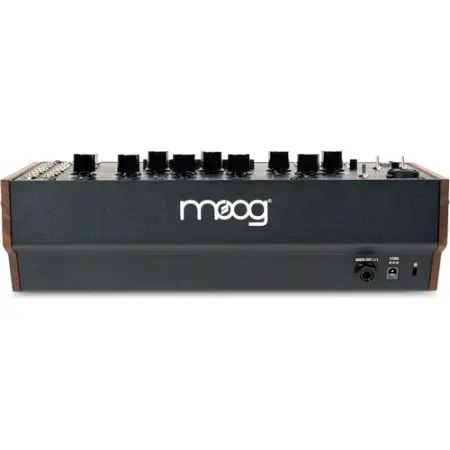

MOOG SPECTRAVOX
(Moog SEMI-MODULAR ANALOG SPECTRAL PROCESSOR)
