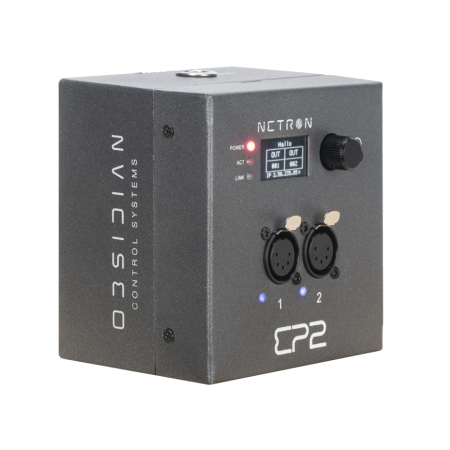

The Netron EP2 is a compact Ethernet to DMX gateway with two RDM compatible ports designed for wall mount, truss mount and standalone installations.
It is configurable via the integrated OLED display and encoder, or the internal web remote. EP2 is powered over Ethernet or via the convenient USB-C connection.
FEATURES:
RDM, ArtNet and sACN support
Factory and user presets for plug and play setups
POE or USB-C powered
1.3” OLED Display with rotary knob
Remote configuration via internal webpage
Powder-coated compact metal housing
Connect to ONYX PC for a full four Universe Solution

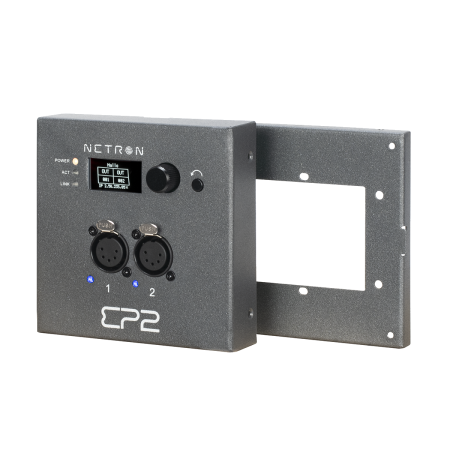

In-wall, On-Wall, Truss and Standalone mounting
Unlocks ONYX NOVA 4-Universe License
For all technical details and documentation for NETRON devices please visit
https://obsidiancontrol.com/netron
SPECIFICATIONS:
Mounting
Standalone (backbox included)
Truss-mount (M10 + M12 mounting hole)
In or On-wall 2-Gang (US) or 50mm round (EU)
Connections
Front
(2) 5pin DMX/RDM optically isolated ports
Ports are bidirectional for DMX In and Output
Side
(1) Locking RJ45 Ethernet network connections (POE)
USB-C power option (5V, 2A)
Physical
Length: 4.6 in. (117.6mm)
Width: 4.5 in. (114.0mm)
Height: 3.5 in. (89.1mm)
Weight: 1.76lbs. (0.8kg)
Electrical
USB-C 5V
POE 802.3af
Power Consumption 2.8W
