Studio Monitor Controller
The
Palmer MONICON L G2 is a professional-grade monitor controller designed for project studios, multimedia workstations, and high-end home setups. With Bluetooth, AUX, and balanced XLR/TRS inputs, plus three switchable outputs, it provides intuitive and latency-free control over your monitoring environment.
Palmer MONICON L G2 Competitive Differences
- Three selectable stereo inputs including Bluetooth 5.3 and AUX
- Three outputs (2 stereo, 1 mono) with independent switching and headphone PFL
Palmer MONICON L G2 Description
The
Palmer MONICON L G2 brings advanced signal management and transparent monitoring to any studio setup. It supports a wide range of sources — from professional audio interfaces to mobile devices — through its three stereo inputs: balanced XLR/TRS combo jacks, AUX RCA inputs, and Bluetooth 5.3 with SBC codec support.

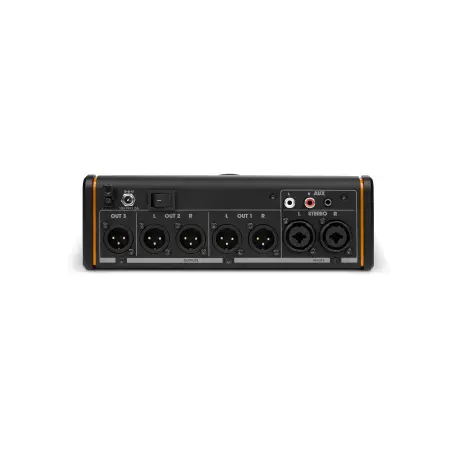

Its output section includes two stereo monitor feeds and one mono subwoofer or speaker out, all on balanced XLR connectors. Each output can be independently engaged using backlit buttons, allowing flexible routing between multiple monitor configurations.
A large analog volume knob ensures precise level control without compromising signal fidelity, while MONO, DIM, and MUTE functions provide fast, tactile monitoring adjustments. The dedicated headphone output features its own volume control and PFL (Pre-Fade Listen) switch, enabling isolated listening of input sources without affecting the main mix — a powerful tool for referencing or troubleshooting.
While the MONICON L uses an external power supply to drive Bluetooth and headphone functions, the audio signal path remains completely analog. This ensures zero-latency playback and an uncolored listening experience. Housed in a durable steel and aluminum chassis, it’s a reliable, ergonomic addition to any studio desk.
Model Features
- Three inputs: Balanced XLR/TRS, AUX (RCA), and Bluetooth 5.3
- Two stereo and one mono balanced XLR outputs
- Large precision analog volume control
- Independent headphone output with PFL and volume control
- MONO, DIM, MUTE, and source/output switching with LED indicators
- Latency-free analog signal path
Model Specifications
- Frequency Response: 20 Hz – 20,000 Hz (±0.2 dB)
- Inputs: 2x XLR/TRS combo, 2x RCA (Stereo), Bluetooth 5.3 (SBC)
- Outputs: 5x Balanced XLR (2 stereo, 1 mono), 1x Headphone 6.3 mm TRS
- Max Output Level: 20 dBu
- Input Impedance: 20 kΩ (balanced), 10 kΩ (unbalanced)
- Output Impedance: 600 Ω
- Signal-to-Noise Ratio: 112 dB (A-weighted)
- Dynamic Range: > 115 dB
- THD+N: ≤ 0.001%
- Crosstalk: -79 dB
- Headphone Output: 100 mW @ 10 Ω min impedance
- Power Supply: External switched-mode (SMPS)
- Dimensions: 8.58 x 2.99 x 4.88 in (218 x 76 x 124 mm)
- Weight: 2.0 lb (910 g)
What's In The Box
- Main unit

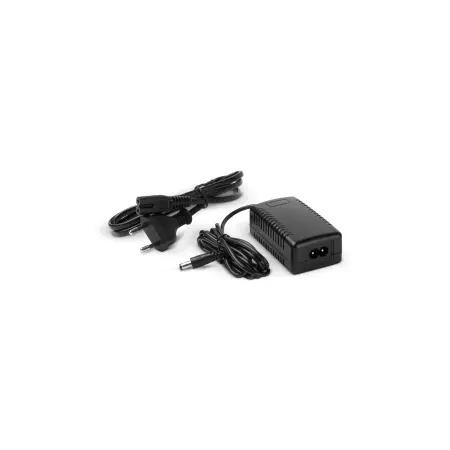

- External power supply
PALMER MONICON L G2
(Palmer MONICON L)
