Passive Monitor Controller
The

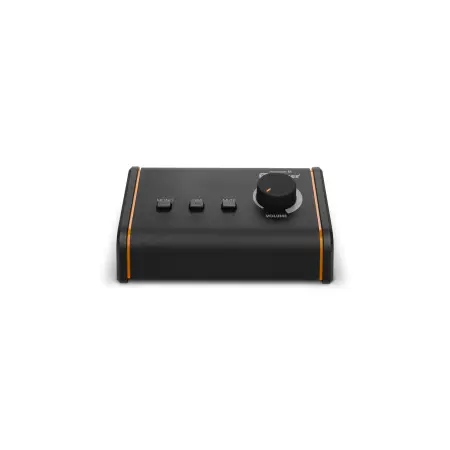

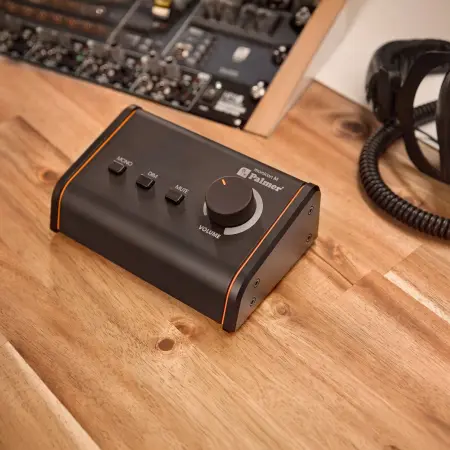

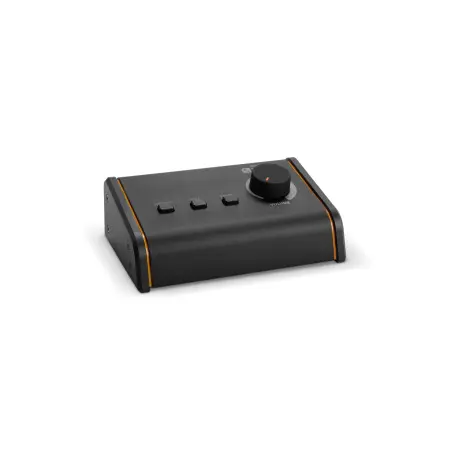

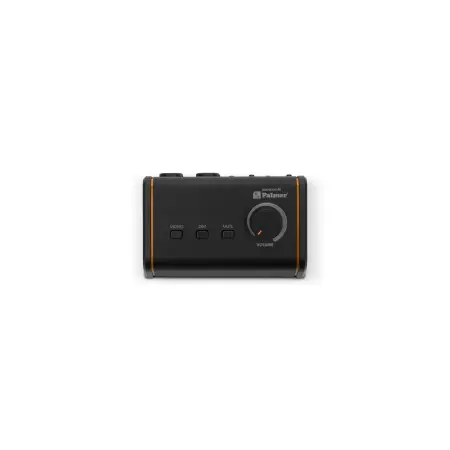

Palmer MONICON M G2 is a compact passive volume controller designed to manage audio monitoring in professional and project studio setups. It provides precise, tactile level control and intuitive monitoring features, all while preserving pristine sound through a fully analog, latency-free signal path.
Palmer MONICON M G2 Competitive Differences
- Multiple I/O options: Balanced XLR/TRS and 3.5mm input and output
- Mono, Dim, and Mute buttons for fast and flexible monitoring control
Palmer MONICON M G2 Description
The
Palmer MONICON M G2 serves as a central monitoring controller for multimedia workstations, editing suites, and home studios that demand reliable, accurate volume control. It features one stereo input via XLR/TRS combo jacks and a 3.5mm stereo input, making it easy to integrate with both professional audio interfaces and mobile devices.

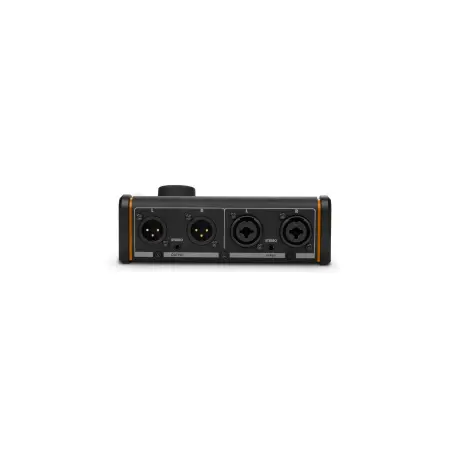

Output options include balanced XLR for studio monitors and a 3.5mm jack for portable speakers or headphones. The large, analog rotary knob provides precise level control without degrading audio quality, while the Mono, Dim, and Mute switches offer immediate control over your monitoring environment.
Built from steel and aluminum with a compact footprint, the MONICON M G2 is engineered for durability and space-saving integration. Whether you're mixing, editing, or just listening, it offers clean signal management without coloration or latency.
Model Features
- Passive design with analog signal path
- Large precision volume control
- Mono, Dim, and Mute functions
- Stereo input via XLR/TRS combo and 3.5mm jack
- Stereo output via XLR and 3.5mm jack
Model Specifications
- Inputs: 1x Stereo XLR/TRS Combo, 1x Stereo 3.5mm TRS
- Outputs: 1x Stereo XLR, 1x Stereo 3.5mm TRS
- Input Impedance: 20 kΩ (balanced), 10 kΩ (unbalanced)
- Output Impedance: 600 Ω
- Max Output Level: 20 dBu
- Min. SNR: 112 dB (A-weighted)
- Dynamic Range: > 115 dB
- Crosstalk: -79 dB
- Frequency Response: 20 Hz – 20,000 Hz (±0.2 dB)
- Dimensions: 6.3 x 2.44 x 4.17 in (160 x 62 x 106 mm)
- Weight: 1.06 lb (480 g)
What's In The Box
PALMER MONICON M G2
(Palmer MONICON M)
