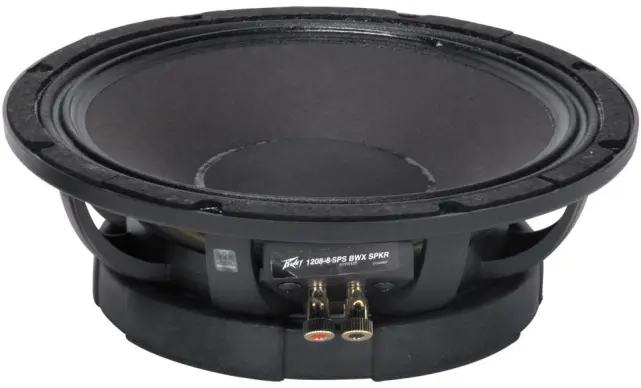

Peavey 1208-8 SPS BWX (Peavey 1208 8 SPS BWX)
Overview
1208-8 SPS BWX
Features
Impedance: 8 Ohms
Power capacity: 2000 W Peak 1000 W Program 500 W Continuous
Sensitivity: 96.9 dB / 1 W 1 m
Usable freq. range: 50 Hz ~ 3.5 kHz
Cone: Kevlar® impregnated cellulose
Voice coil diameter: 4.0" / 100 mm
Voice coil material: Aluminum ribbon wire Polyimide-impregnated fiberglass
former Nomex® stiffener Solderless diffusion welded OFHC copper leads
Net weight lb. / kg: 16 lbs. / 7.3 kg
Znom (ohms) 8
Revc (ohms) 5.43
Sd (Square Meters) 0.052
BL (T/M) 15.13
Fo (Hz) 56.1
Vas (liters) 54.6
Cms (uM/N) 142.2
Mms (gm) 50.70
Qms 9.51
Qes 0.448
Qts 0.428
Xmax (mm) 4.70
Le (mH) 0.36
SPL (1W 1m) 96.9
No (%) 3.10%
Vd (cu. in. / ml) 29.8 / 488
Pmax (Watts pgm.) 1000
Disp (cu. in. / ml) 109 / 1797
12"
Weight Unpacked: 16.00 lb(7.257 kg)
Weight Packed: 18.87 lb(8.561 kg)
Width Packed: 15"(38.1 cm)
Height Packed: 16"(40.64 cm)
Depth Packed: 7"(17.78 cm)
