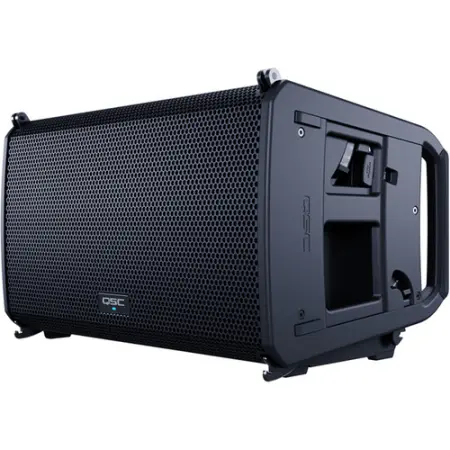

Audio professionals looking for a next-generation intelligent line array system will be impressed with the QSC LA 112, an active line array loudspeaker module featuring a brilliant combination of cutting-edge innovation, refined engineering, and unparalleled ease of use in an easy-to-deploy package, well suited for live venues, fixed installations, mobile entertainers, AV rental, and event production.

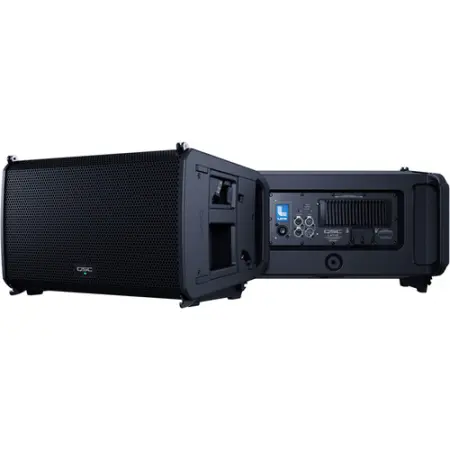

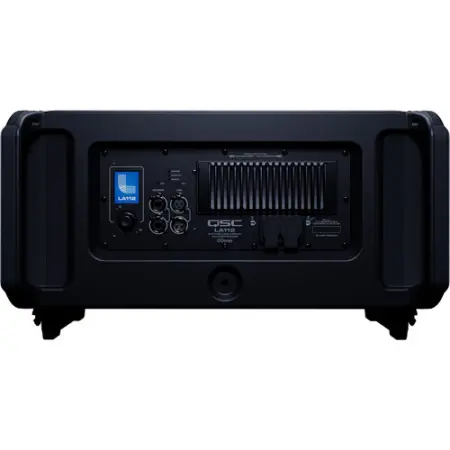

The LA112 utilizes a 2400W Class-D amplifier module, which delivers 1600W to the 12" woofer and 800W to the 1.75" compression driver for a combined frequency response of 58 Hz to 20 kHz with a max SPL of 136 dB. The rear panel features a 2.4" full-color display with rotary push-button for setting up speaker configurations and fine tuning the sound. There two 3-pin XLR connectors, powerCON True 1 I/O connectors, and two RJ45 etherCON network I/O connectors that are Dante and QSC SysNav compatible. The LA 112 includes a powerCON TRUE 1 power cord.
FEATURES:
Purpose-designed lightweight neodymium transducers deliver high undistorted SPL (136 dB peak)
Energy efficient Class-D amplifier modules (2400W peak power) with Power Factor Correction and extremely low AC consumption
Innovative QSC LEAF (Length-Equalized Acoustic Flare) waveguide provides defined uniform coverage and exceptional throw
Intuitive single operator QSC RapidDeploy rigging technology with short-, medium-, and long-throw options, guarantees fast deployment without tools or additional hardware
Onboard QSC AWARE (Automatic Wireless Array Recognition) system intelligence communicates essential setup information to the user via any loudspeaker’s Rear User Interface (RUI) or QSC SysNav App
QSC SysNav (System Navigator) App allows the user to easily design, configure, control, monitor and apply signal processing to individual loudspeakers, full arrays or groupings of both. The AIM (Array Installation Modeling) prediction tool lets the user visualize array coverage by positioning virtual loudspeakers and arrays in a scaled, graphical model of a venue or installation space
Network solution includes digital audio-over-IP (Dante) for interoperability with other audio equipment and seamless control and monitoring integration into the Q-SYS Ecosystem via Q-SYS Inventory Extensions
Acoustic Linear Phase (ALP) design provides complementary coherence between QSC loudspeakers deployed in the same audio system delivering a uniform listening experience across the entire venue
Complemented by optional LS118, networked, single 18" active subwoofer
Flown (up to six units with array frame), ground-stacked (up to three LA 112 over a single LS 118 subwoofer) or loudspeaker stand/pole mounting (up to two LA 112) deployment options.
6-year extended warranty with product registration
SPECIFICATIONS:
Configuration Active 2-Way
Enclosure Type Bass-Reflex Line Array
Total Power Capacity 2400 W
Amplifier Power Rating LF:
1600 W
HF:
800 W
Amplifier Class Class-D
Drivers
HF Driver 2 x 1.75" / 44 mm Compression Driver
MF Driver None
LF Driver 1 x 12" / 30.5 cm Woofer
Performance
Frequency Range 53 Hz to 20 kHz -10 dB
Frequency Response 58 Hz to 20 kHz -6 dB
Maximum SPL 136 dB (Peak)
Coverage Angle 90° H x 15° V
Connectivity
Audio I/O 1 x XLR 3-Pin Line Input
1 x XLR 3-Pin Line Thru
Network I/O 2 x RJ45 (Control/Dante/Network) In/Out
USB None
Wireless Connectivity None
Mobile App Compatible Yes: iPadOS Only
App Name: QSC SysNav
*As of March, 2023: Check with manufacturer for the most up-to-date compatibility
Signal Processing
Filters High-Pass
Dynamic Processing Limiter
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
AC Power I/O 1 x powerCON Input
1 x powerCON Output
Current Consumption 100 VAC:
1.8 A (1/8 Power)
120 VAC:
1.5 A (1/8 Power)
230 VAC:
1 A (1/8 Power)
Physical
Mounting M10 Fly Point (Rear)
1 x Pole Socket (Dual Angle, Bottom)
Cooling Convection
Environmental Protection None
Construction Material ABS, Metal Grille
Dimensions 24.8 x 16.4 x 15.4" / 629.9 x 416.6 x 391.2 mm
Weight 47.2 lb / 21.4 kg
Packaging Info
Package Weight 59.2 lb
Box Dimensions (LxWxH) 26.5 x 20.25 x 18.25"
