This package includes:
Powerful and Portable Column Array PA System with Secure Transport

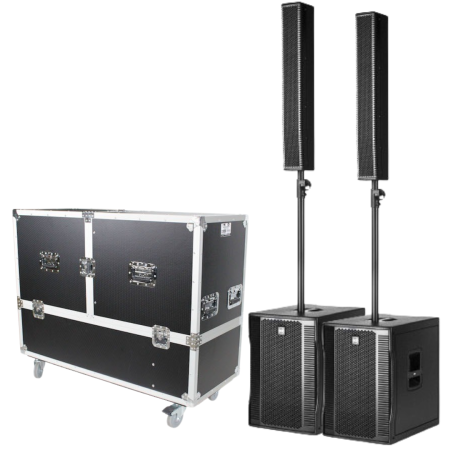

The RCF Evox 12 Pair with Dual Flight Case is a complete professional audio solution designed for superior sound reinforcement and easy portability. Featuring two RCF Evox 12 column array systems and a ProX X-EVO1250X2W dual flight case, this package is perfect for DJs, live performers, corporate events, and touring professionals who demand high-quality sound and reliable protection.
RCF Evox 12 Pair Competitive Differences
- Powerful 1400W Active PA System – Each RCF Evox 12 delivers 130 dB SPL with a wide 90° x 30° coverage pattern.
- Superior Sound Quality – Features eight 4” neodymium full-range drivers and a 15” high-excursion subwoofer for deep bass and clear highs.
- Portable and Easy to Set Up – Lightweight design with pole-mountable configuration for quick deployment.
- Innovative DSP Processing – Advanced digital signal processing ensures optimal sound performance.
- Rugged and Secure Transport Case – The ProX X-EVO1250X2W dual flight case provides reinforced protection with a high-density foam interior and durable hardware.
- Built for Professionals – Ideal for live music, DJs, corporate events, and mobile entertainment setups.
RCF Evox 12 Pair with Dual Flight Case Description
The RCF Evox 12 is a high-performance active column array system designed for professional-grade sound reinforcement. Its unique design includes a 15” woofer for deep and punchy bass, paired with eight 4” full-range neodymium drivers for pristine clarity and coverage. The system's Class-D amplifier delivers a total of 1400W peak power, ensuring powerful sound reproduction with a maximum SPL of 130 dB.
To enhance portability and protection, this package includes the ProX X-EVO1250X2W dual flight case. This ATA-300 style case is crafted from honeycomb-laminated 3/8” plywood, featuring industrial-grade recessed handles, heavy-duty steel ball corners, and built-in casters for easy transport. With a high-density foam interior, it safeguards your Evox 12 systems from impact, dust, and wear during transit.
RCF Evox 12 Features
- 1400W peak power, 700W RMS
- 130 dB max SPL
- 40 Hz – 20 kHz frequency response
- 15” high-excursion woofer
- 8 x 4” neodymium full-range drivers
- 90° x 30° slightly tilted pattern control
- Advanced DSP processing for superior audio performance
- Pole mountable for flexible setup options
RCF Evox 12 Specifications
- Acoustical:
- Frequency Response: 40 Hz – 20 kHz
- Max SPL: 130 dB
- Horizontal Coverage: 90°
- Vertical Coverage: 30°
- Transducers:
- 8 x 4” full-range drivers with 1.0” voice coil
- 15” woofer with 3.0” voice coil
- Input/Output:
- Balanced/unbalanced input signal
- XLR and Jack input connectors
- XLR output connectors
- Input sensitivity: -2 dBu / +4 dBu
- Processor Section:
- Crossover Frequency: 180 Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Volume, EQ
- Power:
- 1400W Peak (700W RMS)
- HF: 400W Peak, 200W RMS
- LF: 1000W Peak, 500W RMS
- Cooling: Convection
- Power Connections: VDE
- Physical Specs:
- Cabinet Material: Baltic birch plywood
- Color Options: Black or White (RAL 9003)
- Dimensions & Weight:
- Height: 86.61 inches (2200 mm)
- Width: 16.14 inches (410 mm)
- Depth: 22.05 inches (560 mm)
- Weight: 80.25 lbs (36.4 kg)
- Shipping Information:
- Package Height: 25.04 inches (636 mm)
- Package Width: 18.07 inches (459 mm)
- Package Depth: 24.13 inches (613 mm)
- Package Weight: 96.76 lbs (43.89 kg)

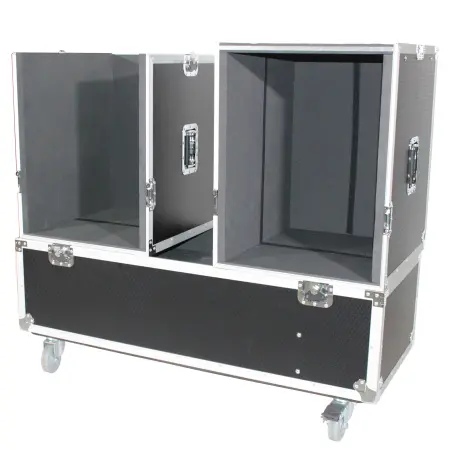

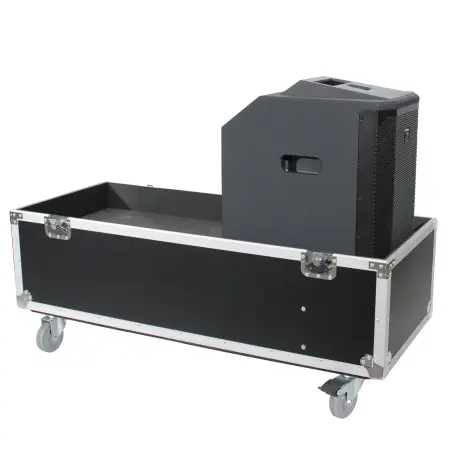

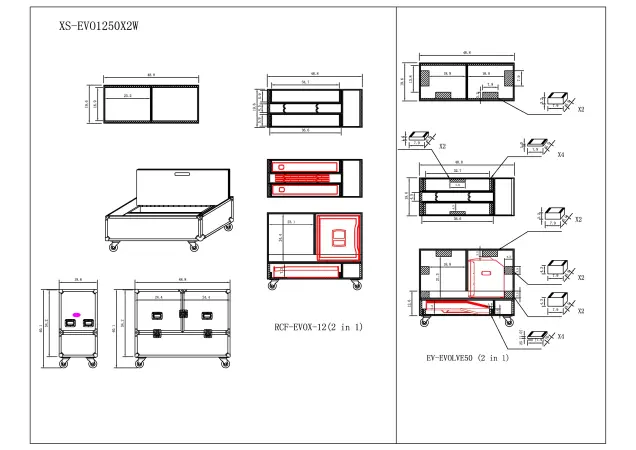

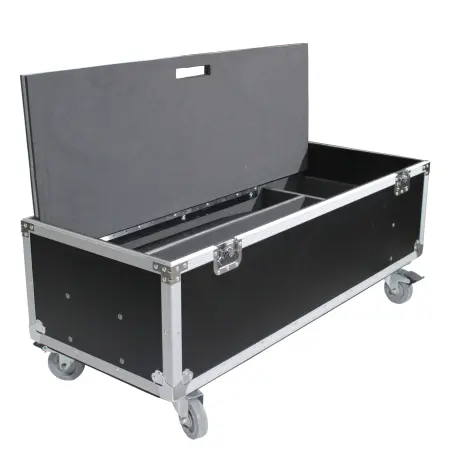

ProX X-EVO1250X2W Flight Case Features
- ATA-300 Style Flight/Road Case
- Signature Honeycomb Digital™ Laminated 3/8” Plywood
- Heavy-duty steel ball corners & dual anchor rivets
- Recessed butterfly twist-lock latches (padlock-ready)
- High-density foam interior for superior protection
- Spring-action rubber grip recessed handles
- Aluminum tongue-and-groove fit for secure closure
- 4” industrial-grade casters (2 locking)
What’s in the Box?
- (2) RCF Evox 12 Active Column Array Systems
- (1) ProX X-EVO1250X2W Dual Flight Case
RCF USA Dual Evox 12 with Flight Case
(RCF Evox 12 Pair with Flight Case)
