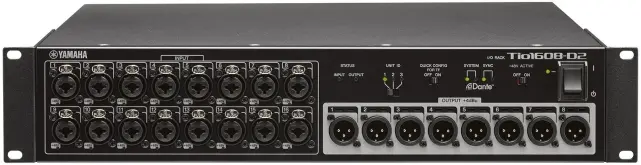

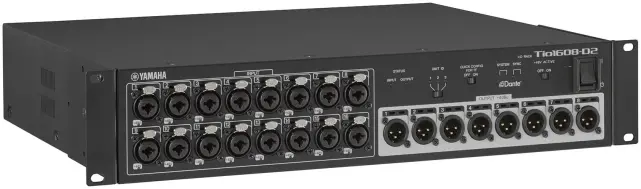

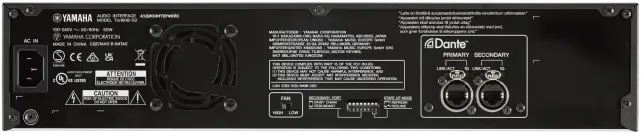

The Tio1608-D2 is a 96kHz capable Dante-equipped I/O rack with 16
microphone/ line inputs and 8 line outputs. A stage box system
can be used with DM3-D and other Yamaha digital consoles. The D2 version features low latency & 96kHz converters. Not only can the Yamaha digital consoles control Tio1608-D2's internal preamp, the Auto Setup feature enables setup with minimal effort.
FEATURES:
"
Renowned Yamaha sound quality with 96kHz sample rate
3U size, 16 inputs and 8 outputs.
Dante network protocol contributes to greater system scalability and flexibility
Supports QUICK CONFIG Mode for DM3 and TF series
Automatic digital-stage compensation for analog gain changes (CL/QL series only)
Recallable D-PRE preamplifiers"
SPECIFICATIONS:
Sampling frequency rate External 44.1kHz, 48kHz, 88.2kHz, 96kHz
Buses 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Input to Matrix supported)
Signal delay Less than 1.3ms INPUT to OUTPUT, connect with DM3, Dante Receive Latency set to 0.25ms (one way), Fs=96kHz; Less than 2.6ms INPUT to OUTPUT, connect with DM3, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz
Total harmonic distortion Less than 0.2% +4 dBu@20Hz-20kHz into 600Ω, Gain=+66 dB / Less than 0.05% +4 dBU@20Hz-20kHz into 600Ω, Gain=-6 dB, INPUT to OUTPUT, Fs=88.2kHz, 96kHz; Less than 0.1% +4 dBu@20Hz-20kHz into 600Ω, Gain=+66 dB / Less than 0.05% +4 dBU@20Hz-20kHz into 600Ω, Gain=-6 dB, INPUT to OUTPUT, Fs=44.1kHz, 48kHz *Measured with a -18 dB/octave filter @80kHz
Frequency response +0.5, -1.5 dB 20Hz-20kHz, refer to the nominal output level @1kHz, INPUT to E14
Dynamic range 108 dB, INPUT to OUTPUT, Gain=-6 dB / 110 dB, DA Converter, Fs 96kHz; 108 dB, INPUT to OUTPUT, Gain=-6 dB / 112 dB, DA Converter, Fs 48kHz
Hum & noise level Equivalent input noise -128 dBu, Gain=+66 dB, Fs 96kHz, 48kHz *Measured with A-weighting filter
Residual output noise -86 dBu, Fs 96kHz / -88 dBu, Fs 48kHz, ST main off *Measured with A-weighting filter
Crosstalk -100 dB, adjacent INPUT/OUTPUT channels, Input Gain = -6 dB *Measured with a -30 dB/octave filter @22kHz
Heat dissipation 100-240V, 50/60Hz, 43.5kcal/h
Power requirements 50W
Dimensions W 18.9 inches (480 mm)
H 3.5 inches (88 mm)
D 14.4 inches (364 mm)
Net weight 12.6 lbs. (5.7 kg)
Accessories Owner’s Manual, Power Cord (2.5m), Rubber stoppers (4)
Others Temperature Range: Operating temperature range: 0 - 40℃, Storage temperature range: -20 - 60℃
