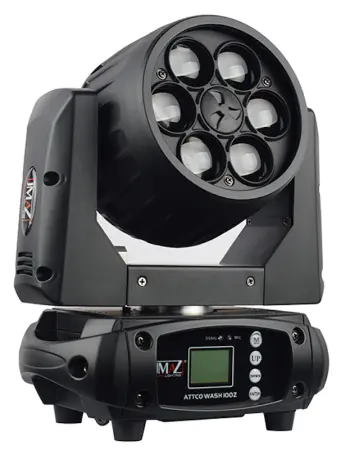

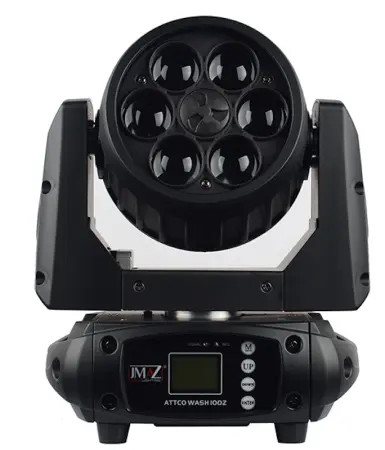

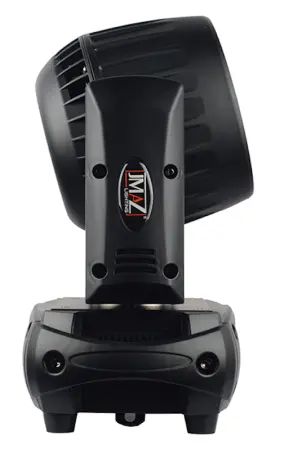

JMAZ ATTCO Wash 100Z | 90W LED Moving Head Zoom/Wash
The JMAZ ATTCO Wash 100Z is a versatile and compact moving head wash fixture perfect for professional lighting setups. Equipped with 6 x 15W RGBW LEDs, this fixture delivers vibrant colors and smooth, precise lighting effects. The 6°-60° electronic linear zoom allows for a wide range of wash effects, making it ideal for stages, clubs, and events.
Main Features

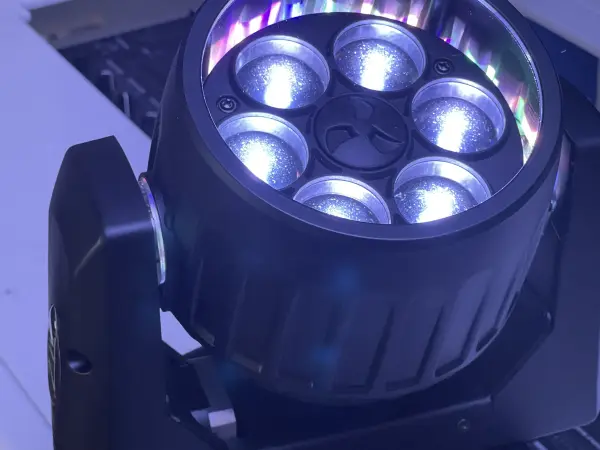

- 6 x 15W Quad RGBW LEDs
- 6-60° Smooth Electronic Linear Zoom
- Built-in Color and Graphic Effect Macros
- 4 Operating Modes: Sound Active, Show Mode, DMX Controlled, and RF Remote Control
Technical Specifications
- Light Source: 6 x 15W RGBW LEDs
- Color System: RGBW LEDs
- Body: High Temperature Engineered Plastic and Cast Aluminum Casing
- Pan Angle: 630°
- Tilt Angle: 270°
- Pan/Tilt Resolution: 8 / 16 Bit
- Feedback: Scan position memory, auto reposition after unexpected movement
- Dimmer: 0-100% Linear Dimmer
- Operating Temperature: -35°C to 45°C
- Mains Power Supply: AC Mains
- Max Power Consumption: 120W
- Input Voltage: 110-240V, 50HZ/60HZ
- Zoom: 6° to 60°
- Dynamic Effect: Flat Beam Field, Strobe Effect, Zoom Wash Effect
- Control Protocols: DMX512
- DMX Channels: 13/15 Channel Modes
- Wireless Control: RF Remote
- Display: 2.4″ TFT LCD Display
- Firmware Upgrade: Yes, USB-DMX Interface (not included)
- IP Rating: 20
- Cooling: Fan

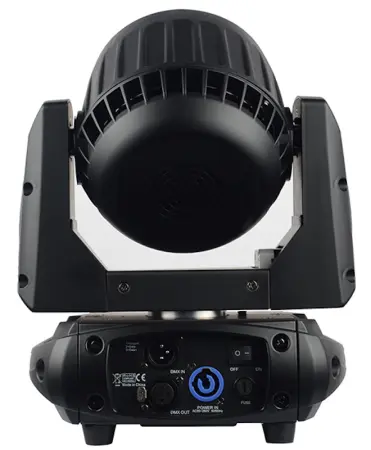

- Data Connection: DMX
- Power Connection: Power-CON
- Dimensions: 11.4″ x 8.3″ x 8.7″
- Weight: 7.7 lbs
What's in the Box
- 1 x ATTCO Wash 100Z
- 1 x User Manual
- 2 x Omega Brackets
- 1 x 3ft 3-pin DMX Cord
- 1 x 3ft PowerCON Cord
- 1 x RF Remote
Jmaz Lighting ATTCO WASH100Z
(JMAZ JZ3007)
