BrightBox BB1035

Curved Mobile LED Video Wall Panel

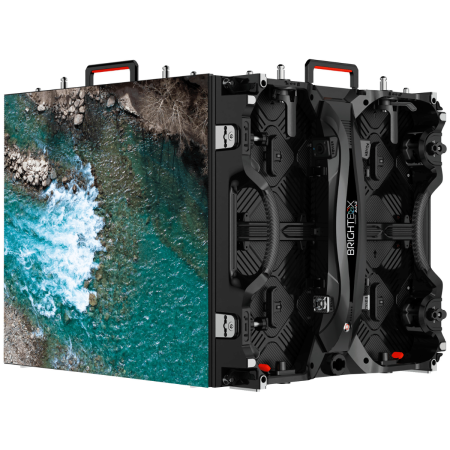

The BrightBox BB1035 is a 500 x 500 mm mobile LED video wall panel designed for detailed indoor displays and flexible curved configurations. Its fine 1.9 mm pixel pitch, 256 x 256 pixel resolution, 1200-nit brightness, and high refresh rate deliver sharp visuals for live events, corporate productions, houses of worship, exhibits, broadcast applications, and stage installations.

BrightBox BB1035 Competitive Differences

• Fine 1.9 mm pixel pitch produces detailed images for closer viewing distances
• Adjustable ±5-degree curvature supports flat, concave, and convex video wall configurations
• Refresh rate of at least 7,680 Hz provides smooth, camera-friendly video reproduction
• Swappable all-in-one power box simplifies servicing and component replacement
• Integrated corner protection helps protect vulnerable cabinet edges during handling
• Ships in a road case for transportation and mobile production use

BrightBox BB1035 Description

The BrightBox BB1035 Osiris Curve 1.9 combines a high-density LED layout with a compact modular cabinet. Each panel provides a 256 x 256 pixel resolution, allowing multiple panels to create seamless video walls with detailed text, graphics, presentations, and video content.

SMD2195 LEDs produce up to 1200 nits of brightness for vivid indoor visuals. The refresh rate of at least 7,680 Hz helps reduce visible flicker and scan lines when the display is captured by broadcast, cinema, livestream, and event-production cameras.

The cabinet supports adjustable angles from -5 to +5 degrees, giving production teams the flexibility to build flat, concave, or convex display surfaces. This makes the panel useful for immersive stage designs, curved presentation walls, exhibits, scenic installations, and creative event environments.

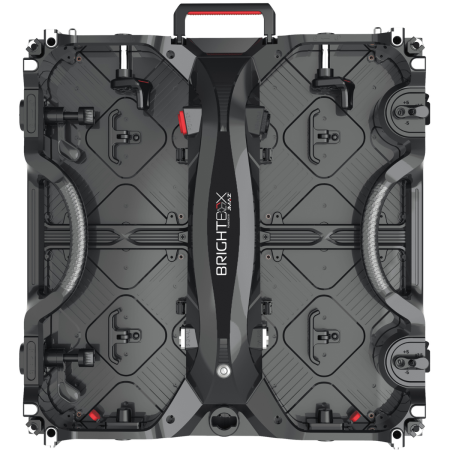

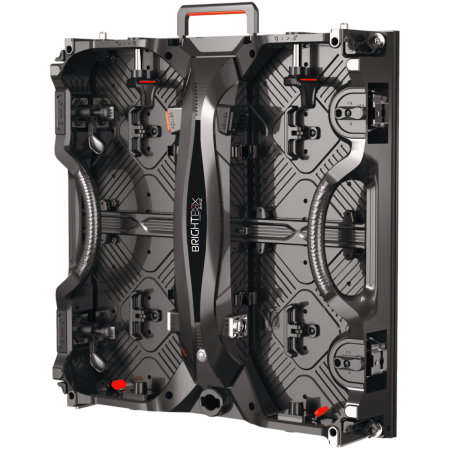

Designed for mobile production workflows, the panel features rear service access, corner protection, and a swappable all-in-one power box. Its 17.6 lb cabinet remains manageable during installation, while the included road case helps protect the panel during transportation and storage.

BB1035 Features

• 500 x 500 mm mobile LED video wall panel
• Fine 1.9 mm pixel pitch
• 256 x 256 pixel panel resolution
• 1200-nit brightness
• SMD2195 LED technology
• Refresh rate of at least 7,680 Hz
• Adjustable curvature from -5 to +5 degrees
• Supports flat, concave, and convex display configurations
• Rear-serviceable cabinet design
• Swappable all-in-one power box
• Integrated corner protection
• IP30-rated enclosure
• ETL, FCC, RoHS, and CE certified
• Designed for touring and mobile production applications
• Ships in a road case

BB1035 Specifications

• Product Series: Osiris Curve 1.9 Mobile
• Product Type: Curved mobile LED video wall panel
• Panel Size: 19.6 x 19.6 in (500 x 500 mm)
• Pixel Pitch: 1.9 mm
• Pixel Resolution: 256 x 256
• Total Pixels per Panel: 65,536
• Brightness: 1200 nits
• LED Type: SMD2195
• Refresh Rate: ≥7,680 Hz
• Curvature Range: ±5 degrees
• Service Access: Rear
• Ingress Protection Rating: IP30
• Panel Dimensions: 19.6 x 19.6 x 3.2 in (500 x 500 x 83 mm)
• Panel Weight: 17.6 lb (8.0 kg)
• Certifications: ETL, FCC, RoHS, and CE
• UPC: 618528599557

What's In The Box

• BrightBox BB1035 Osiris Curve 1.9 LED video wall panel
• Road case

BrightBox BB1035 (BrightBox Osiris Curve 1.9)
