JMAZ Electro Panel W8 4Pack with Charging Road Case is a compact battery-powered outdoor LED panel lighting package designed for mobile entertainers, production companies, rental providers, houses of worship, corporate event teams, and temporary installation use. With four RGB+Lime Electro Panel W8 fixtures, CRMX wireless DMX, IP65-rated construction, included 40° diffusers, barn doors, IR remotes, and a charging road case, this kit delivers flexible wireless lighting with streamlined storage, charging, and transportation.

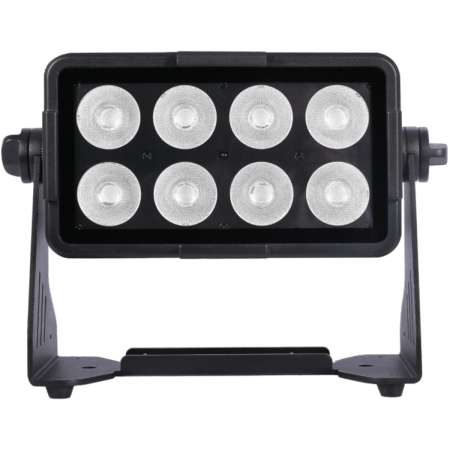

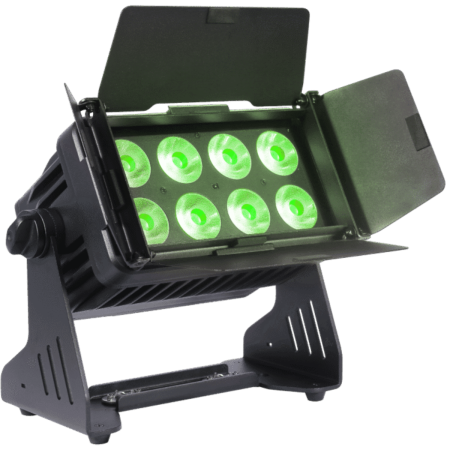

The JMAZ Electro Panel W8 4Pack with Charging Road Case is designed for event professionals who need a compact wireless lighting package that is easy to transport, charge, store, and deploy. Each Electro Panel W8 fixture uses 8 x 12W RGB+Lime LEDs for a 96W light engine, giving users flexible color mixing, adjustable white tones, and reliable output for uplighting, wall washing, stage accents, décor lighting, and temporary event installations.

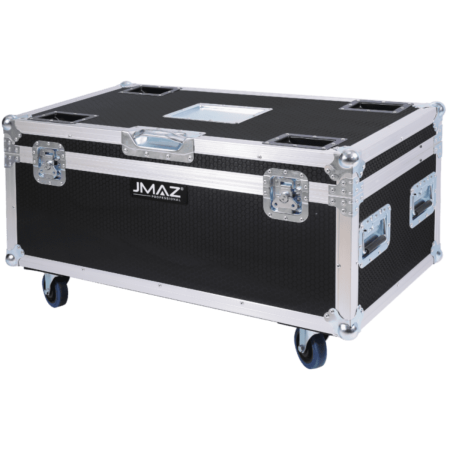

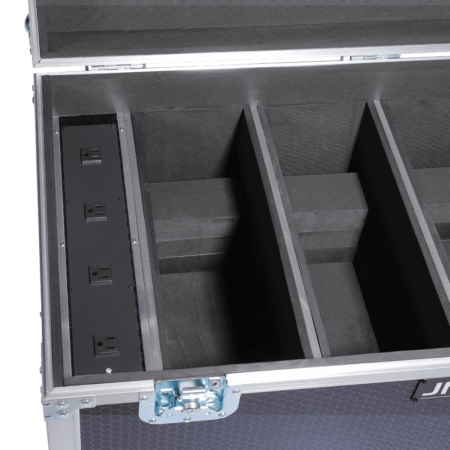

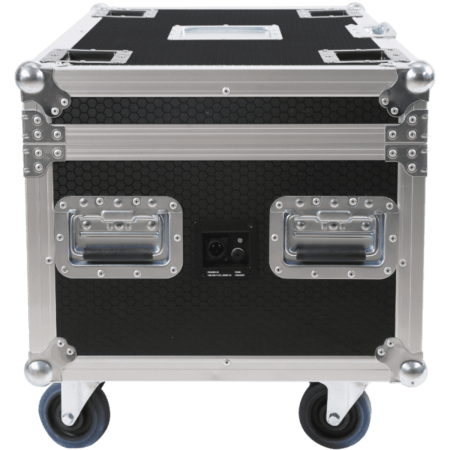

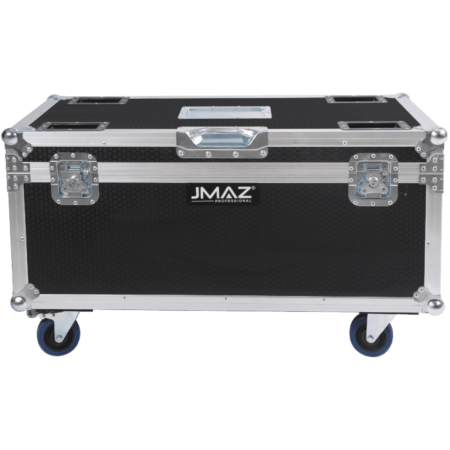

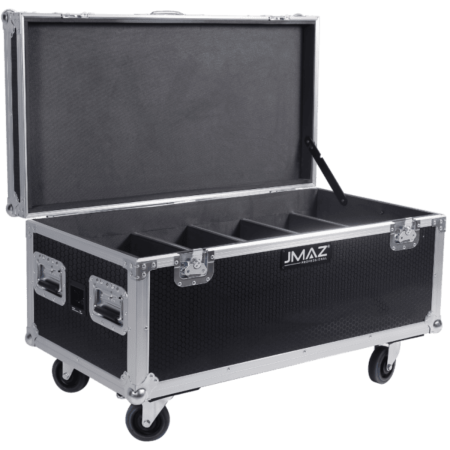

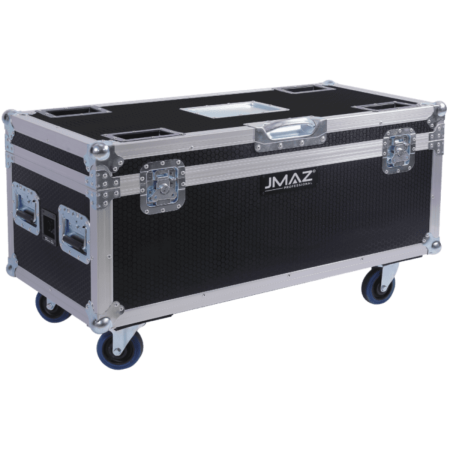

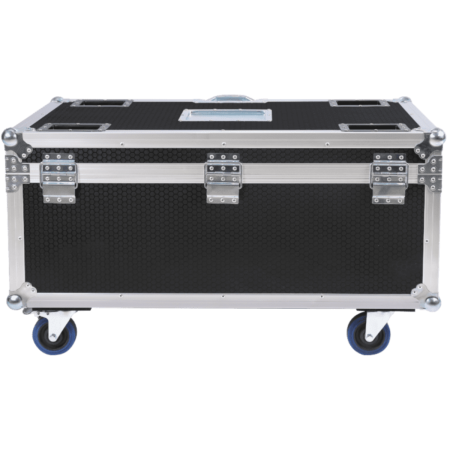

The included charging road case helps simplify event logistics by keeping all four fixtures organized and protected while allowing simultaneous in-case charging. This makes the package especially useful for rental inventories, mobile production crews, houses of worship, and corporate event teams that need fixtures ready for immediate use.
For control, the Electro Panel W8 supports CRMX by LumenRadio wireless DMX, IR remote operation, standalone color mixing, preset color temperatures, built-in programs, and multiple DMX personality modes. The OLED graphical display provides clear menu access, while electronic dimming, strobe, fading and jumping macros, and favorite color customization help adapt the fixtures to a wide range of show environments.

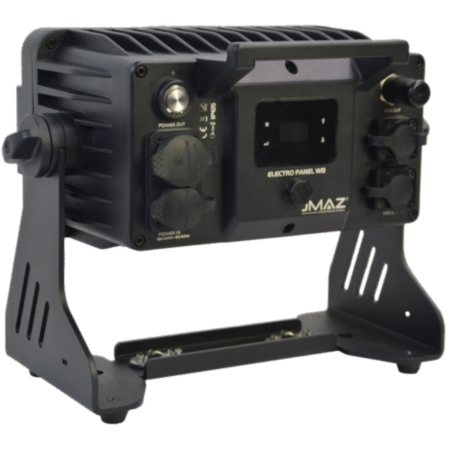

Built for professional indoor and outdoor use, the fixtures feature IP65-rated protection, fanless cooling, die-cast aluminum and steel construction, Seetronic Powercon IP65 True1 power input/output, and Seetronic 5-pin XLR data connections. With up to 16 hours of battery life, up to 40 hours in battery saving mode, and included 40° diffusers and barn doors, the JMAZ Electro Panel W8 4Pack is a practical lighting solution for portable and production use.
| App Control | Not specified |
| Control Interfaces | CRMX by LumenRadio wireless DMX, IR remote control, OLED graphical display |
| Onboard DSP | Not specified |
| Physical Controls | OLED graphical display, IR remote |
| Preset Storage | 73 preset color programs, 72 auto/fade built-in programs |
| Wireless Capabilities | CRMX by LumenRadio wireless DMX |
| Battery Life | Up to 16 hours hours |
| Beam Angle | 20° degrees |
| IP Rating | IP65 |
| LED Type | 8 x 12W RGB+Lime LEDs |
| Power Consumption | 120W W |
| Power Rating | 96W per fixture W |
| Voltage Range | 100V – 240V AC, 50/60 Hz V |
| Brand | JMAZ |
| Name | JMAZ Electro Panel W8 4Pack | RGBL Battery LED Panels | Charging Road Case Kit |
| SKU | JP2013 |
| Build Material | Die-cast aluminum and steel structure |
| Dimensions | 38.6 x 20.9 x 22 in inches |

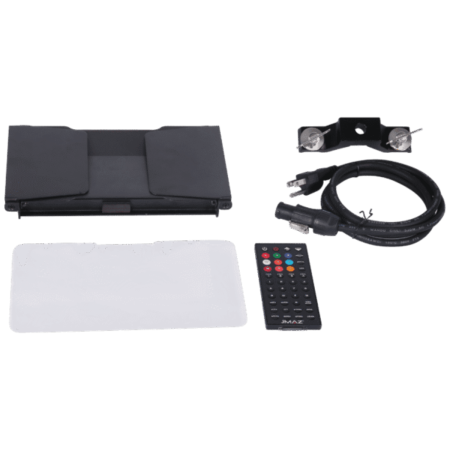

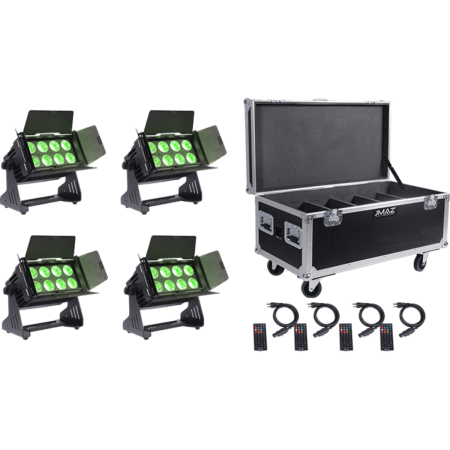

| Included Accessories | Charging road case, 4x Powercon IP65 True1 power cables, 4x IR remotes, 4x Barn doors, 4x 40° diffusers, Quick start guide, User manual |
| Mounting Options | Not explicitly specified |
| Weight | 145 lb lb |
| Color Mixing | RGB+Lime color mixing with CTO control from 2300K to 8500K |
| DMX Channel Modes | HSV, HSI, 3, 4, 6, 11, and 16-channel modes |
| Warranty Length | Not specified years |
