2 PHOTOS

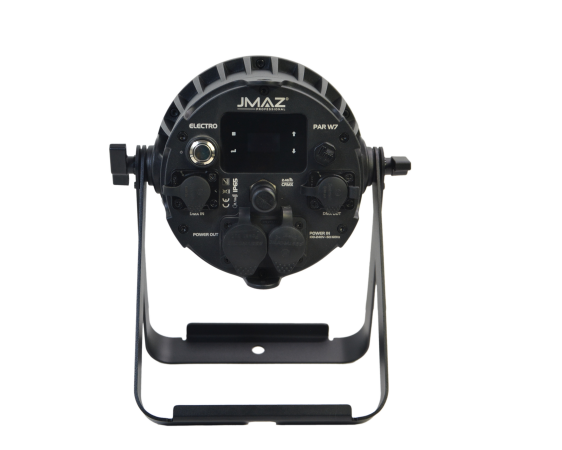

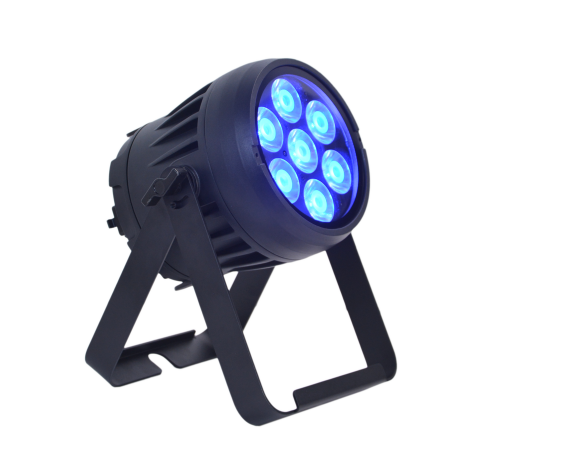

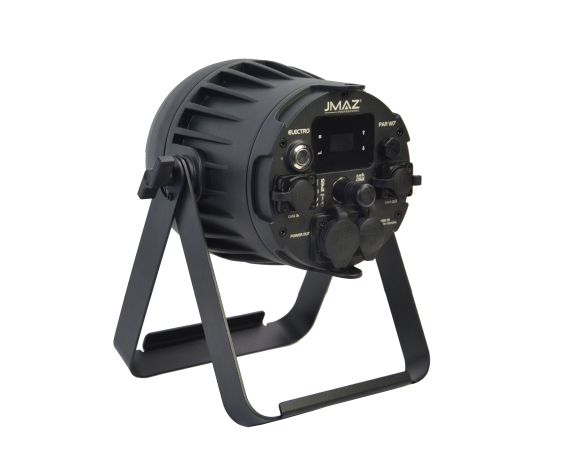

ELECTRO PAR W7
FEATURES:
84W (7 x 12W) RGB+L LEDs
15-Hour Battery with Battery Saving Options
Lumen Radio (CRMX) Wireless DMX and RDM
Built-In Preset Colors with Auto programs
IP65 Rating
SPECIFICATIONS:
Light Source
7 x 12W RGBL LEDs
LED Life Expectancy: 50,000 hrs
Color System
RGBL Color Mixing 32 bit
Color Temperature Range: 25000K -5600k
Fading/Jumping Macros
Body
Die-Cast Aluminum and Steel Structure
Exterior Finish: Black
Electronics
Linear LED Dimmer: 0-100% Smooth
Linear CTO: We NEED
Strobe Shutter: 0-25Hz
Dimming Modes: 4 Different Ones
Electrical
Input Voltage: 100 V – 260 V AC, 50 -60 Hz
Power Consumption: 84 W
Included 45ft Range, IR Remote
PWM: 1.5KHz
Power Linking for connecting fixture in daisy-chain
Up to 22 units @110V with a 20A circuit
Up to 40 units @208V with a 20A circuit
Up to 45 units @230V with a 20A circuit
Battery Voltage: 25.9 V,
Battery Capacity: 7,800 mAH, 202 Wh/hour
Built-In Charger: 29.4V, 5.5A
Battery Type: Lithium Ion
Run Time: Full On: 4 hrs 30 mins; Single Color: 15 hrs
Rechargeable: Yes
Charging Time: 4 Hours
Battery Life Selectable: 50%, 60%, 70%, 80%, 90%, 100%
Optics
Install Optic: 10 Degree
Filter 1 Beam Angle: 40 Degree
Filter 2 Beam Angle: 60 x 10 Degree
Filter 3 Beam Angle: 80 Degree
Dynamic Effect
64 Preset Color Macros
Stand Alone Color Mixing: Yes
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0-25 Hz
Dim Mode: 4
Built-In Automated Programs: Yes
Emergency Mode: Same W8
Control
Control Protocol: DMX, RDM
Wireless DMX: Lumen Radio (CRMX) with RDM
Personalities: 3/4/6/8/11 CH DMX Modes
Setting and addressing: OLED Graphical Display, RDM ANSI E2.20, Standalone Mode
Physical
IP Rating: 65
Cooling: Fanless
Power Connection: US Edison (UL Listed) plug to Seetronic Powercon IP65 True1
Power Input: Seetronic Powercon IP65 True1
Power Output: Seetronic Powercon IP65 True1
Data Connectors: Seetronic 5pin XLR
Cable Length: Power 5 feet (1.5 meter); DMX 5 feet (1.5 meter)
Dimensions: 9.3” x 6.7” x 11.1”
Weight: 10.1 lbs
Certification / Qualifications
RoHS, CE, FCC
IP Rating: IP 65
Operating Temperature: 40 ° C ( 104 °F)
Minimum Temperature: – 10 ° C ( 14 ° F)
Maximum Temperature: 60 ° C ( 140 ° F)
Box Content
1 x Electro Par W18
1 x Powercon IP65 TRUE1 Power cable
1 x 5 pin DMX Cable
1 x User Manual
1 x Omega Brackets
1 x Safety Cable
1 x IR Remote
