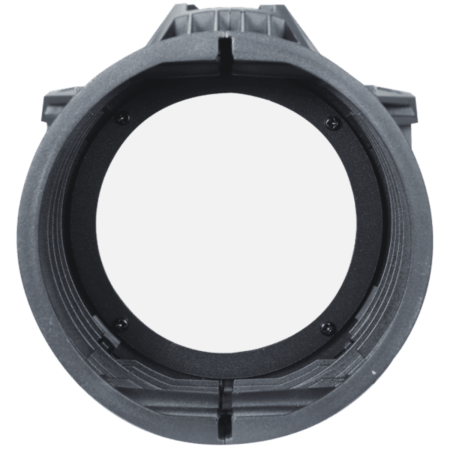

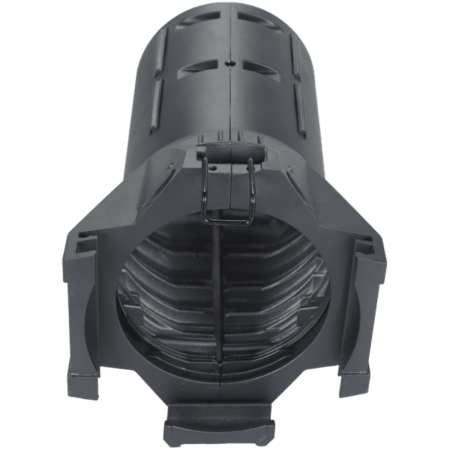

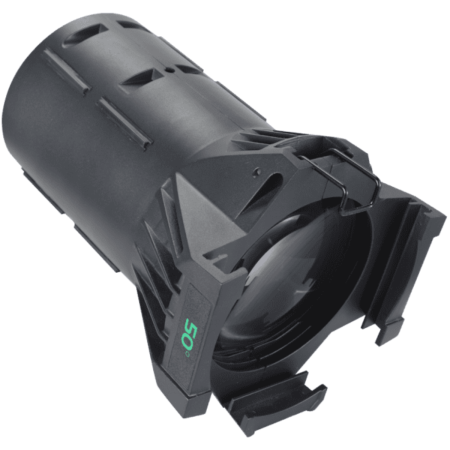

JMAZ Zona Profile 50 Lens

Ellipsoidal Lens Tube

JMAZ Zona Profile 50° Lens is a fixed-focus ellipsoidal lens tube designed to deliver bright output, sharp edge focus, and clean projection for wide coverage applications. Built for ZONA PROFILE fixtures and compatible with most standard ERS-style ellipsoidal luminaires, it gives lighting professionals a 50° beam option for theatrical, broadcast, worship, touring, and installation environments.

JMAZ Zona Profile 50° Lens Competitive Differences

• 50° fixed beam angle provides wide, controlled coverage for short-throw ellipsoidal lighting applications
• High-definition optical system supports bright output, sharp edge focus, and clean gobo projection
• Compatible with ZONA PROFILE fixtures and most industry-standard ERS-style ellipsoidal luminaires
• Dual precision optics improve beam consistency and image clarity across the entire projection field
• Rugged die-cast aluminum housing protects the optical assembly during transport, touring, and daily production use

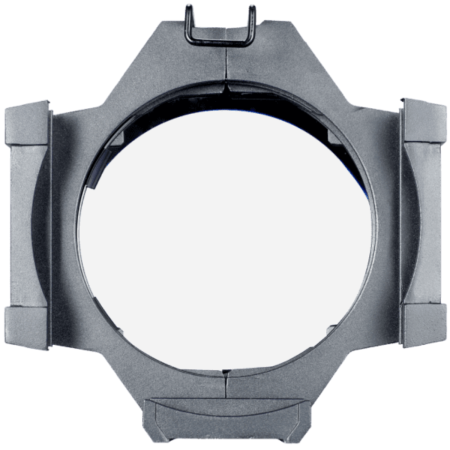

• Integrated gel frame holder allows quick installation of color filters or diffusion media
• Included gel frame supports fast setup for theatrical, broadcast, worship, and live production environments

JMAZ Zona Profile 50° Lens Description

The JMAZ Zona Profile 50° Lens is engineered to maximize the optical performance of ZONA PROFILE ellipsoidal fixtures while remaining compatible with most standard ERS-style fixtures. Its 50° beam angle is useful for short-throw front light, wide scenic coverage, studio key light, worship stages, broadcast sets, and installations where broader coverage is needed with controlled edges.

Designed with premium HD optics, this lens tube delivers sharp projections, excellent field uniformity, and strong optical clarity. The dual precision optical system helps maintain consistent beam performance from center to edge, making it a practical choice for gobo projection, scenic texture, theatrical looks, and clean wide-area illumination.

The rugged die-cast aluminum housing is built for demanding production environments, including theatres, houses of worship, broadcast studios, touring rigs, and permanent installations. Its black finish provides a clean stage-ready appearance, while the integrated gel frame holder makes it easy to add color or diffusion media.

For lighting designers and production teams that need dependable wide-angle projection in a durable accessory, the JMAZ Zona Profile 50° Lens offers optical clarity, reliable compatibility, and production-ready construction.

Zona Profile 50° Lens Features

• 50° fixed-focus ellipsoidal lens tube
• Designed for ZONA PROFILE Series fixtures
• Compatible with most standard ERS-style ellipsoidal luminaires
• High-definition optical system for bright output and sharp edge focus
• Clean gobo projection performance
• Dual precision optics for improved beam consistency and image clarity
• Excellent field uniformity across the projection area
• Dedicated focal length optimized for balanced brightness and consistent beam performance
• Rugged die-cast aluminum housing
• Black exterior finish
• Integrated gel frame holder
• Includes standard gel frame for color filters or diffusion media
• Built for theatrical, touring, broadcast, worship, live production, and installation environments

Zona Profile 50° Lens Specifications

• Product Type: Ellipsoidal lens tube
• Beam Angle: 50°
• SKU: JP4012
• Optical System: High-definition dual precision optics
• Compatibility: ZONA PROFILE Series and other standard ERS-style fixtures
• Housing: Rugged die-cast aluminum
• Finish: Black
• Gel Frame Holder: Integrated
• Dimensions: 6.85 x 6.85 x 9.9 in (174 x 174 x 253 mm)
• Weight: 4.4 lb (2 kg)

What's In The Box

• JMAZ Zona Profile 50° Lens tube
• Standard gel frame

JMAZ JP4012 (JMAZ Zona Profile 50 Lens)
